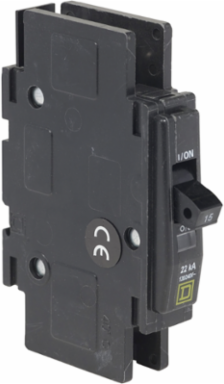

Square D QOU125VH Miniature Circuit Breaker 25A 1 Pole 120/240V 22kA
- MPN: QOU125VH
- UPC: 785901940661
- PPN: SCH-QOU125VH
CAD
$188.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 25A, 120/240VAC. This unit provides 22 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. QOU circuit breakers are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
Range Of ProductQOU
Product Or Component Typeminiature circuit-breaker
Complementary
- Height
- 4.05 in
- Tightening Torque
- 45-45 lbf.in AWG 14...AWG 2)
- Awg Gauge
- AWG 14...AWG 2 aluminum/copper
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [Ue] Rated Operational Voltage
- 120/240 V AC
Mounting Modeunit mount
[In] Rated Current25 A
Width0.75 in
Depth2.95 in
Environment
- Product Certifications
- IEC || UL listed || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant with Exemptions
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
