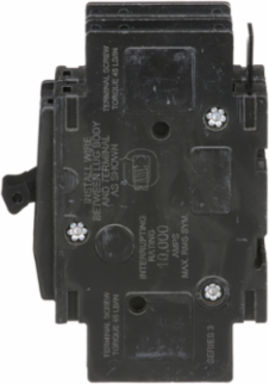

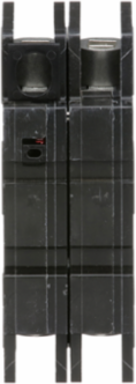

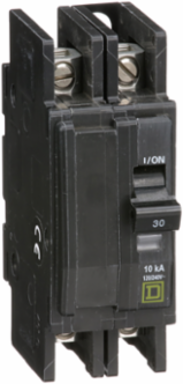

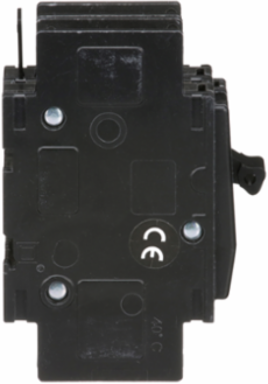

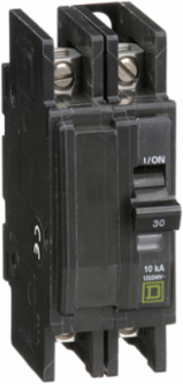

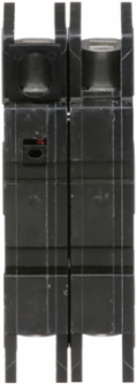

Square D QOU230 Mini Circuit Breaker 30A, 2 Pole, 120/240V AC, 10kA Breaking Capacity
- MPN: QOU230
- UPC: 785901418719
- PPN: SCH-QOU230
CAD
$290.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

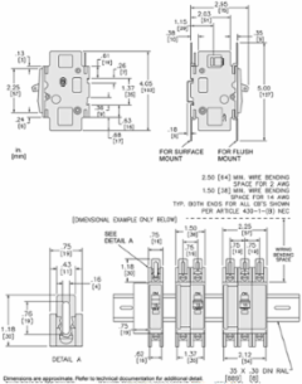

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 30A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 1.5 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
Features
- Featuring a unique, compact design, the QOU230 can be flush-mounted, surface-mounted, or snapped onto a standard DIN rail for maximum installation flexibility. This adaptability makes it the preferred choice for commercial HVAC equipment, control panels, and specialized OEM applications where a traditional load center is not present.
- This dual-pole thermal-magnetic breaker provides high-performance protection for 240V circuits, making it ideal for electric water heaters, air conditioning units, and small motor loads. Its precise trip mechanism ensures that both poles disconnect simultaneously during a fault, preventing dangerous "single-phasing" that can permanently burn out your sensitive electrical components.
- Equipped with the industry-leading Visi-Trip indicator, a high-visibility red flag appears in the window the moment the breaker trips. This feature allows maintenance technicians and facility managers to identify the faulted circuit from a distance, drastically reducing diagnostic time and allowing for faster system recovery in mission-critical environments.
- Designed with versatile "box-lug" terminals on both the line and load sides, this breaker supports flexible wiring configurations without the need for additional busbars or specialized hardware. This simplifies cable management in tight enclosures and speeds up the installation process for industrial electricians and panel builders working with #14 to #2 AWG copper or aluminum wire.
- Fully rated for 120/240V AC and carrying a 10k AIR (Amperage Interrupting Rating), the QOU230 meets stringent UL 489 and CSA safety standards. Choosing a Schneider Electric Square D component ensures your installation remains code-compliant, safeguarding your facility against fire hazards and electrical failures while maintaining your equipment's warranty and insurance standing.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Breaking Capacity
- 10 kA
- Circuit Breaker Type
- Standard
- Width
- 1.5 in
- Tightening Torque
- 45 lbf.in (5.08 N.m)
- Wire Gauge
- AWG 14 to AWG 2 aluminum/copper
- Product Certifications
- UL listed, CSA, IEC
- China Rohs Regulation
- Product out of China RoHS scope
- Halogen Content Performance
- Halogen free product
- Product Or Component Type
- Miniature circuit-breaker
- Sustainable Offer Status
- Green Premium product
Voltage120/240 V AC
Circuit Breaker ApplicationHACR rated
Height4.05 in
Depth2.95 in
Mounting ModeUnit mount
Electrical Connectionslotted box lugs, line side and load side
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant with Exemptions
Mercury FreeYes
Range Of ProductQOU
Reach RegulationContains Substances of Very High Concern above threshold
