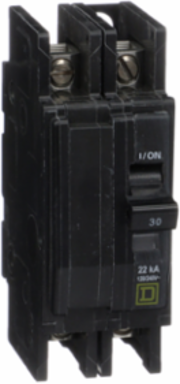

Square D QOU230VH Mini Circuit Breaker 30A 2 Pole 120/240V AC 22kA
- MPN: QOU230VH
- UPC: 785901559894
- PPN: SCH-QOU230VH
CAD
$434.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOU230VH, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.QOU breakers are able to operate up to 22 kA short ciruit current. .
Documentation & Downloads
Specifications
Additional
- Rated Current
- 30 A
- Circuit Breaker Type
- Standard
- Poles
- 2
- Tightening Torque
- 45 lbf.in (5.08 N.m)
- AWG Gauge
- AWG 14 to AWG 2 aluminum/copper
- Height
- 4.05 in
- Material
- N/A
- Toxic Heavy Metal Free
- Yes
- Compliance
- UL Listed, IEC, CSA
- China RoHS Regulation
- Compliant
- Sustainable Offer Status
- Green Premium product
Voltage120/240 V AC
Short Circuit Current Rating22 kA
Mounting ModeUnit mount
Electrical ConnectionSlotted box lugs, line side and load side
Width1.5 in
Depth2.95 in
Halogen Content PerformanceHalogen free
Mercury FreeYes
EU RoHS DirectiveCompliant with Exemptions
RoHS ExemptionYes
Country of OriginMexico
