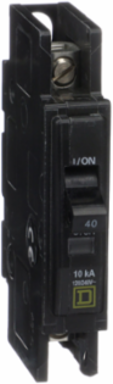

Square D QOU140 Mini circuit breaker, QOU, 40A, 1 pole, 120/240 VAC, 10kA
Square D QOU140 Mini circuit breaker, QOU, 40A, 1 pole, 120/240 VAC, 10kA
- MPN: QOU140
- UPC: 785901418597
- PPN: SCH-QOU140
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$127.40/ EA
Description
QO™ and QOU Miniature Circuit Breakers, QOU140, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Specifications
Environment
- Product Certifications
- CSA || IEC || UL listed
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 4.05 in
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [In] Rated Current
- 40 A
- Width
- 0.75 in
- [Ue] Rated Operational Voltage
- 120/240 V AC || 120 V AC || 48 V DC
Tightening Torque45-45 lbf.in AWG 14...AWG 2)
Mounting Modeunit mount
Awg GaugeAWG 14...AWG 2 aluminum/copper
Depth2.95 in
Specifications
- Range Of Product
- QOU
- Product Or Component Type
- miniature circuit-breaker
Circuit Breaker Typestandard
Circuit Breaker ApplicationHACR rated
