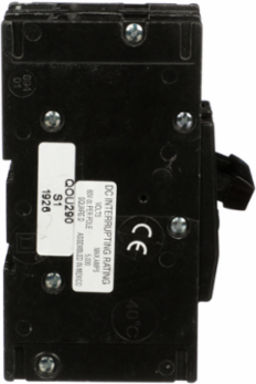

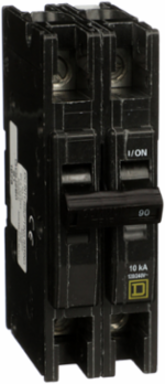

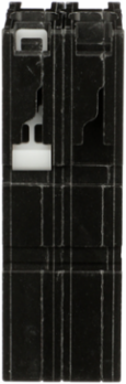

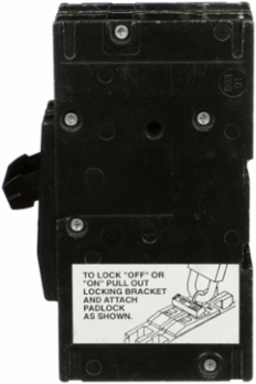

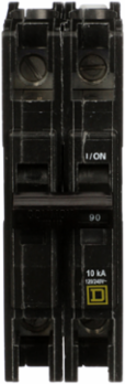

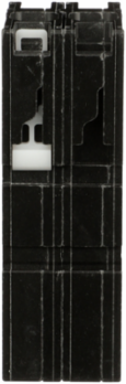

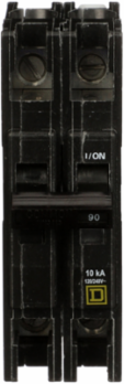

Square D QOU290 Mini Circuit Breaker 90A 2 Pole 120/240 VAC Unit Mount
- MPN: QOU290
- UPC: 785901060277
- PPN: SCH-QOU290
CAD
$615.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 90A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

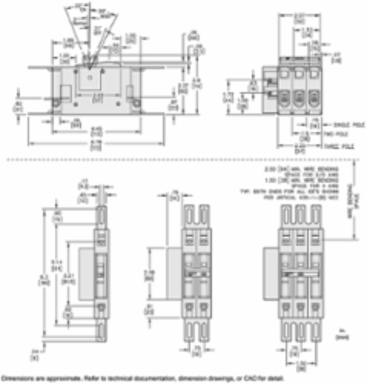

Depth2.95 in
Complementary Attributes
- Line Rated Current
- 90 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Electrical Connection
- slotted box lugs, line side, slotted box lugs, load side
- [Ue] Rated Operational Voltage
- 120/240 V AC, 120 V AC, 60 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0779447123
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.4914107953
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2P
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 20 kg CO2 eq.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 24.8784
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Width Nominal
- 1.5 in
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 426.376 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyUL Listed, CSA, IEC
Carbon Footprint Of The Distribution Phase [A4]0.0550124981, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0001065056, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]17 kg CO2 eq., 17.3042434783
Local Publishable Date2025-11-18
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg GaugeAWG 12...AWG 2/0 aluminium/copper
Circuit Breaker Typestandard
Mounting Modeunit mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQOU
Software VersionEIME v5.9.1
Tightening Torque45-45 lbf.in (AWG 12...AWG 2/0)
Pep CodeENVPEP2111016EN
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Height Nominal4.45 in
Short-circuit Current10 kA
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 19.9287179895
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2111016EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2111016EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQOU
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
