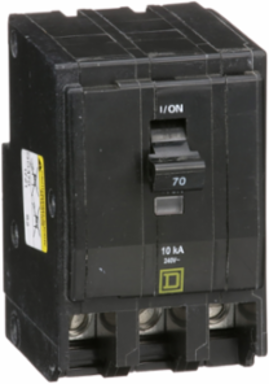

Square D QO370 Mini Circuit Breaker 70A 3 Pole 120/240VAC 10kA Plug-in Mount
- MPN: QO370
- UPC: 785901004387
- PPN: SCH-QO370
CAD
$399.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 70A 3 Pole 120/240VAC 10kA Plug-in Mount
Features
- Designed specifically for the premium Square D QO platform, this unit features a seamless plug-in mounting style that snaps directly onto standard QO load centers. This native compatibility eliminates field modifications and speeds up your field installation process while preserving the structural integrity of your enclosure.
- Engineered for demanding applications, this 70A, 3-pole miniature circuit breaker safely handles 240V AC to deliver robust, continuous power distribution. It is the ideal choice for safeguarding high-draw machinery, large commercial HVAC units, and heavy industrial three-phase loads.
- Equipped with the industry-exclusive Visi-Trip red indicator flag, a prominent visual marker instantly signals exactly which breaker has tripped in a crowded panelboard. This feature saves valuable troubleshooting downtime during facility maintenance, allowing electrical contractors to quickly isolate faults, reset the thermal-magnetic toggle, and restore operations.
- Featuring a high-performance 10 kAIC (10,000 Amperes Interrupting Capacity) short-circuit current rating, this thermal-magnetic breaker successfully interrupts dangerous electrical faults without failing catastrophically. This safeguards your expensive downstream machinery and heavy equipment from devastating overcurrent damage.
- Built with versatile pressure plate box lugs, this electrical component accommodates a broad wire size range from AWG 8 down to AWG 2 in either copper or aluminum conductors. The heavy-duty terminal design ensures high torque retention and a low-resistance electrical connection, minimizing localized heating and long-term joint degradation under maximum load.
- Fully CSA Certified and UL Listed as a standard miniature circuit breaker, this product complies with rigorous national safety mandates for Canadian commercial installations. Additionally, its official HACR rating ensures it is code-approved for the high inrush currents typical of heating, air conditioning, and refrigeration systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth74 mm
Complementary Attributes
- Rated Current
- 70 A
Line Rated Current70 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0870163495
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.7813749802
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Electrical Connection
- pressure plate
- Mounting Mode
- plug-in
- Number Of Spaces Required
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.1
- Tightening Torque
- 5.6-5.6 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 24.8784
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Width Nominal
- 57 mm
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 492.147 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.0614151572, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0001189014, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 kg CO2 eq., 17.3042434783
Local Publishable Date2026-04-14
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge8 AWG...2 AWG copper or aluminium
Circuit Breaker Typestandard
Energy Efficiency OptimizedFalse
Number Of Poles3P
Poles Description3P
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint20 kg CO2 eq.
Pep CodeENVPEP2111016EN
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Height Nominal79 mm
[Ue] Rated Operational Voltage240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 20.2341688665
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
