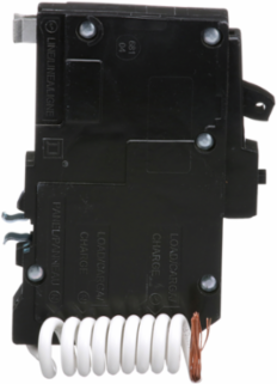

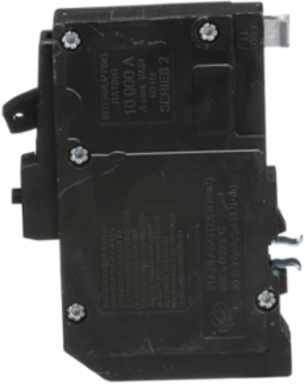

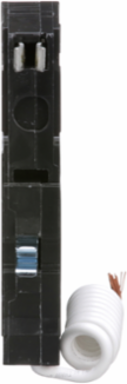

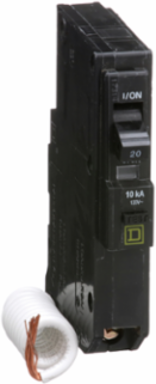

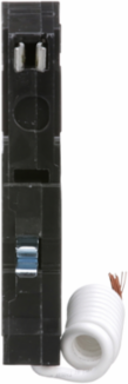

Square D QO120EPD Mini Circuit Breaker 20A 1 Pole 120V AC 10kA Plug-In Mount Ground Fault 30mA
- MPN: QO120EPD
- UPC: 785901763833
- PPN: SCH-QO120EPD
CAD
$302.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 20A 1 Pole 120V AC 10kA Plug-In Mount Ground Fault 30mA
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

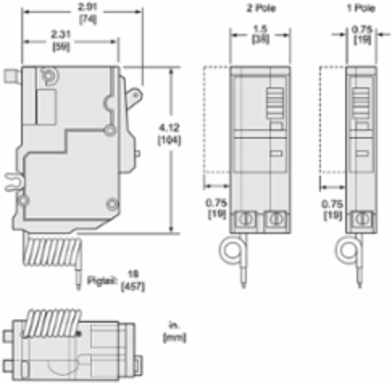

- Depth
- 74 mm
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 20 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Tightening Torque
- 4-4 N.m, 4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0634088331, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0017302614, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 37 kg CO2 eq., 37.375
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2212005
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- not rated
- Electrical Connection
- pressure plate
- Mounting Mode
- plug-in
- Number Of Spaces Required
- 1
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Height Nominal
- 105 mm
- [Ue] Rated Operational Voltage
- 120 V AC
- Package Weight(Lbs)
- 231 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 455.05
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 5.7146
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 503.15
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 472.94
- Water Pollution (M3) Operational Energy Use [B6]
- 1842.6
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0513028617
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.9215540252
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Use Carbon Footprint37.375
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Awg Gauge14 AWG...8 AWG copper12 AWG...8 AWG aluminium
Circuit Breaker Typeground fault protecting class B 30 mA
Energy Efficiency OptimizedFalse
Number Of Poles1P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint39 kg CO2 eq.
Pep CodeENVPEP2212005EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Width Nominal19 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]3173.9
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]37.375
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]472.94
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]30.218
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]30.218
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 39.4129959813
- Circularity Profile
- ENVEOLI2212005
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2212005EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Environmental DisclosureENVPEP2212005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
ETIM
- ETIM 8
- EC000905
ETIM 9EC000905
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
