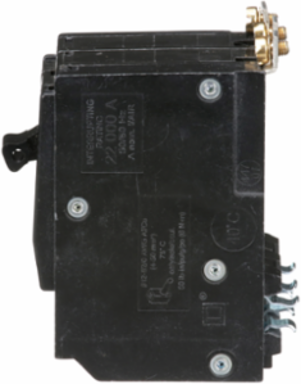

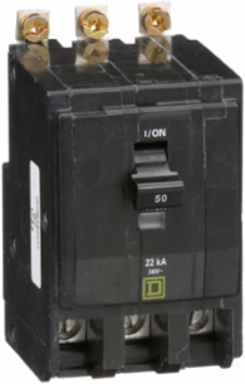

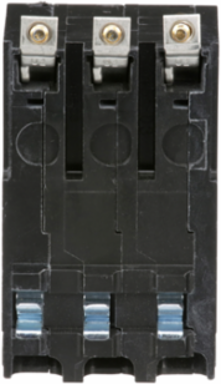

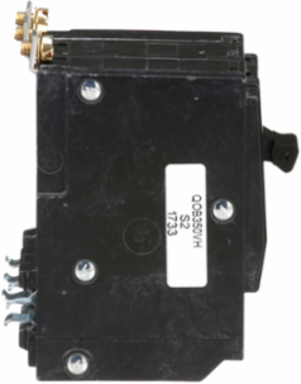

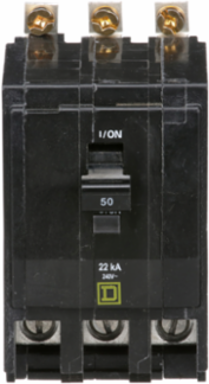

Square D QOB350VH Mini Circuit Breaker 50A 3 Pole 120/240V 22kA Bolt-On Mount
- MPN: QOB350VH
- UPC: 785901054825
- PPN: SCH-QOB350VH
CAD
$372.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB350VH, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. With breacking capacity to 22kA. UL listed CSA certified This 3 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 50 A
- Operational Voltage
- 120/240 V AC
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Wire Size
- AWG 8 to AWG 2 copper or aluminum
- Height
- 79 mm
- Depth
- 74 mm
- Product Certifications
- UL listed, CSA certified
- Mercury Free
- Yes
- Halogen Free
- Yes
- REACH Regulation
- Contains SVHC above threshold
- Range Of Product
- QO
Number of Poles3P
Breaking Capacity22 kA
Mounting Typebolt-on
Electrical Connectionbox lugs
Tightening Torque5.6 N.m
Width57 mm
Net Weight0.499 kg
Ambient Air Temperature For Operation40 °C
RoHS Exemption StatusYes
China RoHS RegulationOut of China RoHS scope
Warranty18 months
Product Typeminiature circuit-breaker
