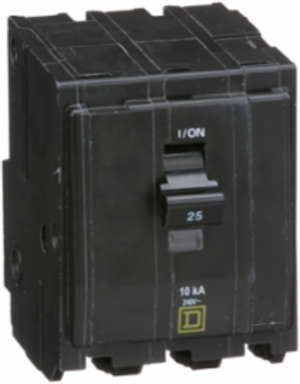

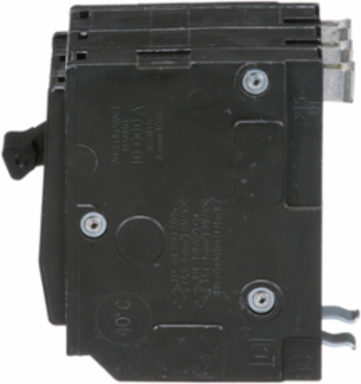

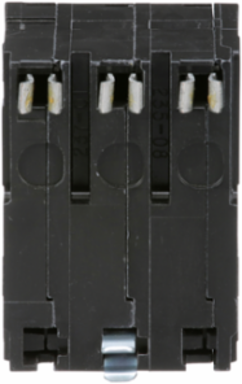

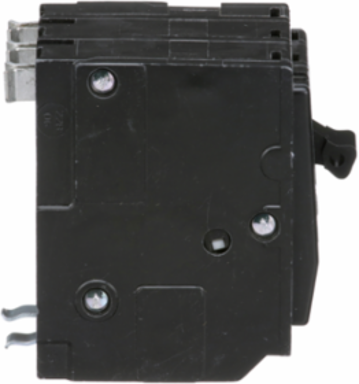

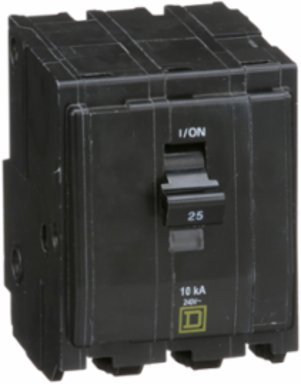

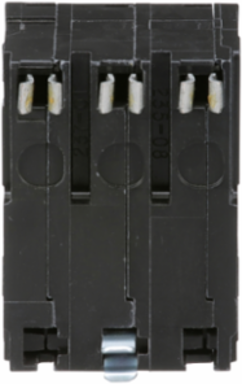

Square D QO325 Mini Circuit Breaker 25A 3 Pole 120/240VAC 10kA Plug-In Mount
- MPN: QO325
- UPC: 785901012467
- PPN: SCH-QO325
CAD
$303.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Features
- Engineered exclusively for seamless integration, this 3-pole miniature circuit breaker is explicitly designed to plug directly into Square D QO load centers, and OEM interiors. The authentic plug-on design completely eliminates the need for complex mounting hardware or bolt-on modifications, allowing commercial electricians and maintenance teams to complete fast, code-compliant drop-in replacements with minimal downtime.
- Featuring Schneider Electric's signature Visi-Trip red indicator flag, this breaker visually isolates the tripped phase instantly within a crowded panelboard.
- This robust 25-Amp, 3-Pole thermal-magnetic circuit breaker safely manages standard 120/240V AC and 240V AC distributions with a solid 10 kA interrupting rating (kAIC). Built to withstand high-inrush currents without nuisance tripping, it serves as an optimal overcurrent protection solution for dedicated three-phase HVAC equipment, commercial pumps, and small workshop machinery.
- Fully CSA approved and UL listed, this premium OEM breaker satisfies all rigorous Canadian electrical code mandates for commercial and light industrial properties. Its over-center, trip-free toggle mechanism ensures the internal contacts break instantly during a short circuit or thermal overload, prioritizing arc flash mitigation and ultimate equipment safety even if the external handle is mechanically held in the "ON" position.
- Outfitted with heavy-duty pressure plate electrical connections, the terminal lugs accept a broad wire range of AWG 14 to AWG 8 copper or aluminum conductors. This versatile design accommodates a variety of field-wiring configurations and ensures a secure, low-resistance termination that holds up against continuous vibration and thermal cycling.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 25 A
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Tightening Torque
- 4 N.m

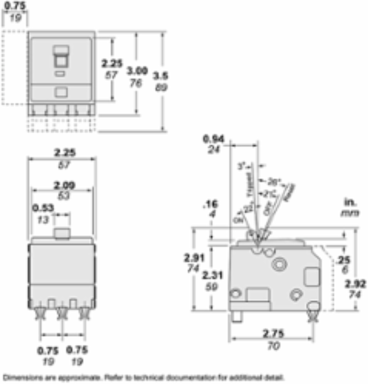

- Width
- 57 mm (2.24 in)
- Net Weight
- 0.367 kg (0.81 lb)
- Circuit Breaker Type
- Standard
- Product Certifications
- UL listed, CSA certified
- Range Of Product
- QO
- RoHS Compliance
- Compliant with exemptions
- Warranty
- 18 months
- Mercury Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
- China RoHS Regulation
- Product out of China RoHS scope
Number of Poles3
Breaking Capacity10 kA 120/240 V AC 50/60 Hz
Wire SizeAWG 14 to AWG 8 copper or aluminum
Height76 mm (2.99 in)
Depth74 mm (2.91 in)
Electrical ConnectionPressure plate
Ambient Air Temperature For Operation40 °C (104 °F)
Circuit Breaker ApplicationHACR rated
Sustainable Offer StatusGreen Premium product
Halogen Content PerformanceHalogen free product
RoHS Exemption InformationYes
Toxic Heavy Metal FreeYes
Circularity ProfileN/A
