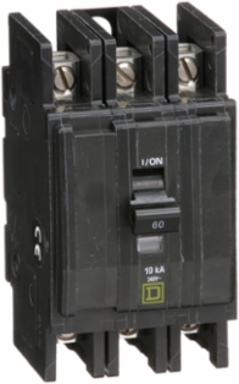

Square D QOU360 Mini Circuit Breaker, 60A, 3 Pole, 240VAC, 10kA, Compact Design

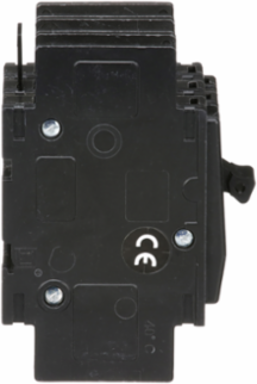

Mini Circuit Breaker, 60A, 3 Pole, 240VAC, 10kA, Compact Design - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/0c35839759854e2bb75cf44a19db9c607ab1179e-medium.png

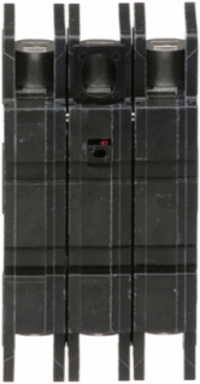

Mini Circuit Breaker, 60A, 3 Pole, 240VAC, 10kA, Compact Design - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/bbf6bea606ac99b6a47c646d1733122244bf24d2-medium.png

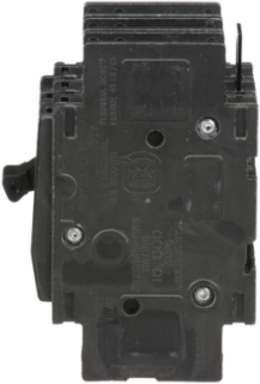

Mini Circuit Breaker, 60A, 3 Pole, 240VAC, 10kA, Compact Design - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/0ece387a45dae406f3f44e26e0628cda613677c8-medium.png

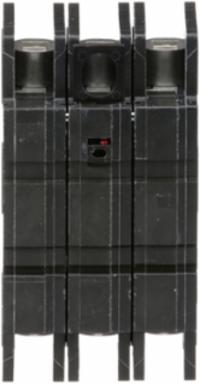

Mini Circuit Breaker, 60A, 3 Pole, 240VAC, 10kA, Compact Design - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/b1db158dc99ba31d2edd05f3f20e43a15d19e7db-medium.png

Mini Circuit Breaker, 60A, 3 Pole, 240VAC, 10kA, Compact Design

Square D QOU360 Mini Circuit Breaker, 60A, 3 Pole, 240VAC, 10kA, Compact Design

MPN: QOU360
UPC: 785901060291
PPN: SCH-QOU360

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$912.12/ EA

Qty:

Loading add to cart quantity...

Description

QO™ and QOU Miniature Circuit Breakers, QOU360, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.

Specifications

Current Rating: 60 A

Interrupting Capacity: 10 kA

Circuit Breaker Type: Miniature

Electrical Connection: Slotted box lugs, line and load side

Wire Gauge: AWG 14 to AWG 2 aluminum/copper

Height: 4.05 in (102.87 mm)

Depth: 2.95 in (74.93 mm)

RoHS Compliance: Compliant with Exemptions

Mercury Free: Yes

Warranty: 18 months

Rated Operational Voltage120/240 V AC, 240 V AC, 120 V AC, 48 V DC

Poles3

Application RatingHACR rated

Tightening Torque45 lbf.in (5.08 N.m)

MountingUnit mount

Width2.25 in (57.15 mm)

CertificationsIEC, CSA, UL Listed

Halogen ContentHalogen free

Country of OriginMexico
