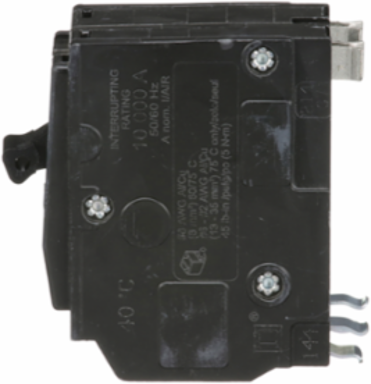

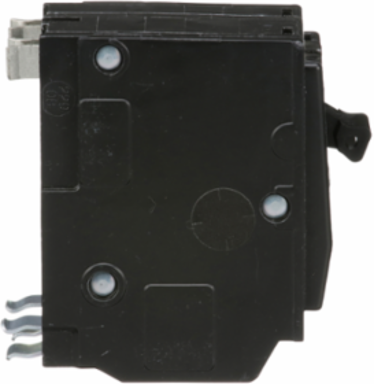

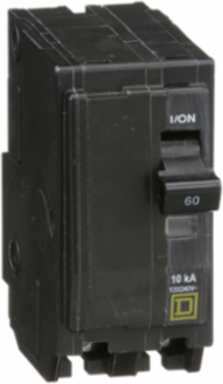

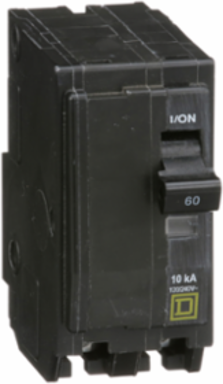

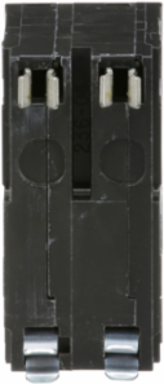

Square D QO260 Mini Circuit Breaker 60A 2 Pole 120/240V AC 10kA Plug-In Mount
- MPN: QO260
- UPC: 785901400561
- PPN: SCH-QO260
CAD
$90.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 60A 2 Pole 120/240V AC 10kA Plug-In Mount
Features
- The Schneider Square D QO260 is a two-pole circuit breaker rated at 60 Amps and 120/240V AC. It is a heavy-duty power solution typically used for the largest residential and commercial loads, such as sub-panel feeds, large electric furnaces, high-capacity tankless water heaters, and heavy-duty industrial machinery.
- As part of the premium QO (Square D) family, the QO260 features a compact 3/4-inch width per pole (1.5 inches total). It is built to higher industrial-grade standards than "economy" breakers, offering superior durability, better heat dissipation, and a more robust internal mechanism designed for decades of reliable service.
- A standout feature of the QO260 is the Visi-TripTM red indicator. If the breaker trips due to an overload or short circuit, a highly visible red mechanical flag appears in a window on the breaker face. This eliminates the guesswork of trying to determine if a handle is "tripped" or simply "off," allowing for faster and safer troubleshooting.
- The QO260 utilizes the industry-standard QO plug-on mounting system. It snaps directly onto the bus bar of any Square D QO load center or NQ panelboard. The "jaw" design creates a high-pressure, gas-tight electrical contact that prevents the arcing and terminal loosening that can lead to panel failure in high-amperage 60A circuits.

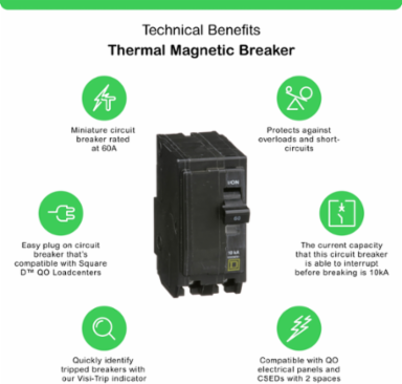

- This breaker provides a dual-layer defense. The thermal element protects against sustained overloads (drawing too much power over time), while the magnetic element provides instantaneous protection against high-energy short circuits with a 10kA interrupting rating (AIR), cutting power in milliseconds to prevent electrical fires.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth74 mm
Complementary Attributes
- Rated Current
- 60 A
Line Rated Current60 A
Important Information Attributes
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0380406258, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0000736476, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 17 kg CO2 eq., 17.3042434783
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Persona Type Names
- Contractor
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 8 AWG...2 AWG copper or aluminium
- Circuit Breaker Type
- standard
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2P
- Poles Description
- 2P
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 19 kg CO2 eq.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 24.8784
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX

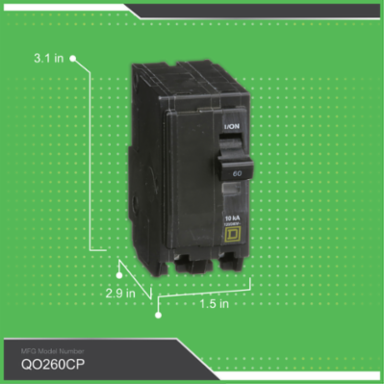

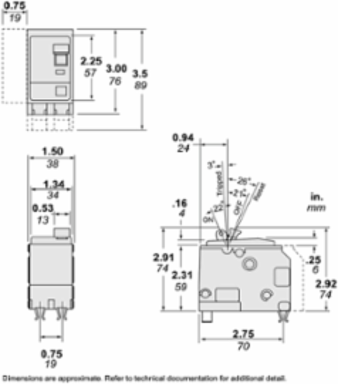

- Width Nominal
- 38 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200040
[Ue] Rated Operational Voltage120/240 V AC, 120 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0538980366
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.7227871686
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Persona Type IdsLC
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Electrical Connectionpressure plate
Mounting Modeplug-in
Number Of Spaces Required2
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.1
Tightening Torque5-5 N.m
Pep CodeENVPEP2111016EN
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Height Nominal79 mm
Halogen-free StatusHalogen free product
Package Weight(Lbs)294.835 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 19.1190429569
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
