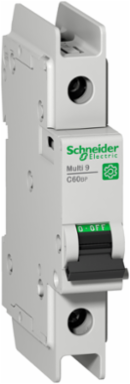

Schneider Electric M9F42115 Miniature Circuit Breaker 1P 15A C Curve 14kA IP20
- MPN: M9F42115
- PPN: SCH-M9F42115
CAD
$46.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 15A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Features
- The Schneider M9F42115 is a high-performance Multi9 C60BP miniature circuit breaker designed for both branch circuit protection and supplemental protection. Unlike standard residential breakers, the Multi9 line is engineered to meet multiple international standards (UL 489, CSA, IEC), making it the "gold standard" for Canadian OEMs and panel builders who export machinery globally.
- This is a 15-Amp, single-pole breaker rated for up to 277V AC (or 480Y/277V systems). Its 15A rating is the most common size for protecting individual control circuits, lighting branches, and localized power outlets in industrial automation cabinets and specialized laboratory equipment.
- Featuring a C-Curve magnetic trip profile, this breaker is designed to trip at 7 to 10 times the rated current. This provides the necessary "headroom" to handle the moderate inrush currents found in fluorescent lighting, small motors, and control transformers, preventing nuisance tripping while still reacting instantly to dangerous short circuits.
- The M9F42115 boasts a high interrupting rating of 10,000 AIR (Amps Interrupting Rating) at 277V AC. This ensures the breaker can safely clear significant faults without internal damage, protecting your downstream equipment and ensuring the overall reliability of your electrical distribution system.
- Designed with a slim 18mm width, this breaker maximizes density in crowded control panels. It features a robust DIN rail clip for fast, tool-free installation and is compatible with Multi9 busbar systems, significantly reducing wiring time and complexity during the assembly of large-scale industrial projects.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 15 A 25 C EN/IEC 60947-2
- Rated Operational Voltage
- 240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 60 V DC
- Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-2
- Curve Code
- C
- Operating Temperature
- -30 to 70 C
- Ambient Air Temperature For Storage
- -40 to 80 C
- Electrical Durability
- 10000 cycles
- IP Degree of Protection
- IP20 conforming to IEC 60529
- Width
- 18 mm
- Depth
- 72 mm
- Tightening Torque
- 2.5 N.m top or bottom
- Suitability For Isolation
- yes EN/IEC 60947-2
- Connections - Terminals
- tunnel type terminal top or bottom 1-25 mmB2 AWG 18...AWG 8 rigid, 1-16 mmB2 AWG 18...AWG 8 flexible with ferrule or flexible
- Trip Unit Technology
- thermal-magnetic
- Earth-Leakage Protection
- without
- Colour
- grey (Light Grey RAL7035)
- Standards
- EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
- Halogen Content Performance
- halogen free
Breaking Capacity3 kA Icu 415 V AC EN/IEC 60947-2, 10 kA Icu 240 V AC EN/IEC 60947-2, 20 kA Icu 60 V DC EN/IEC 60947-2, 14 kA AIR 240 V AC UL 489
Rated Insulation Voltage500 V AC EN/IEC 60947-2
Poles1P
Magnetic Tripping Limit8.5 x In +/- 20 % AC, 12 x In +/- 20 % DC
Ambient Air Temperature For Operation-30 to 70 C
Mechanical Durability20000 cycles
Pollution Degree3 EN/IEC 60947-2
Mounting Modeclip-on DIN rail
Height103 mm
Wire Stripping Length14 mm for top or bottom connection
Contact Position Indicatoryes
Local SignallingON/OFF indication
Provision For Padlockingpadlockable
Network TypeDC, AC
Pollution Degree3 EN/IEC 60947-2
Product CertificationsIEC, CCC, CSA, UL
Mercury Freeyes
