Schneider Electric M9F11106 Miniature Circuit Breaker 1P 6A C Curve 10kA EN/IEC 60947-2
Schneider Electric M9F11106 Miniature Circuit Breaker 1P 6A C Curve 10kA EN/IEC 60947-2
- MPN: M9F11106
- PPN: SCH-M9F11106
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$48.23/ EA
Description

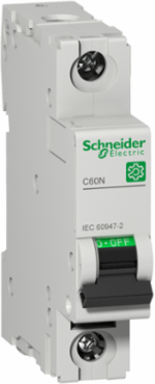

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Specifications
Specifications
- [In] Rated Current
- 6 A 50 °C EN/IEC 60947-2
- Number Of Protected Poles
- 1
- Standards
- EN/IEC 60947-2
- Product Or Component Type
- miniature circuit-breaker
- Utilisation Category
- category A EN/IEC 60947-2
- Breaking Capacity
- 15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Poles Description
- 1P
- Device Short Name
- C60N
Curve CodeC
Network TypeAC || DC
Product CertificationsEAC || KC || CCC
Product NameMulti9 C60
RangeMulti9
Suitability For Isolationyes EN/IEC 60947-2
Device Applicationdistribution
Trip Unit Technologythermal-magnetic
Complementary
- Network Frequency
- 50/60 Hz
- Height
- 81 mm
- Earth-Leakage Protection
- separate block
- 9 Mm Pitches
- 2
- Net Weight
- 0.12 kg
- Control Type
- toggle
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Electrical Durability
- 10000 cycles
- Local Signalling
- ON/OFF indication
- Colour
- grey
- Provision For Padlocking
- padlockable
- Tightening Torque
- 2-2 N.m top or bottom
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
[Ics] Rated Service Breaking Capacity7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC
Contact Position Indicatoryes
Mounting SupportDIN rail
Limitation Class3
Wire Stripping Length14 mm for top or bottom connection
Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Mounting Modeclip-on
Mechanical Durability20000 cycles
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
Width18 mm
Depth72 mm
Magnetic Tripping Limit8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304004EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Ambient Air Temperature For Storage
- -40-80 °C
- Overvoltage Category
- IV
Tropicalisation2 IEC 60068-1
Pollution Degree3 EN/IEC 60947-2
Relative Humidity95-95 % 55-55 °C
Heat Dissipation2.7-2.7 W 240 V - 6 A
