Schneider Electric BMXMSP0200 Modicon X80 PTO Module, 2 Channels, 4 Inputs, 24V DC

  • MPN: BMXMSP0200
  • PPN: SCH-BMXMSP0200
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2795.28

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil

    Complementary Attributes

    Maximum Leakage Current0.05 mA at state 0

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Current Consumption35 mA 24 V DC preactuator, 150 mA 3.3 V DC typical200 mA 3.3 V DC maximum
    Current State 1 Guaranteed>= 2 mA, >= 2 mA
    Local Signalling1 LED (green) for module operating (RUN)1 LED (red) for external fault (I/O), 1 LED (red) for internal fault, module failure (ERR), 1 LED (green) for download (DL)8 LEDs (green) for channel status (CH00), 8 LEDs (green) for channel status (CH01)
    Preactuator Voltage Detection Threshold< 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, > 14 V error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output, > 14 V no error preactuator voltage pulse output< 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output, < 8 V no error preactuator voltage auxiliary output, > 14 V error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output
    Voltage State 1 Guaranteed>= 11 V, >= 11 V
    Carbon Footprint Of The Distribution Phase [A4]0.0192222545, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0391429818, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]25 kg CO2 eq., 25.4443826816
    Local Publishable Date2026-06-14
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connection2 connectors 28 pins
    Insul Btwn Prim And Second1500 Vrms
    Load Impedance Ohmic15000 Ohm
    Number Of Channels2
    Product Or Component TypePTO module
    ReturnabilityYes
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint45 kg CO2 eq.
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Output Short-circuit Protectionby current limiter and electronic circuit breaker
    Package Weight(Lbs)147.000 g
    Warranty (In Months)18
    Customs Code8538908180
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Current State 0 Guaranteed<= 1.5 mA, <= 1.5 mA
    Insulation Resistance> 10 MOhm, > 10 MOhm
    Operating Threshold> 12 V no error supply voltage, > 12 V no error supply voltage, > 8 V error supply voltage, > 8 V error supply voltage, > 12 V no error supply voltage, > 12 V no error supply voltage, > 8 V error supply voltage, > 8 V error supply voltage
    Response Time< 200 µs for position completed input and drive ready input, < 200 µs for position completed input and drive ready input, < 60 µs for origin input and proximity input, < 60 µs for origin input and proximity input< 200 µs for position completed input and drive ready input, < 200 µs for position completed input and drive ready input, < 60 µs for origin input and proximity input, < 60 µs for origin input and proximity input
    Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2608403636
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]19 kg CO2 eq., 18.7821454545
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Market SegmentationIndustrial
    Current Per Channel0.4 A
    Environmental Characteristichazardous location class I division 2
    Insulation Between Channelsno insulated
    Module Formatstandard
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon X80
    Reverse Polarity Protectionby reverse mounting diode on outputintegrated on input
    Sustainable PackagingYes
    Voltage State 0 Guaranteed5 V
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh39.0258
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    [Ures] Residual Voltage0.15 V at state 1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Water Use (M3 Eq) Manufacturing [A1-a3]52077.2

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint44.5457337361
    Derating Factorwithout
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2311046EN
    Environmental DisclosureENVPEP2311046EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component TypePTO module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001422
    ETIM 9EC001422

    Output Attributes

    Output Compatibilitysignal converter (USIC), RS422, 7 mA input, source input, 5 V to 24 V
    Response Time On Output1.2...1.5 ms on appearance, 1.2...1.5 ms on disappearance
    Number Of Outputs1 pulse output2 auxiliary output
    Output Voltage24 V DC
    Output Frequency200 kHz <0.5 m with USIC and VW3M8210R05, 100 kHz <5 m with the normal source input circuit200 kHz <10 m with the RS422 compatible circuits
    Discrete Output Current50 mA
    Output Overload Protectionby current limiter and electronic circuit breaker
    Output Voltage Limits19...30 V

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Typecurrent sink yes origin input IEC 61131-2 type 3, current sink yes proximity input and limit switch input IEC 61131-2 type 3current sink or source counter in position input IEC 61131-2 type 3, current sink or source drive ready, emergency input IEC 61131-2 type 3
    Input Current4.3 mA
    Number Of Inputs4
    Input Compatibility2-wire/3-wire proximity sensor 19.2-30 V IEC 947-5-2
    Input Voltage24 V DC

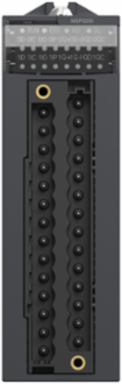

    Modicon X80 PTO Module, 2 Channels, 4 Inputs, 24V DC

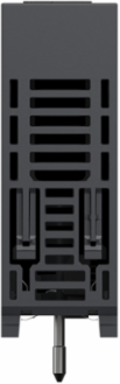

    Modicon X80 PTO Module, 2 Channels, 4 Inputs, 24V DC

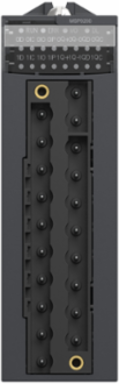

    Modicon X80 PTO Module, 2 Channels, 4 Inputs, 24V DC

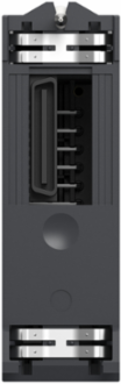

    Modicon X80 PTO Module, 2 Channels, 4 Inputs, 24V DC

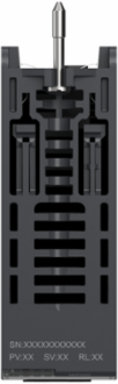

    Modicon X80 PTO Module, 2 Channels, 4 Inputs, 24V DC
    Modicon X80 PTO Module, 2 Channels, 4 Inputs, 24V DC
