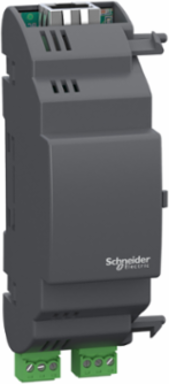

Schneider Electric TM171AETHRS485 Modicon M171 Performance Plug-in Ethernet and BACnet MSTP or Modbus

MPN: TM171AETHRS485
PPN: SCH-TM171AETHRS485

$154.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This communication module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This optional module provides a specific connection to Modbus TCP or SL, BACnet/IP, MS/TP, and Ethernet. It has one RJ45 connector for Ethernet port, and 2 screw terminal blocks for RS485 port. It allows the HVAC controller to manage Data on the Modbus TCP or SL, BACnet/IP, MS/TP, and Ethernet networks. It measures 100mm high, 35mm wide and 53.93mm deep, and weighs 0.077kg. This communication module allows controllers to get an additional communication port. It is certified by CE, CSA, cURus, and EAC. It is compatible with M171 Performance logic controllers. It is sold in a 1-piece package. It is mounted by simply interlocking on the left-hand side of M171 Performance or M172 logic controllers. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Italy, Sweden, United States

Communications & Management Attributes

Communication Port Protocol	BACnet IP, SMTP, HTTP, Ethernet, Modbus TCP, Modbus RTU, RS485, BACnet MS/TP

Complementary Attributes

Integrated Connection Type	Ethernet RJ45 - twisted pairRS485 wire crimp - twisted pair

Important Information Attributes

Persona Type Ids	EU, OM, OM8, SI
Certificate Agency	CE, CSA, cURus, EAC
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	removable screw terminal block
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon M171
Supply	via base board EVD/EVC
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Weight(Lbs)	173.900 g
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Adjustment	pitch 3.81 mm
Marking	CE
Product Or Component Type	communication module
Returnability	No
Sustainable Packaging	Yes
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8517620090

Environment Attributes Main

Ambient Air Temperature For Operation	-10-55 °C, -10-55 °C
Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-20-85 °C, -20-85 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP20
Product Compatibility	logic controller M171 performance
Relative Humidity	10-90 % without condensation
