Schneider Electric TM172ODM18R Modicon M171/M172/M173 Controller, 18 I/O, IP20, 24V AC/DC
- MPN: TM172ODM18R
- PPN: SCH-TM172ODM18R
CAD
$567.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

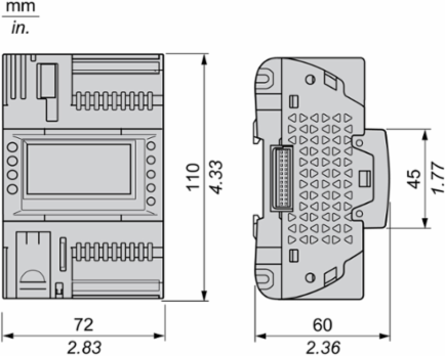

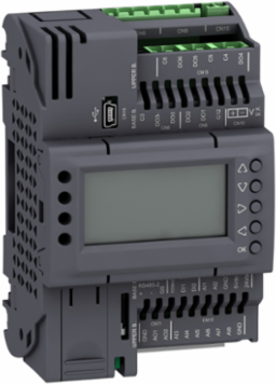

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.195kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, United States
Depth60.5 mm
Important Information Attributes
- Local Signalling
- 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power
- Mounting Support
- panel mounting with accessory, DIN rail
- Certificate Agency
- CE, RCM, cURus, EAC, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.09812456878780675, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0016596232309680165, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 456 kg CO2 eq., 455.9411973725249
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Product Contributes To Saved And Avoided Emissions
- No
- Display Type
- Backlit LCD - 128 x 64 pixels
- Power Consumption In W
- 11 W 24 V AC/DC
- Product Or Component Type
- programmable controllers
- Range Of Product
- Modicon M171/M172
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 488 kg CO2 eq.
- Upgradeability
- Yes
- Pep Code
- ENVPEP1803011EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
- Height Nominal
- 110 mm
- [Us] Rated Supply Voltage
- 24 V +/- 10 % AC20...38 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Measurement Accuracy0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, daOhm 0...300 daOhm +/- 2.5 daOhmNTC NK103 Beta 3977 - 40...+110 °C +/- 1 °CNTC NK103 Beta 3977 110...137 °C +/- 1.9 °CNTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °CPt 1000 - 100...-50 °C +/- 2.5 °CPt 1000 - 50...100 °C +/- 1.5 °CPt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C, hOhm 0...750 hOhm +/- 8.5 hOhmhOhm 750 hOhm...1500 hOhm +/- 24 hOhm
Number Of Port1 CAN port - screw terminal block1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP)
Input/Output Number2 analog output6 digital output8 analog input, 2 digital input
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.672912127090537
Carbon Footprint Of The Manufacturing Phase [A1 To A3]31 kg CO2 eq., 31.10357701556675
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1803011EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Product Kit IdentifierN
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC
Realtime Clockbuilt-in clock, clock drift <= 30 s/month at -20-60 °C
Sensor Power Supply5-5 V DC 40 mA supplied by the controller24-24 V DC 100 mA supplied by the controller
Sustainable PackagingYes
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo manage a wide range of HVAC/R and pumping applications with a 100% of the time for 10 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh963.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal72 mm
Number Of Inputs/Outputs18
Package Weight(Lbs)260.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -30-70 °C, -30-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 487.817470707201
- Circularity Profile
- ENVEOLI1803011EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1803011EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-20-60 °C-20-60 °C
Environmental DisclosureENVPEP1803011EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Relative Humidity5-95 % non-condensing
Pep Verification Date2025-09-01
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- programmable controllers
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 3 A relay SPST, 3 A relay SPDT
- Analogue Output Number
- 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete Output Number1 relay outputs SPDT with independent common, 2 relay outputs SPST with same common, 3 relay outputs SPST with independent common
Input Attributes
- Analogue Input Type
- NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C)NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C)voltage 0...10 V 1 digit > 10 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 1500 OhmPTC temperature probe - 55...150 °C 0.1 °C 1500 OhmPt 1000 temperature probe - 200...850 °C 0.1 °C 1500 Ohm, current 0...20 mA/4...20 mA 1 digit < 150 Ohmdirect input 10 kOhm Dry contact)
- Discrete Input Current
- 5 mA AC/DC
- Discrete Input Number
- 2
- Input Impedance
- 10 kOhm
Analogue Input Number8 configurable by pair
Discrete Input Logicsink or source (positive/negative) up to 2 kHz
Discrete Input Voltage24 V AC/DC
Batteries & Runtime Attributes
- Removable Battery
- Yes
