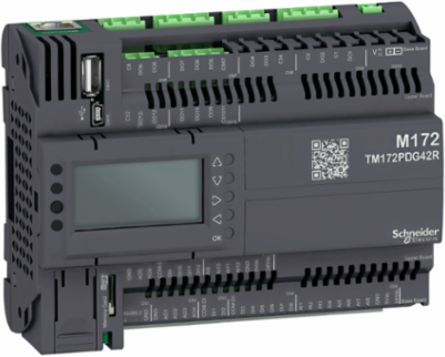

Schneider Electric TM172PDG42R Modicon M172 Controller, 42 I/O, 12 Analog Input, Ethernet, IP20
- MPN: TM172PDG42R
- PPN: SCH-TM172PDG42R
CAD
$753.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

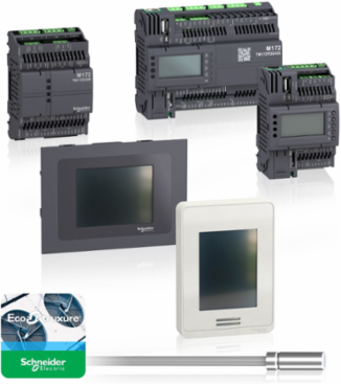

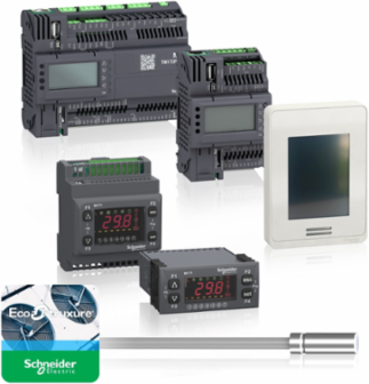

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy, Sweden, United States
Depth60.5 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power
- Number Of Port
- 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
- Certificate Agency
- CE, EAC, CSA, cURus
- Input/Output Number
- 12 analog input, 6 analog output, 12 digital input, 12 digital output
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.037092482472762
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 37 kg CO2 eq., 37.02101742543932
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 1
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1709014EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Display Type
- Backlit LCD - 128 x 64 pixels
- Power Consumption In W
- 15 W 24 V AC/DC
- Product Or Component Type
- programmable controllers
- Range Of Product
- Modicon M171/M172
- Returnability
- No
- Sustainable Packaging
- No
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 1314
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 144 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Mounting Supportpanel mounting with accessory, DIN rail
Sensor Power Supply5-5 V DC 50 mA supplied by the controller, 24-24 V DC 150 mA supplied by the controller
[Us] Rated Supply Voltage24 V +/- 10 % AC, 20...38 V DC
Carbon Footprint Of The Distribution Phase [A4]0.1562931105123967, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.02976637944179302, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]622 kg CO2 eq., 621.7379964170797
Local Publishable Date2026-01-12
Stocking FlagY
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock at -20-60 °C
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint660 kg CO2 eq.
UpgradeabilityYes
Pep CodeENVPEP1709014EN
Pep Verification Date2025-09-01
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
Height Nominal110 mm
Number Of Inputs/Outputs42
Package Weight(Lbs)421.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C UL 60730-1, -20-60 °C UL 60730-1, -20-65 °C with derating UL 60730-1, -20-65 °C with derating UL 60730-1, -20-65 °C with derating UL 60730-1-20-60 °C UL 60730-1, -20-60 °C UL 60730-1, -20-65 °C with derating UL 60730-1
- Directives
- 2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1709014EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2025-09-01
- Psr Version
- No PSR
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint659.9821658149459
Environmental DisclosureENVPEP1709014EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1709014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- programmable controllers
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 4 voltage 0...10 V, 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
- Discrete Output Number
- 3 relay outputs SPST with same common2 relay outputs SPST with same common, 2 relay outputs SPST with independent common, 2 relay outputs SPDT with same common, 3 relay outputs SPST with independent common
Discrete Output Current1 A relay SPDT, 3 A relay SPST
Input Attributes
- Analogue Input Type
- impedance 0...1500 hOhm, impedance 0...300 daOhm, direct input, NTC temperature probe - 50...110 °C 0.1 °C extended), voltage 0...10 V, NTC temperature probe - 40...150 °C 0.1 °C, current 0...20 mA/4...20 mA, PTC temperature probe - 55...150 °C 0.1 °C, voltage 0...5 V absolute or ratiometric), Pt 1000 temperature probe - 200...850 °C 0.1 °C
- Discrete Input Current
- 2.5 mA
- Discrete Input Number
- 12
- Input Impedance
- 10 kOhm
Analogue Input Number12 configurable by pair
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V AC/DC
Batteries & Runtime Attributes
- Removable Battery
- Yes
