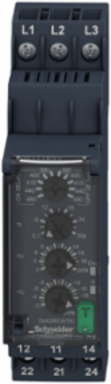

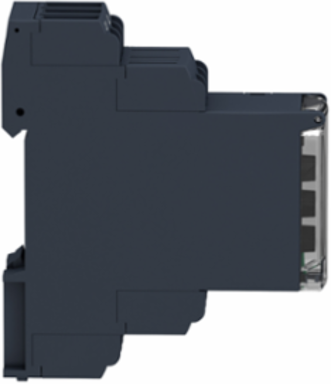

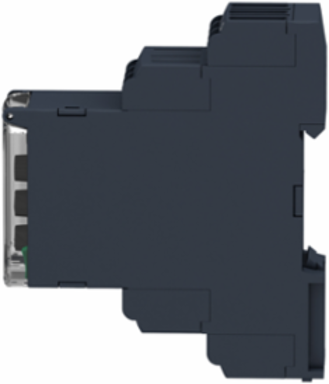

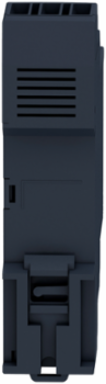

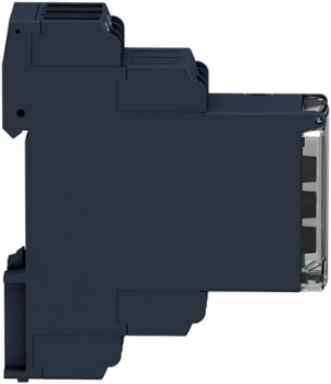

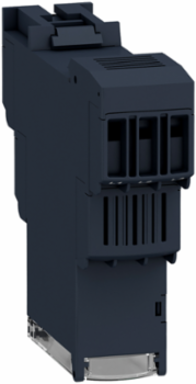

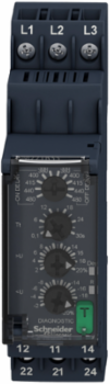

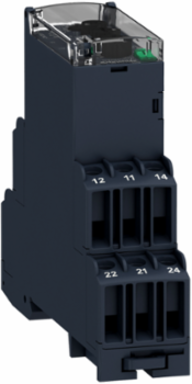

Schneider Electric RM22TR33 Harmony 3-Phase Control Relay 8A 380...480V AC
- MPN: RM22TR33
- PPN: SCH-RM22TR33
CAD
$217.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Complementary Attributes
- Control Circuit Voltage Limits
- - 20 % + 20 % Un- 20 % + 20 % Un
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Maximum Switching Voltage
- 250 V AC
Line Rated Current8 A
Maximum Switching Current8 A AC
Minimum Switching Current10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, immunity for industrial environments conforming to IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11, conducted and radiated emissions class B conforming to CISPR 22
- Measurement Error
- < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation
- Relay Monitored Parameters
- phase failure detection, overvoltage and undervoltage detectionphase sequencephase failure detection
- Safety Reliability Data
- MTTFd = 388.1 years, B10d = 350000
- Status Led
- LED (Yellow) relay ON, LED (Green) power ON
- Time Delay Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Certificate Agency
- GL, CSA, RCM, CE, EAC, CCC, UL
- Connections - Terminals
- screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0522965455, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.8499090909
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 119.85
- Stock Policy
- 2
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1504008EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RM22
- Contacts Type And Composition
- 2 C/O
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Functionality
- overvoltage and undervoltage detection
- Hysteresis
- 2-2 % fixed selectable
- Measurement Range
- 380...480 V voltage AC
- Mounting Position
- any position
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Control Relays
- Relay Type
- control relay
- Response Time
- <= 300 ms<= 300 ms
- Setting Accuracy Of The Switching Threshold
- +/- 10 % of the full scale+/- 10 % of the full scale
- Software Version
- EIME v5.8.1
- Supply Voltage Limits
- 304-576 V AC
- Switching Capacity In Va
- 2000 VA
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 95 kg CO2 eq.
- Control Circuit Voltage
- 380...480 V
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 189.216
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Uc] Control Circuit Voltage
- 380...480 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 3990.096
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 336.1392
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1616.112
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 235.44
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 235.44
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
Overvoltage CategoryIII conforming to IEC 60664-1, III conforming to UL 508
Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 3 % time delay, +/- 3 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 3 % time delay, +/- 3 % time delay
Shock Resistance15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Switching Threshold Drift<= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
Utilisation CategoryAC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1, AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
Voltage Detection Threshold< 100 V AC, < 100 V AC< 100 V AC, < 100 V AC
[Us] Rated Supply Voltage, self-poweredAC/DC, , self-powered
Carbon Footprint Of The Distribution Phase [A4]0.0116116364, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0004490264
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]93 kg CO2 eq., 92.70576
Local Publishable Date2026-03-26
Future Imap107.39
Stocking FlagN
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialcadmium free
Control Typewith test button
Electrical Durability100000 cycles
Housing Materialpolycarbonate
Immunity To Microbreaks10 ms
Mechanical Durability10000000 cycles
Mounting Support35 mm DIN rail conforming to IEC 60715
Power Consumption In Va15-15 VA 480 V AC 60 Hz
Product Or Component Type3-phase control relay
Relay NameRM22TR
Reset Time1500 ms at maximum voltage
ReturnabilityYes
Setting Accuracy Of Time Delay10 P
Supply Frequency50...60 Hz +/- 10 %
Sustainable PackagingYes
Threshold Adjustment Voltage2...20 % of Un selected
Time Delay Typeadjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Voltage Range380...480 V phase to phase
Pep CodeENVPEP1504008EN
Pep Verification Date2019-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27

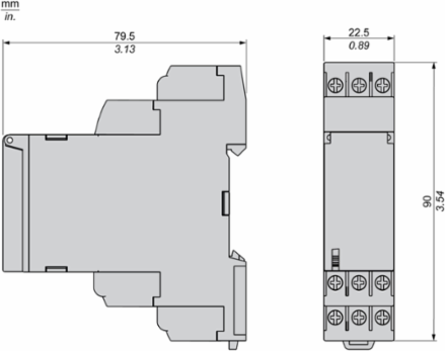

Width Nominal22.5 mm
Run-up Delay At Power-up650 ms
Package Weight(Lbs)106.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1052.28
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]345.6432
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1851.552
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1616.112
Water Pollution (M3) Operational Energy Use [B6]3825.36
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC
- Ip Degree Of Protection
- IP20 IEC 60529 terminals), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1504008EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 93-97 % 25-55 °C IEC 60068-2-30
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint94.6200262991
Environmental DisclosureENVPEP1504008EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1504008EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Harmony Control Relays
Product Or Component Type3-phase control relay
ETIM
- ETIM 8
- EC001441
ETIM 9EC001441
Output Attributes
- Nominal Output Current
- 8 A
Output Contacts2 C/O
