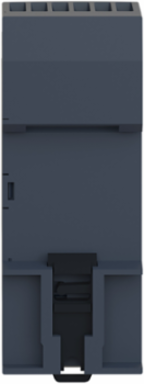

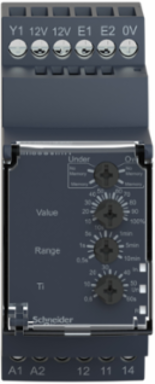

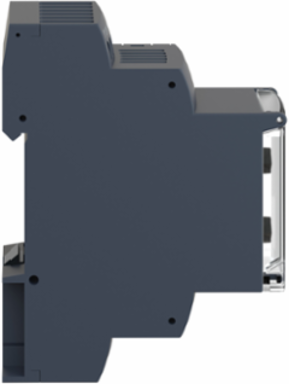

Schneider Electric RM35UA13MW Multifunction Voltage Control Relay, 5A, 15-600V AC/DC, DIN Rail

  • MPN: RM35UA13MW
  • PPN: SCH-RM35UA13MW
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $199.68

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RM35-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, United States
    Depth72 mm

    Complementary Attributes

    Control Circuit Voltage Limits- 15 % + 10 % Un, - 15 % + 10 % Un
    Line Rated Current5 A
    Maximum Power Consumption In W0.6 W DC
    Maximum Switching Voltage250 V AC/DC
    Control Circuit Frequency40...70 Hz +/- 10 %
    Maximum Measuring Cycle30 ms measurement cycle as true rms value
    Maximum Switching Current5 A AC/DC
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Dielectric Test Voltage2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
    Measurement Accuracy+/- 10 % of the full scale value, +/- 10 % of the full scale value
    Operating Rate<= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Safety Reliability DataB10d = 290000, MTTFd = 308.2 years
    Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
    [Ui] Rated Insulation Voltage250 V IEC 60664-1, 600 V IEC 60664-1
    Non-dissipating Shock Wave4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0464858182, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.6443636364
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Type And Composition2 C/O
    Electrical Durability100000 cycles
    Housing Materialpolycarbonate
    Local SignallingLED (green) for power ONLED (yellow) for relay ON
    Mechanical Durability30000000 cycles
    Operating Positionany position without derating
    Polaritynon reversible polarity on DC supply
    Product AvailabilityStock - Normally stocked in distribution facility
    Quality LabelsCE
    Relay Monitored Parametersovervoltage or undervoltage detection
    Relay Typemultifunction voltage control relay
    Resistance Across Terminals150 mOhm E1-M terminals300 mOhm E2-M terminals600 mOhm E3-M terminals
    Sensitivity Scale15...150 V E1-M terminals30...300 V E2-M terminals60...600 V E3-M terminals
    Software VersionEIME v5.8.1
    Sustainable PackagingYes
    Threshold Setting10...100 %
    Time Delay Typeadjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
    Pep CodeENVPEP1601004EN
    Pep Verification Date2019-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %8
    Width Nominal35 mm
    [Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz, non self-powered
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Operational Energy Use [B6]2660.064
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]224.0928
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1077.408
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]156.96
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]156.96
    Customs Code8536490080
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
    Measurement Error+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
    Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
    Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-14 IEC 60947-5-1
    Certificate AgencyGOST, UL, GL, C-tick, CSA
    Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...2 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The Distribution Phase [A4]0.0103214545, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0003991345
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]62 kg CO2 eq., 61.80384
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1601004EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1918
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRM3
    Control Typewithout test button
    Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    Hysteresis5-50 % threshold setting
    Measurement Range15...600 V AC/DC
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Power Consumption In Va0-3.5 VA AC
    Product Or Component Typevoltage control relay
    Range Of ProductHarmony Control Relays
    Relay NameRM35UA
    Reset Time1500 ms time delay
    ReturnabilityYes
    Shock Resistance5 gn IEC 60068-2-27
    Supply Voltage Limits20.4-264 V AC/DC
    Switching Capacity In Va1250 VA
    Tightening Torque0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint64 kg CO2 eq.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
    Functional-unit Unitunité (unit)
    Energy Consumption On Product Lifetime In Kwh126.144
    Energy Model - Installation [A5]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Height Nominal90 mm
    [Uc] Control Circuit Voltage24...240 V
    Run-up Delay At Power-up600 ms
    Package Weight(Lbs)136.0 g
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]701.52
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]230.4288
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1234.368
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1077.408
    Water Pollution (M3) Operational Energy Use [B6]2550.24

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint63.5054100436
    Circularity ProfileENVEOLI1601004EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1601004EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Directives73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-20-50 °C-20-50 °C
    Environmental DisclosureENVPEP1601004EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP30 IEC 60529 casing)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date2019-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typevoltage control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8EC001438
    ETIM 9EC001438

    Output Attributes

    Nominal Output Current5 A
    Output Contacts2 C/O

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
