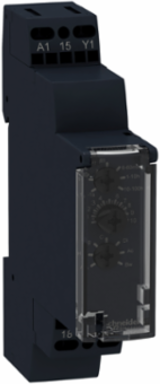

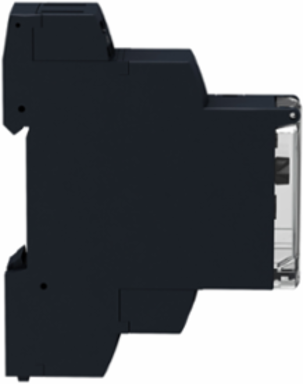

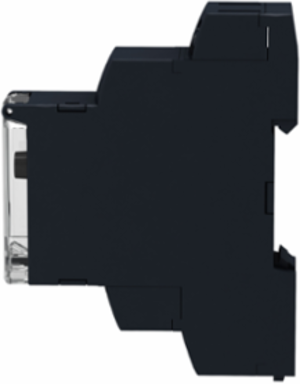

Schneider Electric RE17RMMWS multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10h, power on delay, spring terminals, 12...240V AC DC
Schneider Electric RE17RMMWS multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10h, power on delay, spring terminals, 12...240V AC DC
- MPN: RE17RMMWS
- PPN: SCH-RE17RMMWS
- UNSPSC: 39122329
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$100.22/ EA
Description
"This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V to 240V AC/DC." "It also has 1 changeover contact SPDT (single pole double throw)." "It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0 0 0
Features
- Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
- Wide range of time delay for adjustment: from 0.01 s to 999 hrs.
- Compatible with a wide range of applications including machines, buildings, water segments, and HVAC.
- Unprecedented accuracy, predictive maintenance, and superior security.
- Flexible choice of screw or spring connection terminals for wiring.
- Easy to use
- Reduces troubleshooting time
- Mechanical durability of 10 million cycles
- Electrical durability of 1,00,000 cycles
- IP20, IP40 and IP50 degree of protection
Specifications
Conformance Attributes
- Product Certifications
- GL, cULus, CSA
Standards2006/95/EC, IEC 61000-6-4, 2004/108/EC, IEC 61000-6-3, IEC 61812-1, IEC 61000-6-2, IEC 61000-6-1
Complementary Attributes
- Impulse Duration
- 100 ms with load in parallel typical, 30 ms typical
- Maximum Switching Current
- 8 A AC/DC
- Minimum Switching Current
- 10 mA 5 V DC
- Maximum Power Consumption In W
- 1.5 W 240 V DC
Line Rated Current5 A
Maximum Switching Voltage250 V AC
Maximum Delay Response100 ms
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch front panel, without test button
- Function Available
- A- Power on-delay relay-1 C/O, Ac- On-delay and off-delay relay w/ control signal-1 C/O, At- Power on-delay relay w/ pause/summation (Y1)-1 C/O, B- Single interval relay w/ control signal-1 C/O, Bw- Double interval relay w/ control signal-1 C/O, C- Off-delay relay w/ control signal-1 C/O, D- Symmetrical flashing relay (starting pulse-off)-1 C/O, Di- Symmetrical flashing relay (starting pulse-on)-1 C/O, H- Interval relay-1 C/O, Ht- Interval relay w/ pause/summation (Y1)-1 C/O
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
- Time Delay Type
- power on-delay - A- Power on-delay relay, on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal, power on-delay - At- Power on-delay relay w/ pause/summation (Y1), interval - B- Single interval relay w/ control signal, interval - Bw- Double interval relay w/ control signal, off-delay - C- Off-delay relay w/ control signal, symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off), symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on), interval - H- Interval relay, interval - Ht- Interval relay w/ pause/summation (Y1), A, Ac, At, B, Bw, C, D, Di, H, Ht, power on-delay, on-delay andinterval, off-delay, symmetrical flashing
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.17936841389121552, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 2 kg CO2 eq., 1.5565700314205309
- Connections Terminals
- spring terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid without cable end, spring terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, spring terminals
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Contacts Material
- cadmium free
- Device Short Name
- RE17R
- Electrical Durability
- 100000 cycles resistive 8 A 250 V AC
- Housing Material
- polycarbonate
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Mechanical Durability
- 10000000 cycles
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Power Consumption In VA
- 0-3 VA 240 V AC
- Product Or Component Type
- modular timing relay
- Returnability
- Yes
- Supply Frequency
- 50...60 Hz +/- 5 %
- Temperature Drift
- +/- 0.05 %/°C
- Vibration Resistance
- 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
- Uc Control Circuit Voltage2
- 12...240 V
- Us Rated Supply Voltage2
- 12...240 V AC/DC 50/60 Hz
- Stocking Flag
- Y
- Pep Code
- ENVPEP1211017EN
- Pep Verification Date
- 2025-10-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- On Load Factor
- 100 %
- Reset Time
- 120 ms on de-energisation typical
- Global Commercial Status
- Commercialised
- Us Rated Supply Voltage5
- 12...240 V AC/DC 50/60 Hz
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
Local SignallingLED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Time Delay Range6...60 min, 6...60 s, 1...10 min, 1...10 h, 0.1...1 s, 10...100 h, 1...10 s
Carbon Footprint Of The Distribution Phase A40.06002881841570492, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.0005717838897834867
Carbon Footprint Of The Use Phase B2 B3 B4 B641 kg CO2 eq., 40.75904111642341
Safety Reliability DataMTTFd = 296.8 years, B10d = 270000
Connections Terminals3spring terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid without cable end, spring terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI121113EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Compatibility CodeRE17
Contacts Type And Composition1 C/O
Dielectric Strength2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Functionalitymultifunction
Immunity To Microbreaks20 ms
MarkingCE
Mounting Positionany position in relation to normal vertical mounting plane
Package Weight Lbs75 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Timer Relays
Shock Resistance15 gn 11 ms IEC 60068-2-27
Sustainable PackagingYes
Total Lifecycle Carbon Footprint43 kg CO2 eq.
Voltage Range0.85...1.1 Us
Uimp Rated Impulse Withstand Voltage25 kV 1.2/50 µs
Medium Descmultifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10h, power on delay, spring terminals, 12...240V AC DC
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionHarmony RE17 timing relay can be set between 0.1 seconds and 100 hours which has an output rating of 8A with 7.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 change over contact SPDT (single pole double throw). It has one of market slimmest form-factors which allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers and product is adhering to international standards.
Energy Model Manufacturing A1 A3 2Electricity Mix; High voltage; 2020; Indonesia, ID
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Global, GLO
Creepage Distance4 kV/3 IEC 60664-1
Operating Rate In Hz10 Hz
Voltage Drift+/- 0.2 %/V
Uimp Rated Impulse Withstand Voltage55 kV 1.2/50 µs
Environment Attributes Main
- Take Back
- Nej, No
- IP Degree Of Protection
- IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C
- Circularity Profile
- ENVEOLI121113EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1211017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Carbon Footprint42.55558016404065
Ambient Air Temperature For Storage-30-60 °C
Environmental DisclosureENVPEP1211017EN
Packaging Without Single Use PlasticYes
Relative Humidity93-93 % without condensation IEC 60068-2-30
Pep Verification Date2025-10-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- modular timing relay
Range Of ProductHarmony Timer Relays
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Nominal Output Current8 A
Input Attributes
- Input Voltage
- 5 V
Specifications
- Country of Origin
- United States
Depth72 mm
