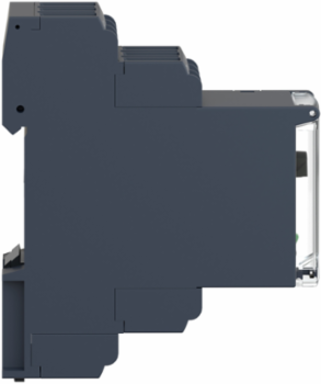

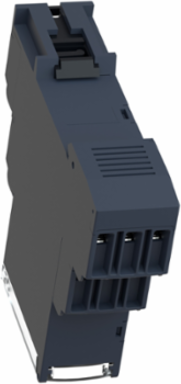

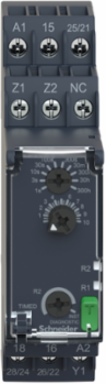

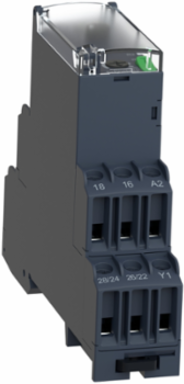

Schneider Electric RE22R2HMR Harmony Dual Function Relay, 8A, 24...240V AC/DC, 22.5mm Width
- MPN: RE22R2HMR
- PPN: SCH-RE22R2HMR
CAD
$123.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

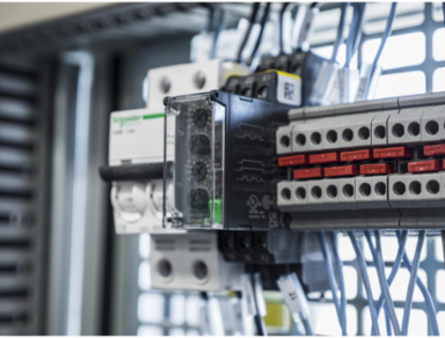

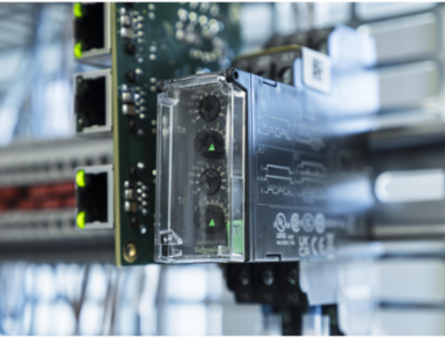

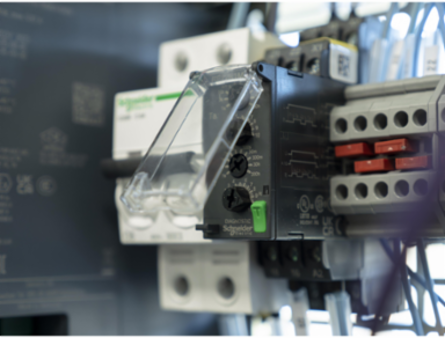

This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours. It provides function H and function Hw and it is mountable on DIN rail. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Sweden
Complementary Attributes
- Minimum Pulse Duration
- 100 ms with load in parallel, 30 ms
- Maximum Delay Response
- 100 ms
- Maximum Switching Voltage
- 250 V AC
Line Rated Current5 A
Maximum Switching Current8 A
Minimum Switching Current10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Type And Composition
- 1 C/O timed contact, cadmium free, 1 C/O timed or instantaneous contact, cadmium free2 C/O
- Electrical Durability
- 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1
- Function Available
- H- Interval relay-2 C/O, Hw- Interval relay w/ retrigger/restart-2 C/O
- Safety Reliability Data
- B10d = 200000, MTTFd = 216.8 years
- Status Led
- Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energisedYellow LED fast flashing)timing in progress and output relay de-energisedYellow LED slow flashing)timing in progress and output relay energised
- Time Delay Range
- 1...10 s, 3...30 h, 10...100 s, 30...300 s, 0.05...1 s, 3...30 min, 0.3...3 s, 3...30 s, 30...300 min, 30...300 h
- Voltage Drift
- +/- 0.2 %/V, +/- 0.2 %/V
- Certificate Agency
- RCM, CSA, CE, EAC, UL, CCC, GL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0135471958, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0005875409
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 52 kg CO2 eq., 51.5032
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Use Carbon Footprint
- 51.5032
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- RE22
- Functionality
- interval timer
- Immunity To Microbreaks
- 10 ms
- Mechanical Durability
- 10000000 cycles
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Overvoltage Category
- III conforming to IEC 60664-1
- Power Consumption In W
- 1.5 W 240 V DC
- Product Or Component Type
- modular timing relay
- Reset Time
- 120 ms on de-energisation
- Shock Resistance
- 15 gn not operating 11 ms IEC 60068-2-275 gn in operation 11 ms IEC 60068-2-27
- Supply Frequency
- 50...60 Hz +/- 5 %
- Switching Capacity In Va
- 2000 VA
- Total Lifecycle Carbon Footprint
- 54 kg CO2 eq.
- Voltage Range
- 0.85...1.1 Us
- Pep Code
- ENVPEP2502020EN
- Pep Verification Date
- 2018-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 15
- [Uc] Control Circuit Voltage
- 24...240 V
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Package Weight(Lbs)
- 114.000 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 584.6
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 186.744
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 897.84
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 130.8
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 130.8
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Typerotary knob, diagnostic buttonpotentiometer external, with test button, with test button
Electromagnetic Compatibilityfast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Repeat Accuracy+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
Temperature Drift+/- 0.05 %/°C, +/- 0.05 %/°C
Time Delay Type- H- relay, - Hw- relay w/ retrigger/restart, H, Hw, interval
Contacts Composition2 C/O
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0633084125, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.0104705323
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2502020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Creepage Distance4 kV/3 IEC 60664-1
Dielectric Strength2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Housing Materialpolycarbonate
Insulation Resistance100 MOhm 500 V DC IEC 60664-1
Mounting Positionany position
Number Of Functions2
Power Consumption In Va3-3 VA 240 V AC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Timer Relays
ReturnabilityYes
Software VersionEIME 5.7.0.2
Sustainable PackagingYes
Tightening Torque0.6-1 N.m IEC 60947-1
Vibration Resistance20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Supply Voltage Num 324...240 V AC/DC 50/60 Hz
Database Version2018-03
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh105.12
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27

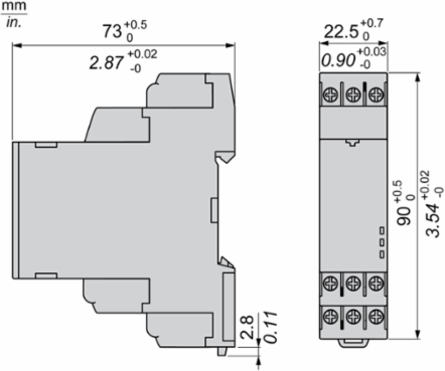

Width Nominal22.5 mm
[Uimp] Rated Impulse Withstand Voltage5 kV 1.2-50 µs IEC 60664-1
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]2216.72
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]51.5032
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]192.024
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1028.64
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]897.84
Water Pollution (M3) Operational Energy Use [B6]2125.2
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Directives
- 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2502020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2502020EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint53.5911136816
Environmental DisclosureENVPEP2502020EN
Ip Degree Of ProtectionIP40 housing: conforming to IEC 60529IP20 terminals: conforming to IEC 60529IP50 front panel: conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 25-55 °C
Pep Verification Date2018-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- modular timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Nominal Output Current8 A
Input Attributes
- Input Voltage
- <= 2.4 V, <= 2.4 V
