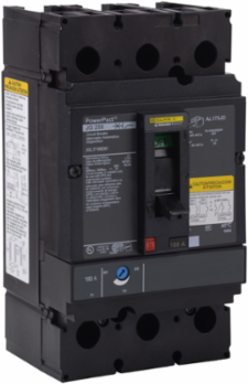

Square D LLL37030D27 PowerPacT L Circuit Breaker 300A 3-Pole 500VDC 50kA Thermal-Magnetic
Square D LLL37030D27 PowerPacT L Circuit Breaker 300A 3-Pole 500VDC 50kA Thermal-Magnetic
- MPN: LLL37030D27
- PPN: SCH-LLL37030D27
- UNSPSC: 39121616
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

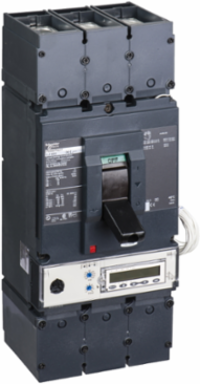

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 300A, 3 pole, circuit breaker has an interrupting rating of 50kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- Available in 3 or 4 pole design
- Protection from overloads and short circuits
- Common accessories across the range
- Used as main panel disconnect for control panel
- UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked
Specifications
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Wire Stripping Length
- 31 mm, 61 mm
ColorBlack
Conformance Attributes
- Product Certifications
- UL, CSA, NOM
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
Complementary Attributes
- Line Rated Current
- 300-300 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Ics Rated Service Breaking Capacity5
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Circuit Breaker Application
- HACR rated
- Device Application
- distribution
- Energy Efficiency Optimized
- False
- Magnetic Tripping Current
- 750-1500 A
- Mounting Support
- lug
- Poles Description
- 3P
- Product Or Component Type
- circuit breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
- Utilisation Category
- category A
- Ue Rated Operational Voltage2
- 500 V DC
- Uimp Rated Impulse Withstand Voltage2
- 8 kV IEC 60947-2
- Stocking Flag
- Y
- Pep Code
- ENVPEP1406010EN
- Product Name
- PowerPact L
- Ui Rated Insulation Voltage5
- 750 V IEC 60947-2
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Ics Rated Service Breaking Capacity2125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1406010EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG Gauge2 x AWG 2/0...500 kcmil aluminium/copper
Control Typetoggle
Device Short NameL-Frame
Local Signallingswitched off (OFF) 1 trip indicator green)
Mounting Modeunit mount lug)
Package Weight Lbs6.804 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePowerPact
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL600LS52K3
Trip Unit Technologythermal-magnetic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2750 V IEC 60947-2
Medium DescCircuit breaker, PowerPacT L, 300A, 3 pole, 500VDC, 50kA, lugs, thermal magnetic, 80%
Product Kit IdentifierN
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5500 V DC
Uimp Rated Impulse Withstand Voltage58 kV IEC 60947-2
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude
- < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -50-85 °C
- Environmental Disclosure
- ENVPEP1406010EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Ambient Air Temperature For Operation-25-70 °C
Circularity ProfileENVEOLI1406010EN
IP Degree Of Protectionfront cover IP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1406010EN
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 110 mm
Downloads
