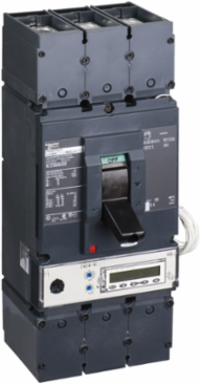

Square D LLL37040D30 PowerPacT L Circuit Breaker, 400A, 3 Pole, 500VDC, 50kA
Square D LLL37040D30 PowerPacT L Circuit Breaker, 400A, 3 Pole, 500VDC, 50kA
- MPN: LLL37040D30
- PPN: SCH-LLL37040D30
- UNSPSC: 39121616
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- Available in 3 or 4 pole design
- Protection from overloads and short circuits
- Common accessories across the range
- Used as main panel disconnect for control panel
- UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked
- The PowerPact L-frame circuit breaker is compliant with standards IEC 60947-2 and UL 508/CSA 22.3 N°14, with UL 489.
Specifications
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Wire Stripping Length
- 31 mm, 61 mm
ColorBlack
Conformance Attributes
- Product Certifications
- UL, CSA, NOM
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Carbon Footprint Of The Distribution Phase A4
- 1.966271580566898, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1.8967904693791804, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 005 kg CO2 eq., 1005.3828384868019
- Local Data Status
- Publishable
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2206029_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- AWG Gauge
- 2 x AWG 2/0...500 kcmil aluminium/copper
- Control Type
- toggle
- Device Short Name
- L-Frame
- Local Signalling
- switched off (OFF) 1 trip indicator green)
- Mounting Mode
- unit mount lug)
- Package Weight Lbs
- 6.804 kg
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PowerPact
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL600LS52K3
- Total Lifecycle Carbon Footprint
- 1 063 kg CO2 eq.
- Utilisation Category
- category A
- Ue Rated Operational Voltage2
- 500 V DC
- Uimp Rated Impulse Withstand Voltage2
- 8 kV IEC 60947-2
- Stocking Flag
- N
- Pep Code
- ENVPEP2206029EN
- Pep Verification Date
- 2027-09-06
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Product Name
- PowerPact L
- Ui Rated Insulation Voltage5
- 750 V IEC 60947-2
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Ics Rated Service Breaking Capacity2125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End Of Life Phase C1 To C410 kg CO2 eq., 10.302971150240523
Carbon Footprint Of The Manufacturing Phase A1 To A344 kg CO2 eq., 43.82880551360121
Ics Rated Service Breaking Capacity5125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Local Publishable Date2025-11-18
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Circuit Breaker ApplicationHACR rated
Device Applicationdistribution
Energy Efficiency OptimizedFalse
Magnetic Tripping Current1000-2000 A
Mounting Supportlug
Poles Description3P
Product Or Component Typecircuit breaker
ReturnabilityYes
Sustainable PackagingNo
Tightening Torque50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
Trip Unit Technologythermal-magnetic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2750 V IEC 60947-2
Medium DescCircuit breaker, PowerPacT L, 400A, 3 pole, 500VDC, 50kA, lugs, thermal magnetic, 80%
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; United States, US
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5500 V DC
Uimp Rated Impulse Withstand Voltage58 kV IEC 60947-2
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude
- < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-70 °C
- Circularity Profile
- ENVEOLI2206029_V2
- IP Degree Of Protection
- front cover IP40
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2206029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint1063.37767720059
Ambient Air Temperature For Storage-50-85 °C
Environmental DisclosureENVPEP2206029EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2027-09-06
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 110 mm
