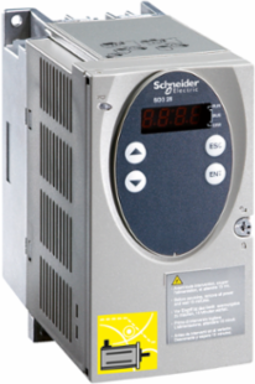

Schneider Electric SD328AU68S2 Lexium SD3 Motion Control Stepper Motor Drive, 6.8A, 3000RPM, 420W
- MPN: SD328AU68S2
- PPN: SCH-SD328AU68S2
CAD
$2040.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated analogue input, Modbus fieldbus and CANopen fieldbus communication interface. High torque is available even at low speeds. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 6.8A, a nominal power of 420W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is furnished with RJ45 connector for CANopen interface, RJ45 connector for Modbus interface, spring terminal for CANopen interface for electrical connection. It is provided with fan cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.2kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, TUV, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth140 mm
Communications & Management Attributes
- Communication Interface
- analogue input, Integrated, Modbus fieldbus, Integrated, CANopen fieldbus, Integrated
Communication Service1 PDO configurable CANopen, 2 SDOs receive CANopen, 2 SDOs send CANopen, 3 PDOs as per DSP 402 CANopen, CiA DSP 402 profile CANopendiagnostics (08) Modbus, emergency CANopen, note guarding, heartbeat CANopen, read device identification (43) Modbus, read hold register (03), maximum 63 words Modbus, read/write multiple registers (23), maximum 63/59 words Modbus, write multiple registers (16), maximum 61 words Modbus, write single register (06) Modbus
Complementary Attributes
- Maximum Voltage Drop
- <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals<1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals
- Maximum Leakage Current
- 30 mA <10 m IEC 60990-3
- Maximum Motor Phase Current
- 6.8 A
- Maximum Switching Current
- 50 mA 24 V output signals)
Maximum Input Frequency200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction400 kHz signal input ENC_A, ENC_B, ENC_I A/B
Maximum Mechanical Speed3000 rpm
Maximum Output Frequency400 kHz pulse/direction interface A/B200 kHz pulse/direction interface pulse/direction
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- <= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage5 A 230 V main supply7 A 115 V main supply, <= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage
- Electrical Connection
- connector RJ45 CANopen interface, connector RJ45 Modbus interface, spring terminal CANopen interface
- Local Signalling
- 1 LED - ERR CANopen, 1 LED - RUN CANopen
- Power Losses
- <= 65 W, <= 65 W
- Safety Function
- safe torque off safety function system process IEC/EN 61800-5-2safe torque off safety function machine IEC/EN 61800-5-2, safe torque off safety function machine ISO 13849-1 level dsafe torque off safety function system process EN/IEC 61508 level SIL2
- Supply Voltage Limits
- 200-240 V, 100-120 V
- Certificate Agency
- UL, cUL, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4679202592766975, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.5082038485444439, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 019 kg CO2 eq., 1019.3826348537897
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Bus Type
- fieldbus
- Device Short Name
- SD328
- Inrush Current
- 60 A
- Marking
- CE
- Mode Of Transmission
- RTU Modbus
- Network Number Of Phases
- 1
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium SD3
- Returnability
- No
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Transmission Rate
- 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen9600, 19200, 38400 bps Modbus
- Vibration Resistance
- 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP1111015EN
- Pep Verification Date
- 2026-07-02
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Production mix; low voltage; 2022; Germany, DE
- Energy Model - Use [B6]
- Electricity mix; Consumption mix; Low voltage; 2022; Germany, DE
- Recyclability Potential In %
- 98
- Width Nominal
- 72 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504404000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Data Format8 bits, 1 stop, even parity Modbus, 8 bits, no parity, 1 stop Modbus, 8 bits, no parity, 2 stop Modbus, 8 bits, odd parity, 1 stop Modbus
Electromagnetic Compatibilityelectrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
Number Of Addresses1-127 CANopen, 1-247 Modbus
Residual Ripple< 5 % 24 V control voltage), < 5 % 24 V control voltage)< 5 % 24 V control voltage), < 5 % 24 V control voltage)
Supply Voltage Descriptionsingle phase 230 V, single phase 115 V
Voltage State 0 Guaranteed-3...5 V 24 V input signals, -3...5 V 24 V input signals-3...5 V 24 V input signals, -3...5 V 24 V input signals
[Us] Rated Supply Voltage100...120 V - 15...10 %, 200...230 V - 15...10 %
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.0016309243406663
Carbon Footprint Of The Manufacturing Phase [A1 To A3]97 kg CO2 eq., 96.95598796910491
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI111103EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Associated Fuse Rating10 A 115 V6 A 230 V
Compatibility CodeSD328
Format Of The Driveblock
Installed Device127 stepper motor drives CANopen31 stepper motor drives Modbus
Method Of Accessslave CANopen
Network Frequency Limits50-60 Hz - 15...10 %)
Nominal Power280 W 115 V420 W 230 V
Phasesingle phase
Product Or Component Typemotion stepper drive
Resistance5 kOhm pulse/direction interface)10 kOhm analogue input signals)
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage TypeAC/DC
Total Lifecycle Carbon Footprint1 119 kg CO2 eq.
Type Of Coolingfan
Voltage State 1 Guaranteed15...30 V 24 V input signals
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo drive 3-phase stepper motors 70% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1971
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal145 mm
Short-circuit Current0.5 kA
Package Weight(Lbs)1.332 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Disclosure
- ENVPEP1111015EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1111015EN
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20, on upper part: IP40 (without removal of protective film)
Take BackNo
China Rohs RegulationX
Carbon Footprint1119.3163778550563
Circularity ProfileENVEOLI111103EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-85 % without condensation
Pep Verification Date2026-07-02
Psr VersionNo PSR
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium SD3
Product Or Component Typemotion stepper drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Output Voltage
- <= 30 V 24 V output signals), <= 30 V 24 V output signals)<= 30 V 24 V output signals), <= 30 V 24 V output signals)4.75...5.25 V ENC+5V_OUT signal output)
Maximum Output Frequency400 kHz pulse/direction interface A/B200 kHz pulse/direction interface pulse/direction
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- -10...10 V analogue input signals, -10...10 V analogue input signals, 24 V -15 %/+20 % 24 V control voltage, -10...10 V analogue input signals, -10...10 V analogue input signals
- Input Current
- 10 mA 24 V input signals
Analogue Input Typevoltage - 10...10 V 14 bits 0.25 ms
Maximum Input Frequency200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction400 kHz signal input ENC_A, ENC_B, ENC_I A/B
