Lexium SD3 Motion Control Stepper Motor Drive, 2.5 A, IP20/IP40, 3000 RPM
Schneider Electric

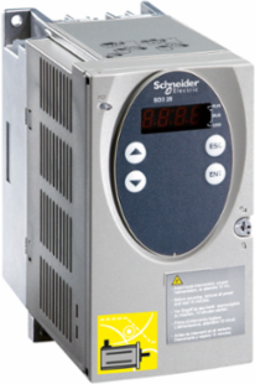

Schneider Electric SD328BU25S2 Lexium SD3 Motion Control Stepper Motor Drive, 2.5 A, IP20/IP40, 3000 RPM

  • MPN: SD328BU25S2
  • PPN: SCH-SD328BU25S2

CAD

$2770.83

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Lexium SD3 Motion Control Stepper Motor Drive, 2.5 A, IP20/IP40, 3000 RPM

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Germany, France, United States
Depth140 mm

Communications & Management Attributes

Communication Interface
Profibus DP fieldbus, Integrated

Complementary Attributes

Maximum Input Frequency
200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction, 400 kHz signal input ENC_A, ENC_B, ENC_I A/B
Maximum Voltage Drop
<1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals<1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals
Maximum Mechanical Speed
3000 rpm
Maximum Switching Current
50 mA 24 V output signals)
Maximum Output Frequency400 kHz pulse/direction interface A/B, 200 kHz pulse/direction interface pulse/direction
Maximum Leakage Current30 mA <10 m IEC 60990-3
Maximum Motor Phase Current2.5 A

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Associated Fuse Rating
6 A 115 V, 6 A 230 V
Electromagnetic Compatibility
electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
Power Losses
<= 26 W, <= 26 W
Safety Function
safe torque off safety function system process IEC/EN 61800-5-2safe torque off safety function machine IEC/EN 61800-5-2, safe torque off safety function machine ISO 13849-1 level d, safe torque off safety function system process EN/IEC 61508 level SIL2
Supply Voltage Limits
200-240 V, 100-120 V
Voltage State 0 Guaranteed
-3...5 V 24 V input signals, -3...5 V 24 V input signals-3...5 V 24 V input signals, -3...5 V 24 V input signals
[Us] Rated Supply Voltage
100...120 V - 15...10 %, 200...230 V - 15...10 %
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.53452, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
26 kg CO2 eq., 25.785
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
Yes
Field Service Division
IDIBS
Manufacturing Carbon Footprint
25.785
Weee Scope
Out
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI111103EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1901
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Advanced
Market Segmentation
Industrial
Bus Type
fieldbus
Device Short Name
SD328
Inrush Current
60 A
Network Frequency Limits
50-60 Hz - 15...10 %)
Overvoltage Category
III
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
Lexium SD3
Returnability
No
Software Version
EIME v5.6.0.1
Sustainable Packaging
No
Type Of Cooling
natural convection
Pep Code
ENVPEP1111015EN
Pep Verification Date
2020-10-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
To drive 3-phase stepper motors 70% of the time for 10 years
Functional-unit Unit
unité (unit)
Energy Consumption On Product Lifetime, In Kwh
788.4
Energy Model - Installation [A5]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Height Nominal
145 mm
Short-circuit Current
0.5 kA
Nbr. Of Units In Pkg.
1
Take-back
No
Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle
1.6623
Air Pollution (M3) Total Life Cycle
19269
Air Pollution (M3) Distribution [A4]
6.8936
Air Pollution (M3) Operational Energy Use [B6]
16625
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
4666.3
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
2.2767
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
1.6796
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
25.785
Hazardous Waste Disposed Of (Kg) Total Life Cycle
11.553
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
1.9397
Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
0.1664
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
1451.8
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
1440.2
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
352.82
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
6733.7
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
8085.1
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
2.2913
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
2.0545
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
13.077
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
9.6652
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
7081.3
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
2.2882
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
2.0526
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
3.2831
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
9.7935
Water Pollution (M3) Total Life Cycle
18259
Water Pollution (M3) Distribution [A4]
26.649
Water Pollution (M3) Operational Energy Use [B6]
15939
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Current Consumption<= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage3 A 230 V main supply, 4 A 115 V main supply, <= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage
Nominal Power180 W 115 V, 270 W 230 V
Residual Ripple< 5 % 24 V control voltage), < 5 % 24 V control voltage)< 5 % 24 V control voltage), < 5 % 24 V control voltage)
Supply Voltage Descriptionsingle phase 230 V, single phase 115 V
Vibration Resistance1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
Certificate AgencyUL, cUL, TÃœV
Carbon Footprint Of The Distribution Phase [A4]0.16205, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.010404
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]386 kg CO2 eq., 386.27
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Use Carbon Footprint386.27
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Compatibility CodeSD328
Format Of The Driveblock
MarkingCE
Network Number Of Phases1
Phasesingle phase
Product Or Component Typemotion stepper drive
Resistance5 kOhm pulse/direction interface)
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage TypeAC/DC
Total Lifecycle Carbon Footprint413 kg CO2 eq.
Voltage State 1 Guaranteed15...30 V 24 V input signals
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Recyclability Potential, In %50
Width Nominal72 mm
Carbon Footprint (Kg Co2 Eq, Total Life Cycle)412.77
Package Weight(Lbs)1.240 kg
Warranty (In Months)18
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]1.6113
Air Pollution (M3) Manufacturing [A1-a3]2622.2
Air Pollution (M3) Installation [A5]0.4155
Air Pollution (M3) End Of Life [C1-c4]14.46
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]277.72
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]4384.5
Global Warming (Kg.Equivalent.Co2) Total Life Cycle412.77
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]386.27
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]9.4119
Net Use Of Fresh Water (M3) Total Life Cycle1400.8
Net Use Of Fresh Water (M3) Operational Energy Use [B6]1400.6
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]11.602
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle7091
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]2.2882
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]2.0526
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]365.89
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]7714.7
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle994.08
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]981
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]9.6652
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]343.15
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]6733.7
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.2831
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle990.8
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]981
Water Pollution (M3) Manufacturing [A1-a3]2265.2
Water Pollution (M3) Installation [A5]1.5843
Water Pollution (M3) End Of Life [C1-c4]26.574

Environment Attributes Main

Ambient Air Temperature For Storage
-25-70 °C, -25-70 °C
Operating Altitude
<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Ambient Air Temperature For Operation
0-50 °C
Environmental Disclosure
ENVPEP1111015EN
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Code
ENVPEP1111015EN
Pcr Version
PCR-ed3-EN-2015 04 02
Ip Degree Of ProtectionIP20, on upper part: IP40 (without removal of protective film)
Take BackNo
China Rohs RegulationX
Carbon Footprint412.77
Circularity ProfileENVEOLI111103EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-85 % without condensation
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review

General Attributes

Phase
single phase
Range Of Product
Lexium SD3
Product Or Component Typemotion stepper drive

ETIM

ETIM 8
EC001857
ETIM 9EC001857

Output Attributes

Maximum Output Frequency
400 kHz pulse/direction interface A/B, 200 kHz pulse/direction interface pulse/direction
Output Voltage<= 30 V 24 V output signals), <= 30 V 24 V output signals)<= 30 V 24 V output signals), <= 30 V 24 V output signals), 4.75...5.25 V ENC+5V_OUT signal output)

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Input Attributes

Maximum Input Frequency
200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction, 400 kHz signal input ENC_A, ENC_B, ENC_I A/B
Input Voltage
24 V -15 %/+20 % 24 V control voltage
Input Current10 mA 24 V input signals
