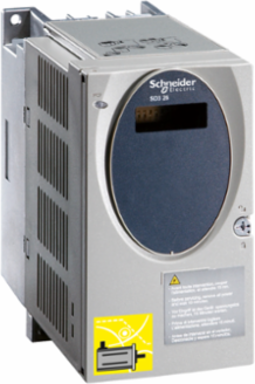

Schneider Electric SD326RU25S2 Lexium SD3 Motion Control Stepper Motor Drive, 2.5 A, 3000 RPM, 1.1 kg
- MPN: SD326RU25S2
- PPN: SCH-SD326RU25S2
CAD
$1722.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 240V, a maximum motor phase current of 2.5A, a nominal power of 180W at 115V, 270W at 230V. It features natural convection cooling. The maximum mechanical speed of motor drive is 3000RPM. It is an IP20 and IP40 rated product. Its dimensions are 72mm (width) x 140mm (depth) x 145mm (height). It weighs 1.1kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This product is certified by CE, CUL and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3, EN/IEC 61800-3 environment 1/2 and EN/IEC 50178 standards. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth140 mm
Communications & Management Attributes
- Communication Interface
- pulse/direction, Integrated
Complementary Attributes
- Maximum Input Frequency
- 200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals, 400 kHz ENC_A/ENC_B signal input
- Maximum Voltage Drop
- <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output<1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load ENC+5V_OUT signal output, <1 V 50 mA load readiness signal output
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Switching Voltage
- 30 V DC readiness signal output)
Maximum Switching Current200 mA readiness signal output), 50 mA 24 V output signals)RM-FAULT_OUT, 1.7 mA 24 V output signals)+BRAKE_OUT
Maximum Leakage Current30 mA IEC 60990-3
Maximum Motor Phase Current2.5 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Associated Fuse Rating
- 6 A 115 V, 6 A 230 V
- Electromagnetic Compatibility
- electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
- Nominal Power
- 180 W 115 V, 270 W 230 V
- Supply Voltage Description
- single phase 230 V, single phase 115 V
- Vibration Resistance
- 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
- Voltage State 1 Guaranteed
- 15...30 V 24 V optocoupler input signals, 2.5...5.25 V 5 V optocoupler input signals
- [Us] Rated Supply Voltage
- 100...120 V - 15...10 %, 200...230 V - 15...10 %
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5340944268, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 26 kg CO2 eq., 25.7644705414
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Use Carbon Footprint
- 540.778
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Device Short Name
- SD326
- Inrush Current
- 60 A
- Network Frequency Limits
- 50-60 Hz - 15...10 %)
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium SD3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Voltage Type
- AC/DC
- Total Lifecycle Carbon Footprint
- 567 kg CO2 eq.
- Pep Code
- ENVPEP1111015EN
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To drive 3-phase stepper motors 70% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 1103.76
- Energy Model - Installation [A5]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Width Nominal
- 72 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 23275
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 540.778
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2016.28
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 10800.58
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 9427.18
- Water Pollution (M3) Operational Energy Use [B6]
- 22314.6
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Current Consumption<= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage<= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage
Function Availablerotation monitoring, holding brake monitoring
Residual Ripple<= 5 % 24 V control voltage), <= 5 % 24 V control voltage)<= 5 % 24 V control voltage), <= 5 % 24 V control voltage)
Supply Voltage Limits200-240 V, 100-120 V
Voltage State 0 Guaranteed<= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals<= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals
Certificate AgencyUL, cUL
Carbon Footprint Of The Distribution Phase [A4]0.1619209793, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0103957166
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]541 kg CO2 eq., 540.778
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI111103EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Compatibility CodeSD326
Format Of The Driveblock
MarkingCE
Network Number Of Phases1
Phasesingle phase
Product Or Component Typemotion stepper drive
ReturnabilityNo
Software VersionEIME v5.6.0.1
Sustainable PackagingNo
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Height Nominal145 mm
Short-circuit Current0.5 kA
Package Weight(Lbs)1.242 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]6138.3
Net Use Of Fresh Water (M3) Operational Energy Use [B6]1960.84
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]9427.18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1373.4
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1373.4
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C0-40 °C UL
- Environmental Disclosure
- ENVPEP1111015EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1111015EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ip Degree Of ProtectionIP20, on upper part: IP40 (without removal of protective film)
Take BackNo
China Rohs RegulationX
Carbon Footprint567.248881664
Circularity ProfileENVEOLI111103EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-85 % without condensation
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium SD3
Product Or Component Typemotion stepper drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Output Voltage
- <= 30 V 24 V output signals), <= 30 V 24 V output signals)<= 30 V 24 V output signals), <= 30 V 24 V output signals), 4.75...5.25 V ENC+5V_OUT signal output)
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 25 mA 5 V optocoupler input signals, 7 mA 24 V optocoupler input signals
- Input Voltage
- 24 V -15 %/+20 % 24 V control voltage
Maximum Input Frequency200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals, 400 kHz ENC_A/ENC_B signal input
