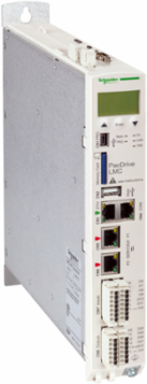

Schneider Electric LMC201CAA10000 Motion Controller 8 Axis, 24VDC, 2.2kg, IP20

MPN: LMC201CAA10000
PPN: SCH-LMC201CAA10000

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 8 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Depth	222 mm

Complementary Attributes

Integrated Connection Type	2 Ethernet port RJ45 Sercos1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 master encoder1 serial link RJ45 RS232/RS485, 1 CAN port SUB-D 9 CANopen1 USB port USB type A
Maximum Leakage Current	0.5 mA

Maximum Cable Distance Between Devices	<50 m<50 m

Important Information Attributes

Persona Type Ids	EU, OM
Anti Bounce Filtering	100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable interrupt input
Certificate Agency	cULus, CSA, CE, EAC
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	PLC System - PLC CPU
Traceability	Yes
Average Life Duration	20 year(s)
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403026EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier Id	3
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Number Of Axis	8
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	PacDrive 3
Shock Resistance	150 m/s² 6 ms operation)IEC 60721-3-3
Sustainable Packaging	No
Pep Code	ENVPEP1403026EN
Width Nominal	44 mm
Maximum Number Of I/O Expansion Module	1
Package Weight(Lbs)	2.208 kg
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer
Programming Language	LD (ladder), SFC (sequential function chart), ST (structured text), CFC (continuous function chart), FBD (function block diagram), IL (instruction list)
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	3
Function Option	Advanced
Market Segmentation	Industrial
Memory Type	512 MB RAM DDR2128 kB NVRAM
Power Consumption In W	30 W
Product Or Component Type	Motion controller
Returnability	No
Supply	power supply 24 VDC
Vibration Resistance	3.5 mm 5-8.4 Hz10 m/s² 8.4-150 Hz
Height Nominal	270 mm
[Us] Rated Supply Voltage	24 V DC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	5-55 °C
Environmental Disclosure	ENVPEP1403026EN
Ip Degree Of Protection	IP20IEC 60529
Packaging Made With Recycled Cardboard	No
Product Compatibility	LMC201
Relative Humidity	5-95 % without condensation

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1403026EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403026EN

General Attributes

Product Or Component Type	Motion controller

Range Of Product	PacDrive 3

ETIM

ETIM 8	EC000236

ETIM 9	EC000236

Output Attributes

Discrete Output Current	500 mA digital output

Discrete Output Number	8 digital output

Surge Protection And Filtering Attributes

Anti Bounce Filtering	100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable interrupt input
