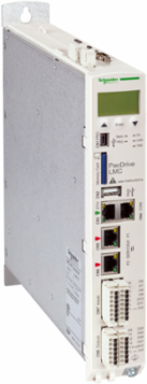

Schneider Electric LMC106CAA10000 Motion Controller 6 Axis, 24VDC, 2.2kg, IP20

MPN: LMC106CAA10000
PPN: SCH-LMC106CAA10000
UNSPSC: 39121021

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 6 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

Features

Fully-integrated software designs
Program simulation for faster development and commissioning
Integrated diagnostic functions
Plug and play solution
Standard winding type

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Mexico
Depth	222 mm

Weight	2213 g

Complementary Attributes

Integrated Connection Type	2 Ethernet port RJ45 Sercos1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 master encoder1 serial link RJ45 RS232/RS485, 1 CAN port SUB-D 9 CANopen1 USB port USB type A
Maximum Leakage Current	0.5 mA

Maximum Cable Distance Between Devices	<50 m<50 m
Us Rated Supply Voltage	24 V DC

Important Information Attributes

Persona Type Ids	EU, OM
Anti Bounce Filtering	100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable interrupt input
Certificate Agency	cULus, CSA, CE, EAC
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 2.156845286437536
Carbon Footprint Of The Manufacturing Phase A1 To A3	12 kg CO2 eq., 12.370165199285603
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	3
Function Option	Advanced
Market Segmentation	Industrial
Memory Type	512 MB RAM DDR2128 kB NVRAM
Power Consumption In W	30 W
Product Or Component Type	Motion controller
Returnability	Yes
Software Version	v6.2.5-6
Sustainable Packaging	No
Vibration Resistance	3.5 mm 5-8.4 Hz10 m/s² 8.4-150 Hz
Data Source	extrapolated product
Width Nominal	44 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	70

Persona Type Names	End User, Original Equipment Manufacturer
Programming Language	LD (ladder), ST (structured text), SFC (sequential function chart), FBD (function block diagram), CFC (continuous function chart), IL (instruction list)
Carbon Footprint Of The Distribution Phase A4	0.637651505523449, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.235856045789301, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	452 kg CO2 eq., 451.5004460493924
Local Publishable Date	2026-08-06
Device Type	Motion - motion controller
Traceability	Yes
Average Life Duration	15 year(s)
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403026EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier Id	3
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Number Of Axis	6
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	PacDrive 3
Shock Resistance	150 m/s² 6 ms operation)IEC 60721-3-3
Supply	power supply 24 VDC
Total Lifecycle Carbon Footprint	468 kg CO2 eq.
Database Version	2024-01
Height Nominal	270 mm
Maximum Number Of I/O Expansion Module	1
Customs Code	8537109160
Functional Unit Description	To control Servo Drives and Servo Motors with motion functionality with 12 W with 100% active mode.To control Servo Drives and Servo Motors with motion functionality with 12 W with 100% active mode.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1051.2

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	467.9009640864283
Circularity Profile	ENVEOLI1403026EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403026EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	5-55 °C
Environmental Disclosure	ENVPEP1403026EN
Ip Degree Of Protection	IP20IEC 60529
Packaging Made With Recycled Cardboard	No
Product Compatibility	LMC106
Relative Humidity	5-95 % without condensation
Pep Verification Date	2026-07-29
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
