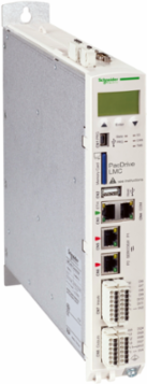

Schneider Electric LMC201CAA150RC Motion Controller with 80 License Points, 8 Axis, 512 MB RAM, IP20
- MPN: LMC201CAA150RC
- PPN: SCH-LMC201CAA150RC
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This advanced motion controller from Schneider Electric is designed to enhance automation and control processes with its robust features. Equipped with 80 license points and capable of managing 8 axes, it offers substantial flexibility for diverse applications in industrial settings. With 512 MB of RAM, it ensures efficient operation and quick response times, enabling precise control over complex machinery and systems. Furthermore, its IP20 rating indicates suitability for indoor use, making it a reliable choice for environments where protection from dust and solid objects is essential. Whether for PLC operations, HMI integration, or data acquisition tasks, this motion controller stands out for its reliability and performance in modern automation solutions.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | PacDrive 3 |
|---|
| Product Or Component Type | motion controller |
|---|
Complementary
| Anti Bounce Filtering | 100 µs...4.29 s configurable digital input || 100 µs...4.29 s configurable touch probe input || 100 µs...4.29 s configurable interrupt input |
|---|---|
| Memory Type | 512 MB RAM DDR2 || 128 kB NVRAM |
| Height | 270 mm |
| Discrete Input Voltage | 3...5 V || 15...30 V |
| Integrated Connection Type | 2 Ethernet port RJ45 Sercos || 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP || 1 Ethernet port RJ45 master encoder || 1 serial link RJ45 RS232/RS485 || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A |
| Discrete Input Current | 4 mA digital input |
| Discrete Output Number | 8 digital output |
| Depth | 222 mm |
| Supply | power supply 24 VDC |
| Maximum Leakage Current | 0.5 mA |
| Discrete Output Current | 500 mA digital output |
| Maximum Number Of I/O Expansion Module | 1 |
| [Us] Rated Supply Voltage | 24 V DC |
|---|---|
| Maximum Cable Distance Between Devices | <50 m |
| Type Of License | 80 license point(s) |
| Programming Language | FBD (function block diagram) || LD (ladder) || IL (instruction list) || SFC (sequential function chart) || CFC (continuous function chart) || ST (structured text) |
| Discrete Input Voltage Type | DC |
| Power Consumption In W | 30 W |
| Width | 44 mm |
| Product Compatibility | LMC201 |
| Number Of Axis | 8 |
| Net Weight | 2.2 kg |
| Discrete Input Number | 8 digital input IEC 61131-2 Type 1 || 4 touch probe input IEC 61131-2 Type 1 |
Environment
| Product Certifications | EAC || CSA || CE || cULus |
|---|---|
| Standards | CSA C22.2 No 142 || EN/IEC 61131-2 || UL 508 || CSA C22.2 No 14 |
| Ambient Air Temperature For Operation | 5-55 °C |
| Vibration Resistance | 3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz |
| Operating Altitude | 0...2000 m |
| Pollution Degree | 2 IEC 61131-2 |
|---|---|
| Relative Humidity | 5-95 % without condensation |
| Ip Degree Of Protection | IP20EN/IEC 60529 |
| Shock Resistance | 150 m/s² 6 ms operation)EN/IEC 60721-3-3 |
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1403026EN |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1403026EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
