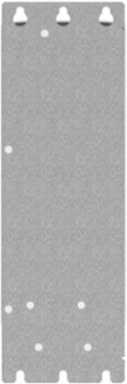

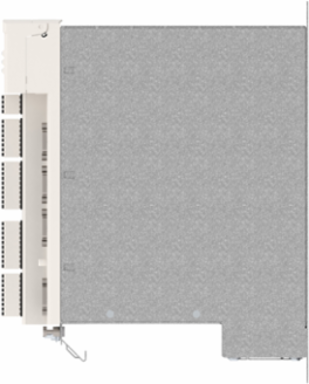

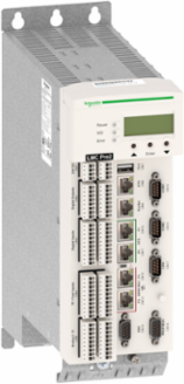

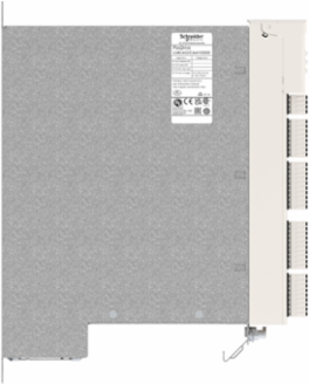

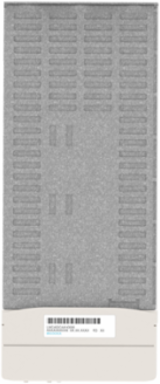

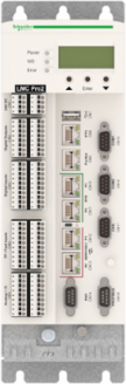

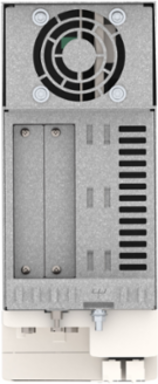

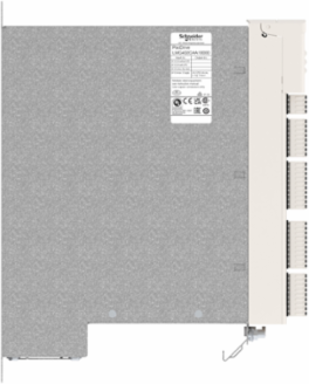

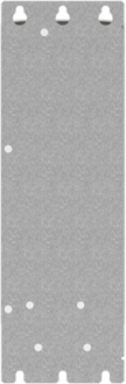

Schneider Electric LMC402CAA10000 Motion Controller 16 Axis, IP20, 24VDC, 36W, 3.5kg
- MPN: LMC402CAA10000
- PPN: SCH-LMC402CAA10000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 16 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- PacDrive 3
Product Or Component Typemotion controller
Complementary
- Analogue Input Number
- 2
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input
- Memory Type
- 256 kB NVRAM || 1 GB RAM DDR3L
- Discrete Input Voltage
- 0...6 V || 20...33 V
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link SUB-D 9 RS422/RS485 || 1 port SUB-D 9 master encoder || 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
- Discrete Input Current
- 5 mA digital input || 5 mA interrupt input || 5 mA touch probe input
- Analogue Input Resolution
- 12 bits
- Width
- 100 mm
- Product Compatibility
- LMC402
- Supply
- power supply 24 VDC, <1 A
- Maximum Leakage Current
- 0.4 mA
- Discrete Output Current
- 250 mA digital output
- Maximum Number Of I/O Expansion Module
- 2
Input Impedance100000 Ohm analog input || 500 Ohm
[Us] Rated Supply Voltage24 V DC
Height310 mm
Programming LanguageFBD (function block diagram) || CFC (continuous function chart) || SFC (sequential function chart) || ST (structured text) || IL (instruction list) || LD (ladder)
Discrete Input Voltage TypeDC
Power Consumption In W36 W
Discrete Output Number16 digital output || 2 analog output
Depth243 mm
Analogue Input Typevoltage analog input - 10...10 V || current analog input - 20...20 mA
Number Of Axis16
Net Weight3.5 kg
Discrete Input Number20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1
Environment
- Product Certifications
- cULus || CE || EAC || CSA
- Standards
- EN/IEC 61131-2 || CSA C22.2 No 274 || UL 508C || CSA C22.2 No 14
- Ambient Air Temperature For Operation
- 5-55 °C
- Vibration Resistance
- 3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz
Pollution Degree2 IEC 61131-2
Relative Humidity5-95 % without condensation
Ip Degree Of ProtectionIP20EN/IEC 60529
Shock Resistance150 m/s² 6 ms operation)EN/IEC 60721-3-3
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1411004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1411004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
