Motion Controller 16 Axis, 24V DC, 3.5 kg, IP20, 36W
Schneider Electric

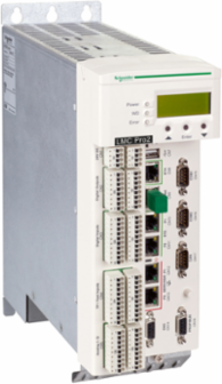

Schneider Electric LMC402CBI10000 Motion Controller 16 Axis, 24V DC, 3.5 kg, IP20, 36W

  • MPN: LMC402CBI10000
  • PPN: SCH-LMC402CBI10000
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric LMC402CBI10000 Motion Controller is a highly capable device designed for sophisticated automation and control applications. With the capacity to manage up to 16 axes, this motion controller operates at 24V DC and is engineered to deliver precise control essential for various industrial tasks. Its compact design, combined with an IP20 rating, ensures durability while providing versatility for integration into diverse environments. Offering a nominal power consumption of 36W, it stands out in both efficiency and performance, making it a valuable addition to any PLC, HMI, or data acquisition setup.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France
Depth243 mm

Complementary Attributes

Integrated Connection Type
2 Ethernet port RJ45 Sercos1 CAN port SUB-D 9 CANopen1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet1 port SUB-D 9 Profibus DP1 COM1 serial link SUB-D 9 RS2321 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
Maximum Leakage Current0.4 mA

Important Information Attributes

Persona Type Ids
EU, OM
Programming Language
SFC (sequential function chart), LD (ladder), FBD (function block diagram), CFC (continuous function chart), IL (instruction list), ST (structured text)
Carbon Footprint Of The Distribution Phase [A4]
0.6283431536, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0615984142, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
2 060 kg CO2 eq., 2060.1
Local Publishable Date
2026-01-12
Stocking Flag
Y
Device Type
Motion - motion controller
Traceability
Yes
Average Life Duration
15 year(s)
Weee Scope
Out
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Dangerous Goods Code
LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier
3
Function Option
Advanced
Market Segmentation
Industrial
Anti Bounce Filtering
1 ms or 5 ms configurable digital input100 µs touch probe input0.1 ms or 1 ms configurable interrupt input
Number Of Axis
16
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
PacDrive 3
Shock Resistance
150 m/s² 6 ms operation)IEC 60721-3-3
Supply
power supply 24 VDC, <1 A
Total Lifecycle Carbon Footprint
2 188 kg CO2 eq.
Pep Code
ENVPEP1411004EN
Pep Verification Date
2020-10-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
To perform motion control for applications 100% of the time for 10 years
Functional-unit Unit
unité (unit)
Energy Consumption On Product Lifetime In Kwh
4204.8
Energy Model - Installation [A5]
Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; < 1kV; EU-27
Width Nominal
100 mm
Maximum Number Of I/O Expansion Module
2
Package Weight(Lbs)
4.87 kg
Warranty (In Months)
18
Air Pollution (M3) Operational Energy Use [B6]
88668
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
2060.1
Net Use Of Fresh Water (M3) Operational Energy Use [B6]
7469.7
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
5.1298
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
41145
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
35913
Water Pollution (M3) Operational Energy Use [B6]
85009
Persona Type NamesEnd User, Original Equipment Manufacturer
Certificate AgencyCSA, cULus, EAC, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.6645666591
Carbon Footprint Of The Manufacturing Phase [A1 To A3]126 kg CO2 eq., 125.7323482969
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint2060.1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Memory Type256 kB NVRAM4 GB RAM DDR3L
Power Consumption In W36 W
Product Or Component TypeMotion controller
ReturnabilityYes
Software VersionEIME v5.6.0.1
Sustainable PackagingNo
Vibration Resistance3.5 mm 5-8.4 Hz10 m/s² 8.4-150 Hz
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal310 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]8.5934
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]23384
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.074
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7681
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]35913
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]5232
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]5232
Customs Code8537109170

Environment Attributes Main

Take Back
No
China Rohs Regulation
X
Carbon Footprint
2188.1868565238
Circularity Profile
ENVEOLI1411004EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
No
Product Compatibility
LMC402
Relative Humidity
5-95 % without condensation
Pep Verification Date
2020-10-01
Type Of Verification For The Pep
Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation5-55 °C
Environmental DisclosureENVPEP1411004EN
Ip Degree Of ProtectionIP20IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411004EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type
Motion controller
Range Of ProductPacDrive 3

ETIM

ETIM 8
EC000236
ETIM 9EC000236

Output Attributes

Discrete Output Current
250 mA digital output
Discrete Output Number16 digital output2 analog output

Surge Protection And Filtering Attributes

Anti Bounce Filtering
1 ms or 5 ms configurable digital input100 µs touch probe input0.1 ms or 1 ms configurable interrupt input

Input Attributes

Discrete Input Current
5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
Input Impedance
100000 Ohm analog input, 500 Ohm
Analogue Input Resolution
12 bits
Discrete Input Number
20 digital input IEC 61131-2 Type 14 interrupt input IEC 61131-2 Type 116 touch probe input IEC 61131-2 Type 1
Discrete Input Voltage20...33 V, 0...6 V
Analogue Input Number2
Analogue Input Typevoltage analog input - 10...10 Vcurrent analog input - 20...20 mA
Discrete Input Voltage TypeDC
