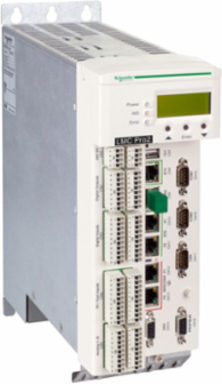

Schneider Electric LMC402CBL10000 Motion Controller 16 Axis, 36W Power, 3.5kg, IP20
- MPN: LMC402CBL10000
- PPN: SCH-LMC402CBL10000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric LMC402CBL10000 Motion Controller is a robust solution designed for precise automation and control of complex motion systems. This 16-axis controller, with a power rating of 36W, is engineered to deliver reliable performance in various industrial applications. Its compact design ensures space efficiency without compromising functionality, making it adaptable for use in diverse settings. With an IP20 rating, it is suitable for protection against solid objects, ensuring longevity and dependability in controlled environments. This motion controller is an essential component for integrating sophisticated motion strategies into your automation processes.
Documentation & Downloads
Specifications
Additional
- Number of Axis
- 16
- Supply Voltage
- 24 V DC
- Discrete Input Voltage
- 20...33 V, 0...6 V DC
- Analogue Input Type
- Voltage analog input -10...10 V, Current analog input -20...20 mA
- Discrete Output Number
- 16 digital output, 2 analog output
- Discrete Output Current
- 250 mA digital output
- Maximum Number of I/O Expansion Module
- 2
- Integrated Connection Types
- 2 Ethernet port RJ45 Sercos, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T FTP/HTTP, 1 CAN port SUB-D 9 CANopen, 1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet, 1 port SUB-D 9 Profibus DP, 1 COM1 serial link SUB-D 9 RS232, 1 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder
- Net Weight
- 3.5 kg (7.72 lb)
- Relative Humidity
- 5-95 % without condensation
- Vibration Resistance
- 3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz
- Standards
- EN/IEC 61131-2, CSA C22.2 No 274, UL 508C, CSA C22.2 No 14
- RoHS Compliance
- Pro-active compliance (Product out of EU RoHS legal scope)
- PVC Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Circularity Profile
- ENVEOLI1411004EN
- Product Compatibility
- LMC402
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
- Product Or Component Type
- motion controller
Power Consumption36 W
Discrete Input Number20 digital input IEC 61131-2 Type 1, 4 interrupt input IEC 61131-2 Type 1, 16 touch probe input IEC 61131-2 Type 1
Analogue Input Number2
Analogue Input Resolution12 bits
Discrete Input Current5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
Maximum Leakage Current0.4 mA
Programming LanguagesFBD (function block diagram), IL (instruction list), LD (ladder), CFC (continuous function chart), SFC (sequential function chart), ST (structured text)
DimensionsWidth 100 mm (3.94 in), Height 310 mm (12.20 in), Depth 243 mm (9.57 in)
Operating Ambient Temperature5-55 °C (41-131 °F)
Pollution Degree2 IEC 61131-2
Shock Resistance150 m/s² 6 ms
CertificationsCE, EAC, cULus, CSA
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China RoHS RegulationX
Environmental DisclosureENVPEP1411004EN
Input Impedance100000 Ohm analog input, 500 Ohm
Range Of ProductPacDrive 3
