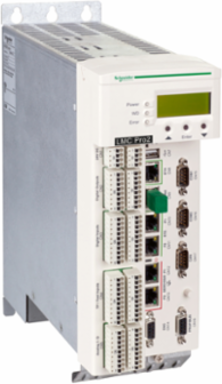

Schneider Electric LMC402CCD10000 Motion Controller 16 Axis, 24V DC, 3.5 kg, IP20

MPN: LMC402CCD10000
PPN: SCH-LMC402CCD10000
UNSPSC: 39121021

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This motion controller from Schneider Electric is a sophisticated solution designed to handle up to 16 axes in various automation and control applications. Operating on a 24V DC power supply, it combines compact design with performance efficiency, making it suitable for a range of industrial environments. With an IP20 rating, the device offers solid protection against dust and contamination, ensuring reliability in typical operational settings. This controller is ideal for those seeking advanced control capabilities in their PLC, HMI, and data acquisition systems, providing precise management of complex motion tasks.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Depth	243 mm

Weight	5250 g

Complementary Attributes

Integrated Connection Type	2 Ethernet port RJ45 Sercos1 CAN port SUB-D 9 CANopen1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet1 port SUB-D 9 Profibus DP1 COM1 serial link SUB-D 9 RS2321 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
Us Rated Supply Voltage	24 V DC

Maximum Leakage Current	0.4 mA

Important Information Attributes

Persona Type Ids	EU, OM
Programming Language	IL (instruction list), ST (structured text), LD (ladder), SFC (sequential function chart), FBD (function block diagram), CFC (continuous function chart)
Carbon Footprint Of The Distribution Phase A4	0.6773719829, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0664048613, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 060 kg CO2 eq., 2060.1
Local Publishable Date	2026-01-12
Device Type	Motion - motion controller
Traceability	Yes
Average Life Duration	15 year(s)
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	3
Function Option	Advanced
Market Segmentation	Industrial
Anti Bounce Filtering	1 ms or 5 ms configurable digital input100 µs touch probe input0.1 ms or 1 ms configurable interrupt input
Number Of Axis	16
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	PacDrive 3
Shock Resistance	150 m/s² 6 ms operation)IEC 60721-3-3
Supply	power supply 24 VDC, <1 A
Total Lifecycle Carbon Footprint	2 198 kg CO2 eq.
Database Version	2016-11
Height Nominal	310 mm
Maximum Number Of I/O Expansion Module	2
Customs Code	8537109170
Functional Unit Description	To perform motion control for applications 100% of the time for 10 years
Functional Unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	4204.8

Persona Type Names	End User, Original Equipment Manufacturer
Certificate Agency	cULus, EAC, CSA, CE
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 1.7944507106
Carbon Footprint Of The Manufacturing Phase A1 To A3	136 kg CO2 eq., 135.5430859463
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	IDIBS
Use Carbon Footprint	2060.1
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1411004EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier Id	3
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Memory Type	256 kB NVRAM4 GB RAM DDR3L
Power Consumption In W	36 W
Product Or Component Type	Motion controller
Returnability	Yes
Software Version	EIME v5.6.0.1
Sustainable Packaging	No
Vibration Resistance	3.5 mm 5-8.4 Hz10 m/s² 8.4-150 Hz
Data Source	extrapolated product
Width Nominal	100 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	2198.181313501
Circularity Profile	ENVEOLI1411004EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Product Compatibility	LMC402
Relative Humidity	5-95 % without condensation
Pep Verification Date	2020-10-01
Type Of Verification For The Pep	Independent internal review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	5-40 °C
Environmental Disclosure	ENVPEP1411004EN
Ip Degree Of Protection	IP20IEC 60529
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1411004EN
Pcr Version	PCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type	Motion controller

Range Of Product	PacDrive 3

ETIM

ETIM 8	EC000236
ETIM 10	EC000236

ETIM 9	EC000236

Output Attributes

Discrete Output Current	250 mA digital output

Discrete Output Number	16 digital output2 analog output

Input Attributes

Discrete Input Current	5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
Input Impedance	100000 Ohm analog input, 500 Ohm
Analogue Input Resolution	12 bits
Discrete Input Number	20 digital input IEC 61131-2 Type 14 interrupt input IEC 61131-2 Type 116 touch probe input IEC 61131-2 Type 1

Discrete Input Voltage	20...33 V, 0...6 V
Analogue Input Number	2
Analogue Input Type	voltage analog input - 10...10 Vcurrent analog input - 20...20 mA
Discrete Input Voltage Type	DC
