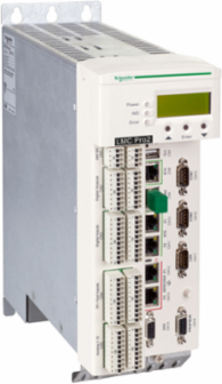

Schneider Electric LMC402CCA10000 Motion Controller 16 Axis, 24V DC, 3.5 kg
Schneider Electric LMC402CCA10000 Motion Controller 16 Axis, 24V DC, 3.5 kg
- MPN: LMC402CCA10000
- PPN: SCH-LMC402CCA10000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LMC402CCA10000 Motion Controller is an advanced solution designed to manage up to 16 axes with precision and reliability. Operating at 24V DC, this controller is well-suited for intricate automation tasks, making it an essential component for various control systems within the industry. With its robust engineering, it facilitates efficient motion control application, seamlessly integrating with existing automation setups to enhance operational efficiency and performance. This device is an integral asset for those looking to elevate their automation and control capabilities in demanding environments.
Specifications
- Voltage
- 24 V DC
- Discrete Input Number
- 20 digital input IEC 61131-2 Type 1, 4 interrupt input IEC 61131-2 Type 1, 16 touch probe input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
- Analogue Input Type
- Voltage 10...10 V, Current 20...20 mA
- Discrete Input Current
- 5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
- Discrete Output Current
- 250 mA digital output
- Maximum Number of I/O Expansion Module
- 2
- Memory Type
- 256 kB NVRAM, 1 GB RAM DDR3L
- Dimensions
- Width 100 mm (3.94 in), Height 310 mm (12.20 in), Depth 243 mm (9.57 in)
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 5-95 % without condensation
- Vibration Resistance
- 3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz
- RoHS Compliance
- Pro-active compliance, Mercury free, PVC free
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Product Compatibility
- LMC402
- Programming Language
- FBD, LD, CFC, IL, SFC, ST
Number of Axis16
Discrete Input Voltage20...33 V, 0...6 V
Analogue Input Number2
Analogue Input Resolution12 bits
Input Impedance100000 Ohm analog input, 500 Ohm
Discrete Output Number16 digital output, 2 analog output
Maximum Leakage Current0.4 mA
Power Consumption36 W
Integrated Connection Type2 Ethernet port RJ45 Sercos, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T FTP/HTTP, 1 CAN port SUB-D 9 CANopen, 1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet, 1 port SUB-D 9 Profibus DP, 1 COM1 serial link SUB-D 9 RS232, 1 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder
Weight3.5 kg
Operating Temperature5-40 °C (41-104 °F)
IP Degree of ProtectionIP20 EN/IEC 60529
Shock Resistance150 m/s² 6 ms operation
Product CertificationsCE, CSA, cULus, EAC
Product Or Component Typemotion controller
Range Of ProductPacDrive 3
Sustainable Offer StatusGreen Premium product
