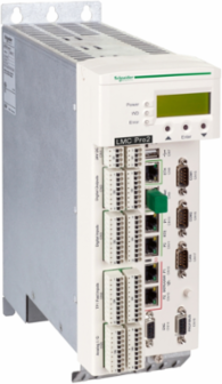

Schneider Electric LMC802CBI10000 Motion Controller 130 Axis, 256 kB NVRAM, 24 V DC, 3.5 kg
Schneider Electric LMC802CBI10000 Motion Controller 130 Axis, 256 kB NVRAM, 24 V DC, 3.5 kg
- MPN: LMC802CBI10000
- PPN: SCH-LMC802CBI10000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric motion controller is engineered to handle complex motion tasks, accommodating up to 130 axes for versatile applications. With 256 kB of NVRAM, it offers ample storage for data retention, ensuring reliable performance in various environments. Operating at 24 V DC, this compact controller balances efficiency and power, making it a valuable asset for industrial automation systems. Weighing in at just 3.5 kg, its lightweight design facilitates easy integration into existing setups.
Specifications
- Voltage
- 24 V DC
- Power Consumption
- 36 W
- Discrete Input Number
- 20 digital input IEC 61131-2 Type 1, 4 interrupt input IEC 61131-2 Type 1, 16 touch probe input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
- Analogue Input Number
- 2
- Analogue Input Resolution
- 12 bits
- Discrete Output Current
- 250 mA digital output
- Maximum Number of I/O Expansion Module
- 2
- Net Weight
- 3.5 kg (7.72 lb)
- Material
- PVC Free
- Standards
- CSA C22.2 No 14, UL 508C, CSA C22.2 No 274, EN/IEC 61131-2
- IP Degree of Protection
- IP20 EN/IEC 60529
- Vibration Resistance
- 3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz
- Relative Humidity
- 5-95% without condensation
- Programming Language
- LD (ladder), CFC (continuous function chart), ST (structured text), IL (instruction list), SFC (sequential function chart), FBD (function block diagram)
- Range of Product
- PacDrive 3
- Sustainable Offer Status
- Green Premium product
Supply Current<1 A
Number of Axes130
Discrete Input Voltage20...33 V, 0...6 V
Discrete Input Current5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
Analogue Input TypeVoltage analog input -10...10 V, Current analog input -20...20 mA
Discrete Output Number16 digital output, 2 analog output
Maximum Leakage Current0.4 mA
DimensionsWidth 100 mm, Height 310 mm, Depth 243 mm
Integrated Connection Type2 Ethernet RJ45 Sercos, 1 CAN SUB-D 9 CANopen, 1 USB USB type A, 2 Ethernet RJ45 RT-Ethernet, 1 Ethernet RJ45 PacNet, 1 SUB-D 9 Profibus DP, 1 COM1 SUB-D 9 RS232, 1 COM2 SUB-D 9 RS422/RS485, 1 SUB-D 9 master encoder, 1 Ethernet RJ45 10/100/1000BASE-T FTP/HTTP
Shock Resistance150 m/s² 6 ms operation
Product CertificationsEAC, CSA, CE, cULus
Pollution Degree2 IEC 61131-2
Ambient Air Temperature for Operation5-55 °C (41-131 °F)
Environmental ComplianceChina RoHS, EU RoHS Directive, REACH (SVHC above threshold), Mercury Free, Prop 65 Compliant
Product Or Component TypeMotion controller
Product CompatibilityLMC802
