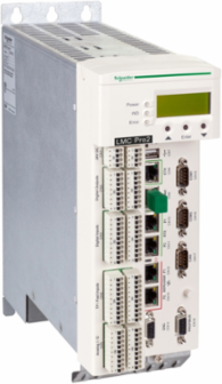

Schneider Electric LMC902CBD10000 Motion Controller 130 Axis, 256 kB NVRAM, 24 V DC, 3.5 kg
- MPN: LMC902CBD10000
- PPN: SCH-LMC902CBD10000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This motion controller from Schneider Electric is designed to facilitate precise control over complex motion systems. With the capability to manage up to 130 axes and equipped with 256 kB of NVRAM, it ensures efficient operation and quick access to necessary data. Operating on 24 V DC power, this robust unit is not only effective but also lightweight at just 3.5 kg, making it suitable for various industrial applications where space and weight considerations are crucial.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth243 mm
Complementary Attributes
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos1 CAN port SUB-D 9 CANopen1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet1 port SUB-D 9 Profibus DP1 COM1 serial link SUB-D 9 RS2321 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
Maximum Leakage Current0.4 mA
Important Information Attributes
- Persona Type Ids
- EU, OM
- Programming Language
- CFC (continuous function chart), ST (structured text), IL (instruction list), SFC (sequential function chart), FBD (function block diagram), LD (ladder)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6180212948, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0605865306, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 060 kg CO2 eq., 2060.1
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - motion controller
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input100 µs touch probe input0.1 ms or 1 ms configurable interrupt input
- Number Of Axis
- 130
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- PacDrive 3
- Shock Resistance
- 150 m/s² 6 ms operation)IEC 60721-3-3
- Supply
- power supply 24 VDC, <1 A
- Total Lifecycle Carbon Footprint
- 2 186 kg CO2 eq.
- Pep Code
- ENVPEP1411004EN
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To perform motion control for applications 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 4204.8
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 100 mm
- Maximum Number Of I/O Expansion Module
- 2
- Package Weight(Lbs)
- 4.324 kg
- Warranty (In Months)
- 18
- Air Pollution (M3) Operational Energy Use [B6]
- 88668
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 2060.1
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 7469.7
- Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
- 5.1298
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 41145
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 35913
- Water Pollution (M3) Operational Energy Use [B6]
- 85009
Persona Type NamesEnd User, Original Equipment Manufacturer
Certificate AgencycULus, EAC, CE, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.6372226483
Carbon Footprint Of The Manufacturing Phase [A1 To A3]124 kg CO2 eq., 123.6669298443
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint2060.1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2001
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Memory Type256 kB NVRAM4 GB RAM DDR3L
Power Consumption In W36 W
Product Or Component TypeMotion controller
ReturnabilityYes
Software VersionEIME v5.6.0.1
Sustainable PackagingNo
Vibration Resistance3.5 mm 5-8.4 Hz10 m/s² 8.4-150 Hz
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal310 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]8.5934
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]23384
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.074
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7681
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]35913
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]5232
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]5232
Customs Code8537109170
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2186.0827603181
- Circularity Profile
- ENVEOLI1411004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- motion controller
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation5-55 °C
Environmental DisclosureENVPEP1411004EN
Ip Degree Of ProtectionIP20IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411004EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- Motion controller
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 250 mA digital output
Discrete Output Number16 digital output2 analog output
Surge Protection And Filtering Attributes
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input100 µs touch probe input0.1 ms or 1 ms configurable interrupt input
Input Attributes
- Discrete Input Current
- 5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
- Input Impedance
- 100000 Ohm analog input, 500 Ohm
- Analogue Input Resolution
- 12 bits
- Discrete Input Number
- 20 digital input IEC 61131-2 Type 14 interrupt input IEC 61131-2 Type 116 touch probe input IEC 61131-2 Type 1
Discrete Input Voltage20...33 V, 0...6 V
Analogue Input Number2
Analogue Input Typevoltage analog input - 10...10 Vcurrent analog input - 20...20 mA
Discrete Input Voltage TypeDC
