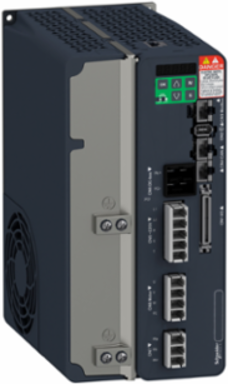

Schneider Electric LXM28SU30M3X Lexium 28 Motion Servo Drive, 200-240V, 3kW, 60A Output, IP20
- MPN: LXM28SU30M3X
- PPN: SCH-LXM28SU30M3X
CAD
$2894.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features an HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. The motion servo drives embed one pulse-train-input PTI and one pulse train-output PTO interfaces. It is a motion servo drive with a rated supply voltage of 220V (single phase and three phase), an output current of 60A at 220V, a power of 3000W/4.02HP and a continuous power of 3000W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for Sercos integrated communication interface. It is an IP20 rated product. Its dimensions are 116mm (Width) x 234mm (Depth) x 186mm (Height). It weighs 3.2kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with motor BCH2 (180mm, 2 motor stacks) at 3000W. Mount this servo drive in a vertical position (more or less 10°). This is required for cooling the device. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Indonesia |
|---|
| Depth | 186 mm |
|---|
Communications & Management Attributes
| Communication Interface | Modbus, Integrated, SERCOS III, Integrated |
|---|
Complementary Attributes
| Line Rated Current | 19.8 A |
|---|---|
| Maximum Leakage Current | 1.6 mA |
| Maximum Current Irms | 60.0 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Connector Type | RJ45 CN3), RJ45 CN4) |
| Marking | CE, cULus |
| Safety Level | SIL 2 IEC 61800-5-2 2007SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/ACSIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/ACSIL 2 IEC 62061 2012 |
| Certificate Agency | CE, cULus |
| Carbon Footprint Of The Distribution Phase [A4] | 0.5160810811, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0387459459, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 6 613 kg CO2 eq., 6612.5170566477 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Control Signal Type | servo motor encoder feedback CN2 |
| Drive Voltage Drop Coefficient | 1 |
| Electromagnetic Compatibility | conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Emc Filter Compatibility | type 022 |
| Format Of The Drive | compact housing |
| Method Of Access | slave |
| Network Number Of Phases | 3 |
| Nominal Voltage | 220 V three phase |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 28 |
| Safety Function | STO (safe torque off), Integrated |
| Signalling Function | servo status and fault codes five 7-segment display units |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Supply Voltage Description | three phase 220 V AC 50...60 Hz |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 6 683 kg CO2 eq. |
| Type Of Cable | shielded motor cable 0-55 °C) copper |
| Vibration Resistance | 3M4 3 mm 9-200 Hz)IEC 60721-3-3 |
| Pep Code | ENVPEP1409001EN |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control AC-servo motors BCH2 100% of the time for 10 years |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 13496.558 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 116 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504404000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Electrical Connection | spring terminal 6 mm², 10 AWG L1-L2), spring terminal 6 mm², 10 AWG R, S, T), spring terminal 6 mm², 10 AWG U, V, W, PE), spring terminal 6 mm², 10 AWG PA/+, PBe) |
| Protection Type | against reverse polarity inputs signalagainst short-circuits outputs signalovercurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor |
| Status Led | 1 LED (Red) charge1 LED (Green) RUN, 1 LED (Red) error |
| [Us] Rated Supply Voltage | 200...240 V - 10...15 %)three phase, 230 V |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 1.8286486486 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 68 kg CO2 eq., 68.0351351351 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1409001EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2014 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Continuous Power | 3000 W 220 V |
| Device Short Name | LXM28S |
| Electrical Isolation | between power and control |
| Emc Filter | without EMC filter |
| Field Weakening | false |
| Line Current | 11.8 A 155.8 % 220 V, three phase |
| Network Frequency | 47.5...63 Hz |
| Nominal Power | 3 kW 220 V 8 kHz |
| Operating Position | vertical |
| Phase | three phase |
| Product Or Component Type | motion servo drive |
| Returnability | No |
| Shock Resistance | 10 gn, type I IEC 60721-3-3 |
| Software Version | EIME v5.6.0.1 |
| Supply Voltage | 200-240 V three phase |
| Supply Voltage Limits | 200-255 V three phase |
| Switching Frequency | 8 kHz |
| Transmission Rate | 9600 bauds...115200 bauds (automatic detection) 100-100 m |
| Type Of Cooling | integrated fan |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 234 mm |
| Maximum [In] Rated Current | 19.8 A |
| Package Weight(Lbs) | 4.0 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-65 °C, -25-65 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 6682.9356674585 |
| Circularity Profile | ENVEOLI1409001EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | servo motor BCH2 180 mm, 2 3000 W |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-55 °C |
| Environmental Disclosure | ENVPEP1409001EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1409001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | Lexium 28 |
| Product Or Component Type | motion servo drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Output Current 3s Peak | 220 V, 60 A |
|---|---|
| Continuous Output Current | 19.8 A 8 kHz |
| Discrete Output Number | 4 logic output CN1)12...24 V DC1 pulse train output (PTO) CN1) |
| Output Voltage | <= power supply voltage, <= power supply voltage |
|---|---|
| Discrete Output Logic | positive or negative CN1) |
| Discrete Output Voltage | 12...24 V DC |
Surge Protection And Filtering Attributes
| Emc Filter | without EMC filter |
|---|
| Emc Filter Compatibility | type 022 |
|---|
Input Attributes
| Discrete Input Number | 8 programmable CN1)2 fast capture CN1), 1 safety function STO CN9) |
|---|---|
| Discrete Input Voltage | 24 V DC logic |
| Discrete Input Logic | positive or negative CN1) |
|---|
