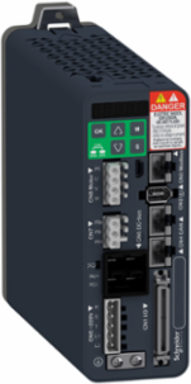

Schneider Electric LXM28SU10M3X Lexium 28 Motion Servo Drive 1kW 220V Single/Three Phase IP20
- MPN: LXM28SU10M3X
- PPN: SCH-LXM28SU10M3X
CAD
$1743.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Lexium 28 Motion Servo Drive 1kW 220V Single/Three Phase IP20
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Indonesia |
|---|
| Depth | 170 mm |
|---|
Communications & Management Attributes
| Communication Interface | Modbus, Integrated, SERCOS III, Integrated |
|---|
Complementary Attributes
| Line Rated Current | 7.0 A |
|---|---|
| Maximum Leakage Current | 4.5 mA |
| Maximum Current Irms | 21.0 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Connector Type | RJ45 CN3), RJ45 CN4) |
| Emc Filter Compatibility | type 021, type 022 |
| Network Number Of Phases | 3, 1 |
| Phase | single phase, three phase |
| Safety Level | SIL 2 IEC 61800-5-2 2007SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/ACSIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/ACSIL 2 IEC 62061 2012 |
| Supply Voltage | 200-240 V single phase, 200-240 V three phase |
| Certificate Agency | CE, cULus |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1944335473, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0145975351, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 565 kg CO2 eq., 2564.7197998429 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Control Signal Type | servo motor encoder feedback CN2 |
| Drive Voltage Drop Coefficient | 1 |
| Electromagnetic Compatibility | conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Field Weakening | false |
| Line Current | 8.5 A 176.3 % 220 V, single phase8.5 A 155.5 % 220 V, three phase |
| Network Frequency | 47.5...63 Hz |
| Operating Position | vertical |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 28 |
| Safety Function | STO (safe torque off), Integrated |
| Signalling Function | servo status and fault codes five 7-segment display units |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 2 591 kg CO2 eq. |
| Type Of Cable | shielded motor cable 0-55 °C) copper |
| Vibration Resistance | 3M4 3 mm 9-200 Hz)IEC 60721-3-3 |
| Pep Code | ENVPEP1409001EN |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control AC-servo motors BCH2 100% of the time for 10 years |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 5234.7524 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 55 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504404000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Electrical Connection | spring terminal 1.3...1.5 mm², 16 AWG L1-L2), spring terminal 1.3...1.5 mm², 16 AWG R, S, T), spring terminal 1.3...1.5 mm², 16 AWG U, V, W, PE), spring terminal 1.3...1.5 mm², 16 AWG PA/+, PBe) |
| Marking | CE, cULus |
| Nominal Voltage | 220 V single phase, 220 V three phase |
| Protection Type | against reverse polarity inputs signalagainst short-circuits outputs signalovercurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor |
| Status Led | 1 LED (Red) charge1 LED (Green) RUN, 1 LED (Red) error |
| Supply Voltage Description | three phase 220 V AC 50...60 Hz, single phase 220 V AC 50...60 Hz |
| [Us] Rated Supply Voltage | 200...240 V - 10...15 %)three phase200...240 V - 20...15 %)single phase, 230 V |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.7 kg CO2 eq., 0.6889433784 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 26 kg CO2 eq., 25.6322371622 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1409001EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2014 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Continuous Power | 1000 W 220 V |
| Device Short Name | LXM28S |
| Electrical Isolation | between power and control |
| Emc Filter | without EMC filter |
| Format Of The Drive | compact housing |
| Method Of Access | slave |
| Nominal Power | 1 kW 220 V 16 kHz |
| Overvoltage Category | III |
| Product Or Component Type | motion servo drive |
| Returnability | No |
| Shock Resistance | 10 gn, type I IEC 60721-3-3 |
| Software Version | EIME v5.6.0.1 |
| Supply Voltage Limits | 200-255 V three phase170-255 V single phase |
| Switching Frequency | 16 kHz |
| Transmission Rate | 9600 bauds...115200 bauds (automatic detection) 100-100 m |
| Type Of Cooling | integrated fan |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 150 mm |
| Maximum [In] Rated Current | 7.0 A |
| Package Weight(Lbs) | 1.507 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-65 °C, -25-65 °C |
|---|---|
| Product Compatibility | servo motor BCH2 130 mm, 1 1000 W, servo motor BCH2 100 mm, 1 1000 Wservo motor BCH2 130 mm, 2 900 Wservo motor BCH2 130 mm, 4 850 W |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-55 °C |
| Environmental Disclosure | ENVPEP1409001EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 2591.2500114658 |
| Circularity Profile | ENVEOLI1409001EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1409001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | single phase, three phase |
|---|---|
| Range Of Product | Lexium 28 |
| Product Or Component Type | motion servo drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Output Current 3s Peak | 220 V, 21 A |
|---|---|
| Continuous Output Current | 7 A 16 kHz |
| Discrete Output Number | 4 logic output CN1)12...24 V DC1 pulse train output (PTO) CN1) |
| Output Voltage | <= power supply voltage, <= power supply voltage |
|---|---|
| Discrete Output Logic | positive or negative CN1) |
| Discrete Output Voltage | 12...24 V DC |
Surge Protection And Filtering Attributes
| Emc Filter Compatibility | type 021, type 022 |
|---|
| Emc Filter | without EMC filter |
|---|
Input Attributes
| Discrete Input Number | 8 programmable CN1)2 fast capture CN1), 1 safety function STO CN9) |
|---|---|
| Discrete Input Voltage | 24 V DC logic |
| Discrete Input Logic | positive or negative CN1) |
|---|
