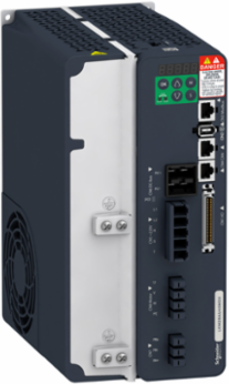

Schneider Electric LXM28AU30M3X Lexium 28 Motion Servo Drive 3kW 19.8A 220V IP20
- MPN: LXM28AU30M3X
- PPN: SCH-LXM28AU30M3X
CAD
$2315.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lexium 28 Motion Servo Drive 3kW 19.8A 220V IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden
Depth186 mm
Communications & Management Attributes
- Communication Interface
- CANopen, Integrated, CANmotion, Integrated
Complementary Attributes
- Line Rated Current
- 19.8 A
- Maximum Current Irms
- 60.0 A
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Leakage Current1.6 mA
Minimum Ambient Air Temperature For Operation0.0 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- spring terminal 6 mm², AWG 10 L1-L2), spring terminal 6 mm², AWG 10 R, S, T), spring terminal 6 mm², AWG 10 U, V, W, PE), spring terminal 6 mm², AWG 10 PA/+, PBe)
- Protection Type
- against reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
- Status Led
- 1 LED (Red) charge, 1 LED (Green) RUN, 1 LED (Red) error
- Certificate Agency
- CE, cULus
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6446717139, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0484001764
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 6 613 kg CO2 eq., 6612.5170566477
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Continuous Power
- 3000 W 220 V
- Derating Altitude Start
- 1000.0 m
- Device Short Name
- LXM28A
- Electrical Isolation
- between power and control
- Emc Filter
- without EMC filter
- Field Weakening
- false
- Line Current
- 11.8 A 155.8 % 220 V, three phase
- Method Of Access
- slave
- Minimum Operational Altitude
- 0.0 m
- Network Number Of Phases
- 3
- Nominal Voltage
- 220 V three phase
- Operating Position
- vertical
- Phase
- three phase
- Product Or Component Type
- motion servo drive
- Returnability
- No
- Shock Resistance
- 10 gn, type I IEC 60721-3-3
- Software Version
- EIME v5.6.0.1
- Supply Voltage
- 200-240 V three phase
- Supply Voltage Limits
- 200-255 V three phase
- Switching Frequency
- 8 kHz
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Pep Code
- ENVPEP1409001EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control AC-servo motors BCH2 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 13496.558
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 116 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
MarkingCE, cULus
Safety LevelSIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
Transmission Rate250 kbit/s 100-250 m CANopen, CANmotion, 500 kbit/s 4-100 m CANopen, CANmotion, 1 Mbit/s 4-4 m CANopen, CANmotion
[Us] Rated Supply Voltage200...240 V - 10...15 %)three phase, 230 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.2842884608, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]85 kg CO2 eq., 84.9872796689
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Connector TypeRJ45 CN4)CANopen, CANmotion
Control Signal Typeservo motor encoder feedback CN2
Derating Temperature Start40.0 °C
Drive Voltage Drop Coefficient1
Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Emc Filter Compatibilitytype 022
Format Of The Drivecompact housing
Maximum Operational Altitude3000.0 m
Minimum Ambient Air Temperature For Operation0.0 °C
Network Frequency47.5...63 Hz
Nominal Power3 kW 220 V 8 kHz
Number Of Addresses1-127 CANopen, CANmotion
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Safety FunctionSTO (safe torque off), Integrated
Signalling Functionservo status and fault codes five 7-segment display units
Supply Frequency50/60 Hz - 5...5 %
Supply Voltage Descriptionthree phase 220 V AC 50...60 Hz
Sustainable PackagingNo
Total Lifecycle Carbon Footprint6 700 kg CO2 eq.
Type Of Coolingintegrated fan
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal234 mm
Maximum [In] Rated Current19.8 A
Package Weight(Lbs)4996.67 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-65 °C, -25-65 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 6700.4816966677
- Circularity Profile
- ENVEOLI1409001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- servo motor BCH2 180 mm, 2 3000 W
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Environmental DisclosureENVPEP1409001EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1409001EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
- Range Of Product
- Lexium 28
Product Or Component Typemotion servo drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Number
- 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
- Output Voltage
- <= power supply voltage, <= power supply voltage
- Discrete Output Logic
- positive or negative CN1)
Output Current 3s Peak60 A 220 V, 60 A
Continuous Output Current19.8 A 8 kHz
Discrete Output Voltage12...24 V DC
Surge Protection And Filtering Attributes
- Emc Filter
- without EMC filter
Emc Filter Compatibilitytype 022
Input Attributes
- Analogue Input Type
- V_REF voltage analog input - 10...10 V 10 kOhm 14 bits, T_REF voltage analog input
- Analogue Input Number
- 2
- Discrete Input Voltage
- 24 V DC logic
Discrete Input Number8 programmable CN1), 1 pulse train input (PTI) CN1), 2 fast capture CN1), 1 safety function STO CN9)
Discrete Input Logicpositive or negative CN1)
