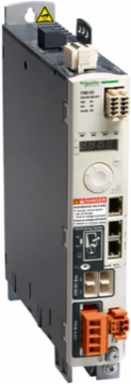

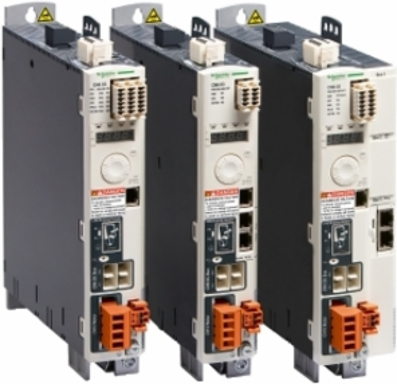

Schneider Electric LXM32AU45M2 Lexium 32 Motion Servo Drive, 4.5A, 115-230V, 0.15-0.3kW, IP20
- MPN: LXM32AU45M2
- PPN: SCH-LXM32AU45M2
CAD
$1806.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 1.5A at 8kHz and a continuous power of 500W at 230V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 48mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, United States
Depth237 mm
Communications & Management Attributes
- Communication Interface
- CANmotion, Integrated, CANopen, Integrated
Communication Service1 receive SDO CANmotion, 1 transmit SDO CANmotion, 2 PDOs conforming to DSP 402 CANmotion2 SDOs receive CANopen, 2 SDOs send CANopen, 4 configurable mapping PDOs CANopenCANopen device profile drives and motion control CANopen, CANmotion, emergency CANopen, CANmotion, event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) CANopen, node guarding, heartbeat CANopen, position control mode CANmotion, position control, speed profile, torque profile and homing mode CANopen, sync CANmotion
Complementary Attributes
- Line Rated Current
- 1.5 A
- Maximum Current Irms
- 4.5 A
- Maximum Operational Altitude
- 2000.0 m
Maximum Ambient Air Temperature For Operation50.0 °C
Maximum Leakage Current30 mA
Minimum Ambient Air Temperature For Operation0.0 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Connector Type
- RJ45 (labelled CN4 or CN5) CANmotion, RJ45 (labelled CN4 or CN5) CANopen
- Electrical Connection
- terminal 3 mm², 12 AWG CN8), terminal 5 mm², 10 AWG CN1), terminal 5 mm², 10 AWG CN10)
- Line Current
- 2.6 A 85 % 115 V, with external line choke 5 mH, 3.4 A 100 % 230 V, with external line choke 5 mH, 2.9 A 173 % 115 V, without line choke, 2.9 A 181 % 230 V, without line choke
- Response Time
- <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
- Supply Voltage
- 100-120 V single phase, 200-240 V single phase
- Supply Voltage Limits
- 85-132 V, 170-264 V
- Certificate Agency
- TÜV, CSA, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2619146073, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0121825594
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 429 kg CO2 eq., 429.1872791519
- Local Publishable Date
- 2025-11-25
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI110605EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Braking Current
- 50 mA
- Continuous Power
- 200 W 115 V500 W 230 V
- Derating Altitude Scale
- 90.0 m
- Device Short Name
- LXM32A
- Electrical Isolation
- between power and control
- Emc Filter Compatibility
- type 020
- Field Weakening
- false
- Marking
- CE
- Method Of Access
- slave
- Network Frequency
- 47.5...63 Hz
- Nominal Power
- 0.15 kW 115 V 8 kHz0.3 kW 230 V 8 kHz
- Operating Position
- vertical +/- 10 degree
- Phase
- single phase
- Product Or Component Type
- motion servo drive
- Range Of Product
- Lexium 32
- Safety Function
- STO (safe torque off), Integrated
- Sampling Duration
- DI 0.25 ms discrete
- Signalling Function
- display of faults 7 segments
- Supply Frequency
- 50/60 Hz - 5...5 %
- Switching Frequency
- 8 kHz
- Transmission Rate
- 1 Mbps 4-4 m CANopen, CANmotion125 kbps 500-500 m CANopen, CANmotion250 kbps 250-250 m CANopen, CANmotion50 kbps 1000-1000 m CANopen, CANmotion500 kbps 100-100 m CANopen, CANmotion
- Type Of Cooling
- natural convection
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 270 mm
- Maximum [In] Rated Current
- 1.5 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1090
- Customs Code
- 8504404000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Contact Bounce Time<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B2 µs CAP0.25 µs...1.5 ms DI
Electromagnetic Compatibilityconducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-31.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3
Nominal Voltage115 V single phase, 230 V single phase
Status Led1 LED (Red) servo drive voltage, 1 LED error, 1 LED RUN
Supply Voltage Descriptionsingle phase 230 V, single phase 115 V
Tightening TorqueCN8 0.5-0.5 N.mCN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m
[Us] Rated Supply Voltage230 V100...120 V - 15...10 %, 200...240 V - 15...10 %
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9477233429, 0.9 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]19 kg CO2 eq., 18.6773162824
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Compatibility CodeLXM32A
Control Signal Typeservo motor encoder feedback
Derating Altitude Start1000.0 m
Drive Voltage Drop Coefficient0.9
Emc Filterintegrated
Environmental Characteristicclasses 3C1 conforming to IEC 60721-3-3
Format Of The Drivebook
Maximum Operational Altitude2000.0 m
Minimum Ambient Air Temperature For Operation0.0 °C
Network Number Of Phases1
Number Of Addresses1-127 CANopen, CANmotion
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typeagainst reverse polarity inputs signalagainst short-circuits outputs signal
ReturnabilityNo
Safety LevelSIL 3 EN/IEC 61508PL = e ISO 13849-1
Shock Resistance15 gn 11 ms EN/IEC 60028-2-27
Software VersionEIME v5.8.1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint449 kg CO2 eq.
Type Of Cablesingle-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
Vibration Resistance1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
Pep CodeENVPEP110705EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh876
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal48 mm
Number Of Inputs/Outputs4 DI + 1 CI + 2 DO
Package Weight(Lbs)2.036 kg
Warranty (In Months)18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1090
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C UL
- Environmental Disclosure
- ENVPEP110705EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- servo motor BSH 55 mm, 1
- Relative Humidity
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1
Take BackNo
China Rohs RegulationX
Carbon Footprint449.0864159441
Circularity ProfileENVEOLI110605EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP110705EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium 32
Product Or Component Typemotion servo drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Voltage
- <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
- Output Voltage
- <= power supply voltage, <= power supply voltage
- Discrete Output Logic
- positive or negative DO)EN/IEC 61131-2
- Discrete Output Type
- logic DO)24 V DC
Output Current 3s Peak4.5 A, 3 A 115 V 5 s4.5 A 230 V 5 s
Continuous Output Current1.5 A 8 kHz
Discrete Output Number2
Response Time On Output250 µs DO)discrete
Surge Protection And Filtering Attributes
- Emc Filter
- integrated
Emc Filter Compatibilitytype 020
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
- Discrete Input Number
- 1 capture2 safety4 logic
Discrete Input Voltage24 V DC capture, 24 V DC logic, 24 V DC safety
Discrete Input Typecapture CAPlogic DIsafety compliment of STO_A, compliment of STO_B
