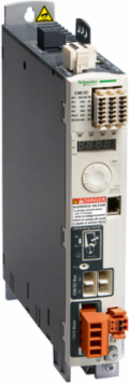

Schneider Electric LXM32CU90M2 Lexium 32 Motion Servo Drive, 9A, Single Phase, 115-230V, 0.3-0.5kW
- MPN: LXM32CU90M2
- PPN: SCH-LXM32CU90M2
- UNSPSC: 26111515
CAD
$1763.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 safety, 6 logic discrete inputs and 5 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 3A at 8kHz and a continuous power of 900W at 230V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. It is an IP20 rated product. Its dimensions are 48mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.7kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Features
- Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
- Three book-size servo drive models and two servo motor families plus a full range of intelligent options
- Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
- A speed bandwidth of 1,600Hz provides outstanding response
- Lexium 32 offers a host of features for rapid installation and maintenance with removable, colour-coded connectors
- SoMove software for configuring on PC and transferring the configuration via Bluetooth or using a cable
- Lexium 32 supports sercos/CANopen/CANmotion communication interfaces for fast integration into industrial architectures
- Lexium 32 servo drives integrate Safe Torque Off safety function (IEC/EN 61800-5-2): shorter downtimes and less wiring
- Optional enhanced safety module eases access to SS1, SS2, SOS and SLS safety functions, according to IEC/EN 61800-5-2
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|
| Depth | 237 mm |
| Weight | 2122 g |
|---|
Communications & Management Attributes
| Communication Interface | Digital I/O, Integrated, Analog I/O, Integrated |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 115 V100...120 V - 15...10 %, 200...240 V - 15...10 % |
|---|---|
| Maximum Ambient Air Temperature For Operation | 50.0 °C |
| Maximum Leakage Current | 30 mA |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Line Rated Current | 3.0 A |
|---|---|
| Maximum Current Irms | 6.0 A |
| Maximum Operational Altitude | 2000.0 m |
| Maximum In Rated Current | 3.0 A |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Contact Bounce Time | <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B0.25 µs...1.5 ms DI |
| Electrical Connection | terminal 3 mm², 12 AWG CN8), terminal 5 mm², 10 AWG CN1), terminal 5 mm², 10 AWG CN10) |
| Line Current | 5.2 A 90 % 115 V, with external line choke 2 mH, 6.3 A 107 % 230 V, with external line choke 2 mH, 5.4 A 159 % 115 V, without line choke4.5 A 166 % 230 V, without line choke |
| Nominal Voltage | 115 V single phase, 230 V single phase |
| Supply Voltage | 100-120 V single phase, 200-240 V single phase |
| Supply Voltage Limits | 85-132 V, 170-264 V |
| Certificate Agency | CSA, TÜV, UL |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.30625919124752793, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 17 kg CO2 eq., 16.620072474301203 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Compatibility Code | LXM32C |
| Derating Altitude Scale | 90.0 m |
| Device Short Name | LXM32C |
| Electrical Isolation | between power and control |
| Emc Filter Compatibility | type 020 |
| Field Weakening | false |
| Marking | CE |
| Network Number Of Phases | 1 |
| Operating Position | vertical +/- 10 degree |
| Phase | single phase |
| Product Or Component Type | motion servo drive |
| Range Of Product | Lexium 32 |
| Safety Function | STO (safe torque off), Integrated |
| Sampling Duration | ANA1+/ANA1-, ANA2+/ANA2- 0.25 ms analogDI 0.25 ms discrete |
| Signalling Function | display of faults 7 segments |
| Status Led | 1 LED (Red) servo drive voltage |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 20 kg CO2 eq. |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 48 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Control Signal Type | servo motor encoder feedbackpulse train output (PTO) RS422 <500 kHz <100 mpulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m |
| Electromagnetic Compatibility | conducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-31.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3 |
| Linearity Error | < +/- 0.1 %, < +/- 0.1 % |
| Response Time | <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B |
| Supply Voltage Description | single phase 230 V, single phase 115 V |
| Tightening Torque | CN8 0.5-0.5 N.mCN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m |
| Carbon Footprint Of The Distribution Phase A4 | 3.134465825764198, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | kg CO2 eq., 0 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-12-12 |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI110605EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Braking Current | 50 mA |
| Continuous Power | 400 W 115 V900 W 230 V |
| Derating Altitude Start | 1000.0 m |
| Drive Voltage Drop Coefficient | 0.9 |
| Emc Filter | integrated |
| Environmental Characteristic | classes 3C1 conforming to IEC 60721-3-3 |
| Format Of The Drive | book |
| Network Frequency | 47.5...63 Hz |
| Nominal Power | 0.3 kW 115 V 8 kHz0.5 kW 230 V 8 kHz |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Type | against reverse polarity inputs signalagainst short-circuits outputs signal |
| Returnability | No |
| Safety Level | SIL 3 EN/IEC 61508PL = e ISO 13849-1 |
| Shock Resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Software Version | v6.2.4 |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Switching Frequency | 8 kHz |
| Type Of Cable | single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR |
| Vibration Resistance | 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6 |
| Database Version | 2024-01 |
| Height Nominal | 270 mm |
| Number Of Inputs/Outputs | 6 DI + 5 DO + 2 AI |
| Customs Code | 8504404000 |
| Functional Unit Description | To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 3 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 20.06079749131293 |
| Circularity Profile | ENVEOLI110605EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Pep Verification Date | 2026-08-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1 |
|---|---|
| Product Compatibility | servo motor BSH 55 mm, 1, servo motor BMH 70 mm, 1, servo motor BSH 70 mm, 1servo motor BSH 55 mm, 3, servo motor BSH 55 mm, 2 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-50 °C UL |
| Environmental Disclosure | ENVPEP110705EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP110705EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | single phase |
|---|---|
| Range Of Product | Lexium 32 |
| Product Or Component Type | motion servo drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|---|
| ETIM 10 | EC001857 |
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Discrete Output Voltage | <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC |
|---|---|
| Output Voltage | <= power supply voltage, <= power supply voltage |
| Discrete Output Logic | positive or negative DO)EN/IEC 61131-2 |
| Discrete Output Type | logic DO)24 V DC |
| Output Current 3s Peak | 6.0 A, 6 A 115 V 5 s9 A 230 V 5 s |
|---|---|
| Continuous Output Current | 3 A 8 kHz |
| Discrete Output Number | 5 |
| Response Time On Output | 250 µs DO)discrete |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Logic | positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1 |
|---|---|
| Analogue Input Number | 2 |
| Discrete Input Number | 2 safety6 logic |
| Discrete Input Voltage | 24 V DC logic, 24 V DC safety |
|---|---|
| Analogue Input Type | ANA1+/ANA1-, ANA2+/ANA2- analog input differential +/- 10 V >= 20 Ohm 14 bits |
| Discrete Input Type | logic DIsafety compliment of STO_A, compliment of STO_B |
