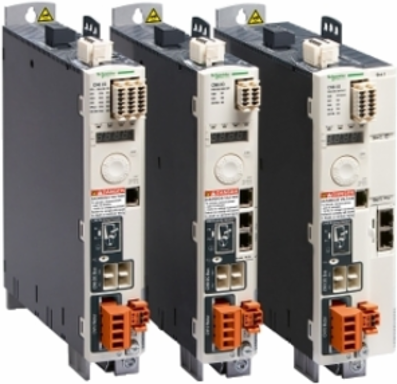

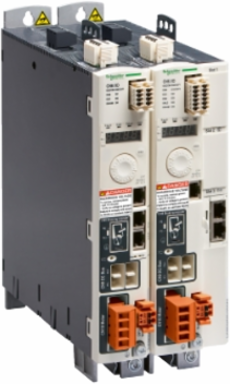

Schneider Electric LXM32MD30M2 Motion Servo Drive Lexium 32, 30A, 0.8-1.6kW, IP20

MPN: LXM32MD30M2
PPN: SCH-LXM32MD30M2
UNSPSC: 39121021

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$2824.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture, 2 safety, 4 logic discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 230V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. CANopen, CANmotion, Ethernet/IP, EtherCAT, Profibus, DeviceNet possible with option card. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.1kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

Features

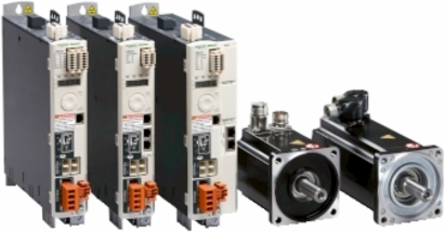

Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
Three book-size servo drive models and two servo motor families plus a full range of intelligent options
Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
A speed bandwidth of 1,600Hz provides outstanding response
Lexium 32 offers a host of features for rapid installation and maintenance with removable, colour-coded connectors
SoMove software for configuring on PC and transferring the configuration via Bluetooth or using a cable
Lexium 32 supports sercos/CANopen/CANmotion communication interfaces for fast integration into industrial architectures
Lexium 32 servo drives integrate Safe Torque Off safety function (IEC/EN 61800-5-2): shorter downtimes and less wiring
Optional enhanced safety module eases access to SS1, SS2, SOS and SLS safety functions, according to IEC/EN 61800-5-2

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Mexico
Depth	237 mm

Weight	2580 g

Communications & Management Attributes

Communication Interface	Modbus TCP, with separated communication card, CANopen, with separated communication card, CANmotion, with separated communication card, Ethernet/IP, with separated communication card, EtherCAT, with separated communication card, Profibus, with separated communication card, Profinet, with separated communication card, Analog I/O, with separated communication cardDigital I/O, Integrated

Complementary Attributes

Us Rated Supply Voltage	115 V100...120 V - 15...10 %, 200...240 V - 15...10 %
Maximum Ambient Air Temperature For Operation	50.0 °C
Maximum Leakage Current	30 mA
Minimum Ambient Air Temperature For Operation	0.0 °C

Line Rated Current	10.0 A
Maximum Current Irms	30.0 A
Maximum Operational Altitude	2000.0 m
Maximum In Rated Current	10.0 A

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Contact Bounce Time	<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B2 µs CAP0.25 µs...1.5 ms DI
Electrical Connection	terminal 3 mm², 12 AWG CN8), terminal 5 mm², 10 AWG CN1), terminal 5 mm², 10 AWG CN10)
Line Current	9.9 A 72 % 115 V, with external line choke 2 mH, 14.1 A 86 % 230 V, with external line choke 2 mH, 12.9 A 135 % 115 V, without line choke, 12.7 A 135 % 230 V, without line choke
Response Time	<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
Supply Voltage	100-120 V single phase, 200-240 V single phase
Supply Voltage Limits	85-132 V, 170-264 V
Certificate Agency	TÜV, UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.37236037390132987, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	20 kg CO2 eq., 20.207251170451038
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Compatibility Code	LXM32M
Derating Altitude Scale	90.0 m
Device Short Name	LXM32M
Electrical Isolation	between power and control
Emc Filter Compatibility	type 021
Field Weakening	false
Marking	CE
Network Number Of Phases	1
Operating Position	vertical +/- 10 degree
Phase	single phase
Product Or Component Type	motion servo drive
Range Of Product	Lexium 32
Safety Level	SIL 3 EN/IEC 61508PL = e ISO 13849-1
Shock Resistance	15 gn 11 ms EN/IEC 60028-2-27
Software Version	v6.2.4
Supply Frequency	50/60 Hz - 5...5 %
Switching Frequency	8 kHz
Type Of Cable	single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
Vibration Resistance	1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
Database Version	2024-01
Height Nominal	270 mm
Number Of Inputs/Outputs	4 DI + 2 CI + 3 DO
Customs Code	8504404000
Functional Unit Description	To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
Functional Unit Unit	unit
Recyclability Potential In %	3

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Control Signal Type	servo motor encoder feedbackpulse train output (PTO) RS422 <500 kHz <100 mpulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m
Electromagnetic Compatibility	conducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-31.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3
Nominal Voltage	115 V single phase, 230 V single phase
Safety Function	STO (safe torque off), IntegratedSS1 (safe stop 1), with separated eSM safety card, SS2 (safe stop 2), with separated eSM safety card, SLS (safe limited speed), with separated eSM safety card, SOS (safe operating stop), with separated eSM safety card
Supply Voltage Description	single phase 115 V, three phase 400 V
Tightening Torque	CN8 0.5-0.5 N.mCN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m
Carbon Footprint Of The Distribution Phase A4	3.8109904950384688, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	kg CO2 eq., 0
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Device Type	Motion - drive & motor
Traceability	Yes
Average Life Duration	15 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI110605EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1907
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Advanced
Market Segmentation	Industrial
Braking Current	50 mA
Continuous Power	800 W 115 V2200 W 230 V
Derating Altitude Start	1000.0 m
Drive Voltage Drop Coefficient	0.9
Emc Filter	integrated
Environmental Characteristic	classes 3C1 conforming to IEC 60721-3-3
Format Of The Drive	book
Network Frequency	47.5...63 Hz
Nominal Power	0.8 kW 115 V 8 kHz1.6 kW 230 V 8 kHz
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Protection Type	against reverse polarity inputs signalagainst short-circuits outputs signal
Returnability	Yes
Sampling Duration	0.25 msDI 0.25 ms discrete
Signalling Function	display of faults 7 segments
Status Led	1 LED (Red) servo drive voltage
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	24 kg CO2 eq.
Type Of Cooling	integrated fan
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	68 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
Take Back	No
China Rohs Regulation	X
Carbon Footprint	24.390602039390835
Circularity Profile	ENVEOLI110605EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Relative Humidity	Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Pep Verification Date	2026-08-26
Psr Version	PSR-0005-ed3-2023 06 06

Ip Degree Of Protection	IP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1
Product Compatibility	servo motor BSH 140 mm, 1, servo motor BMH 70 mm, 2servo motor BMH 140 mm, 1, servo motor BSH 100 mm, 3, servo motor BSH 100 mm, 4
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-50 °C UL
Environmental Disclosure	ENVPEP110705EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP110705EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Phase	single phase
Range Of Product	Lexium 32

Product Or Component Type	motion servo drive

ETIM

ETIM 8	EC001857
ETIM 10	EC001857

ETIM 9	EC001857

Output Attributes

Discrete Output Voltage	<= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
Output Voltage	<= power supply voltage, <= power supply voltage
Discrete Output Logic	positive or negative DO)EN/IEC 61131-2
Discrete Output Type	logic DO)24 V DC

Output Current 3s Peak	30.0 A, 15 A 115 V 5 s30 A 230 V 5 s
Continuous Output Current	10 A 8 kHz
Discrete Output Number	3
Response Time On Output	250 µs DO)discrete

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Discrete Input Logic	positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
Discrete Input Voltage	24 V DC capture, 24 V DC logic, 24 V DC safety
