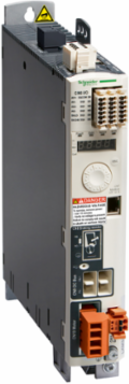

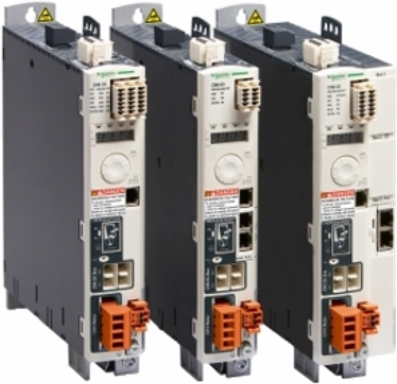

Schneider Electric LXM32CU45M2 Lexium 32 Motion Servo Drive, 4.5A, Single Phase, 115-230V, Modbus
- MPN: LXM32CU45M2
- PPN: SCH-LXM32CU45M2
CAD
$1551.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This servo drive from Schneider Electric is engineered to deliver high-performance motion control capabilities within a compact design. The Lexium 32 model, rated at 4.5A and designed for single-phase input between 115-230V, is particularly well-suited for a variety of automation applications. With its Modbus communication protocol, it ensures seamless integration into existing control systems, making it an ideal choice for enhancing operational efficiency in industrial settings. This combination of reliability and advanced functionality positions the Lexium 32 as a key component for those seeking precision control in motion automation.
Documentation & Downloads
Specifications
Additional
- Amperage
- 4.5 A
- Nominal Power
- 0.15 kW 115 V 8 kHz, 0.3 kW 230 V 8 kHz
- Output Current 3s Peak
- 3 A 115 V 5 s, 4.5 A 230 V 5 s
- Safety Function
- STO (safe torque off), integrated
- Overvoltage Category
- III
- Braking Current
- 50 mA
- Discrete Input Number
- 8 (2 safety, 6 logic)
- Discrete Input Logic
- positive and negative, including STO_A and STO_B complements
- Discrete Output Voltage
- <= 30 V DC
- Analogue Input Number
- 2
- Response Time
- <= 5 ms discrete output, <= 1 ms and 0.25 µs for STO complements and discrete inputs
- Connector Type
- RJ45 (labelled CN7) Modbus
- Number of Addresses
- 1-247 Modbus
- Tightening Torque
- 0.5-0.5 N.m CN8, 0.7-0.7 N.m CN1 and CN10
- Net Weight
- 1.6 kg (3.53 lb)
- Emc Filter
- integrated
- Vibration Resistance
- 1 gn 13-150 Hz and 1.5 mm peak to peak 3-13 Hz per EN/IEC 60068-2-6
- Pollution Degree
- 2 per EN/IEC 61800-5-1
- Storage Temperature
- -25 to 70 °C (-13 to 158 °F)
- Environmental Characteristic
- Classes 3C1 per IEC 60721-3-3
- Eu RoHS Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Mercury Free
- Yes
- Safety Level Standard
- SIL 3 EN/IEC 61508, PL = e ISO 13849-1
- Product Certifications
- CSA, UL, TUV
- Product Or Component Type
- motion servo drive
- Format Of The Drive
- book
- Type Of Cooling
- natural convection
- Physical Interface
- 2-wire RS485 multidrop Modbus
- Status LED
- 1 red LED indicating servo drive voltage
- Circularity Profile
- ENVEOLI110605EN
Supply Voltage85-132 V, 170-264 V
Continuous Output Current1.5 A 8 kHz
Switching Frequency8 kHz
Safety LevelSIL 3 EN/IEC 61508, PL = e ISO 13849-1
Maximum Leakage Current30 mA
Line Current2.6 A 85 % 115 V with 5 mH line choke, 3.4 A 100 % 230 V with 5 mH line choke, 2.9 A 173 % 115 V without line choke, 2.9 A 181 % 230 V without line choke
Discrete Input Voltage24 V DC logic and safety
Discrete Output Number5
Discrete Output Logicpositive or negative DO per EN/IEC 61131-2
Analogue Input TypeDifferential +/- 10 V, 14 bits, >= 20 Ohm input impedance
Communication InterfaceModbus, integrated
Transmission Rate9600, 19200, 38400 bps
Electrical ConnectionTerminal 3 mm² AWG 12 (CN8), Terminal 5 mm² AWG 10 (CN1, CN10)
Dimensions (W×H×D)48 mm × 270 mm × 237 mm (1.89 in × 10.63 in × 9.33 in)
MaterialCopper cables with XLPE/EPR insulation
IP Degree of ProtectionIP20 conforming to EN/IEC 60529 and EN/IEC 61800-5-1
Shock Resistance15 gn 11 ms per EN/IEC 60028-2-27
Operating Temperature0-50 °C (32-122 °F) UL
Operating Altitude<= 1000 m without derating; 1000-3000 m with conditions
ComplianceCSA, UL, TUV, CE, EN/IEC 61800-3, EN/IEC 61800-5-1, RoHS compliant
China RoHS RegulationX
Rohs Exemption InformationYes
Pvc FreeYes
StandardsEN/IEC 61800-3, EN/IEC 61800-5-1
BrandLexium 32
Device Short NameLXM32C
Operating Positionvertical ± 10 degrees
Control Signal Typeservo motor encoder feedback and pulse train output RS422 and pulse/direction signals
Signalling Functiondisplay of faults with 7-segment display
Environmental DisclosureENVPEP110705EN
Warranty18 months
