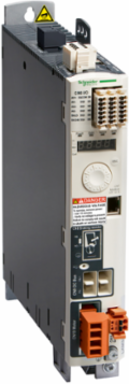

Lexium 32 Motion Servo Drive, 18A, 3-Phase, 1.8kW, Modbus, IP20
Schneider Electric

Schneider Electric LXM32CD18N4 Lexium 32 Motion Servo Drive, 18A, 3-Phase, 1.8kW, Modbus, IP20

  • MPN: LXM32CD18N4
  • PPN: SCH-LXM32CD18N4

CAD

$2399.60

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Lexium 32 Motion Servo Drive, 18A, 3-Phase, 1.8kW, Modbus, IP20

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Indonesia, United States
Depth237 mm

Communications & Management Attributes

Communication Interface
Digital I/O, Integrated, Analog I/O, Integrated

Complementary Attributes

Line Rated Current
6.0 A
Maximum Current Irms
18.0 A
Maximum Operational Altitude
2000.0 m
Maximum Ambient Air Temperature For Operation50.0 °C
Maximum Leakage Current30 mA
Minimum Ambient Air Temperature For Operation0.0 °C

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Contact Bounce Time
<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B, 0.25 µs...1.5 ms DI
Control Signal Type
servo motor encoder feedback, pulse train output (PTO) RS422 <500 kHz <100 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m
Electromagnetic Compatibility
conducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011, conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2, susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3, 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3
Linearity Error
< +/- 0.1 %, < +/- 0.1 %
Nominal Voltage
208 V three phase, 400 V three phase, 480 V three phase
Response Time
<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
Sampling Duration
ANA1+/ANA1-, ANA2+/ANA2- 0.25 ms analog, DI 0.25 ms discrete
Supply Voltage Description
three phase 400 V, three phase 230 V
Tightening Torque
CN8 0.5-0.5 N.m, CN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m
Certificate Agency
TÜV, CSA, UL
Carbon Footprint Of The Distribution Phase [A4]
0.3131363311, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0 kg CO2 eq., 0.01456506
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
2 918 kg CO2 eq., 2918.4734982332
Local Publishable Date
2025-12-02
Stocking Flag
N
Device Type
Motion - drive & motor
Traceability
Yes
Average Life Duration
15 year(s)
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI110605EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1907
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Advanced
Market Segmentation
Industrial
Braking Current
50 mA
Derating Altitude Scale
90.0 m
Device Short Name
LXM32C
Electrical Isolation
between power and control
Emc Filter Compatibility
type 022
Field Weakening
false
Marking
CE
Minimum Ambient Air Temperature For Operation
0.0 °C
Network Number Of Phases
3
Overvoltage Category
III
Product Availability
Stock - Normally stocked in distribution facility
Range Of Product
Lexium 32
Safety Function
STO (safe torque off), Integrated
Signalling Function
display of faults 7 segments
Status Led
1 LED (Red) servo drive voltage
Sustainable Packaging
Yes
Total Lifecycle Carbon Footprint
2 942 kg CO2 eq.
Type Of Cooling
integrated fan
Pep Code
ENVPEP110705EN
Pep Verification Date
2020-08-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
5956.8
Energy Model - Installation [A5]
Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; < 1kV; EU-27
Width Nominal
48 mm
Number Of Inputs/Outputs
6 DI + 5 DO + 2 AI
Package Weight(Lbs)
2.404 kg
Warranty (In Months)
18
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
7412
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Continuous Power1700 W 208 V, 3300 W 400 V, 3300 W 480 V
Electrical Connectionterminal 3 mm², AWG 12 CN8), terminal 5 mm², AWG 10 CN1), terminal 5 mm², AWG 10 CN10)
Line Current6 A 78 % 208 V, with external line choke 1 mH, 6.9 A 90 % 400 V, with external line choke 1 mH, 6 A 98 % 480 V, with external line choke 1 mH, 6.2 A 140 % 208 V, without line choke, 5.2 A 161 % 400 V, without line choke, 4.5 A 165 % 480 V, without line choke
Nominal Power1.2 kW 208 V 8 kHz, 1.8 kW 400 V 8 kHz, 1.8 kW 480 V 8 kHz
Protection Typeagainst reverse polarity inputs signal, against short-circuits outputs signal
Safety LevelSIL 3 EN/IEC 61508, PL = e ISO 13849-1
Supply Voltage200-240 V three phase, 380-480 V three phase
Supply Voltage Limits170-264 V, 323-528 V
Vibration Resistance1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
[Us] Rated Supply Voltage400 V, 200...240 V - 15...10 %, 380...480 V - 15...10 %
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.1330662824, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 22.3299737032
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Compatibility CodeLXM32C
Derating Altitude Start1000.0 m
Drive Voltage Drop Coefficient0.95
Emc Filterintegrated
Environmental Characteristicclasses 3C1 conforming to IEC 60721-3-3
Format Of The Drivebook
Maximum Operational Altitude2000.0 m
Network Frequency47.5...63 Hz
Operating Positionvertical +/- 10 degree
Phasethree phase
Product Or Component Typemotion servo drive
ReturnabilityYes
Shock Resistance15 gn 11 ms EN/IEC 60028-2-27
Software VersionEIME v5.8.1
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency8 kHz
Type Of Cablesingle-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal270 mm
Maximum [In] Rated Current6.0 A
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]7412

Environment Attributes Main

Ambient Air Temperature For Storage
-25-70 °C, -25-70 °C
Operating Altitude
<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
Take Back
No
China Rohs Regulation
X
Carbon Footprint
2942.2642396098
Circularity Profile
ENVEOLI110605EN
Eu Rohs Directive
Compliant By Exemption
Packaging Without Single Use Plastic
Yes
Relative Humidity
Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Pep Verification Date
2020-08-01
Type Of Verification For The Pep
Independent internal review
Ip Degree Of ProtectionIP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1
Product Compatibilityservo motor BSH 100 mm, 1, servo motor BSH 100 mm, 2servo motor BMH 100 mm, 1, servo motor BMH 70 mm, 3, servo motor BSH 70 mm, 3, servo motor BMH 100 mm, 2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-50 °C UL
Environmental DisclosureENVPEP110705EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP110705EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phase
three phase
Range Of Product
Lexium 32
Product Or Component Typemotion servo drive

ETIM

ETIM 8
EC001857
ETIM 9EC001857

Output Attributes

Discrete Output Voltage
<= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
Output Voltage
<= power supply voltage, <= power supply voltage
Discrete Output Logic
positive or negative DO)EN/IEC 61131-2
Discrete Output Type
logic DO)24 V DC
Output Current 3s Peak18.0 A, 18 A 208 V 5 s, 18 A 480 V 5 s
Continuous Output Current6 A 8 kHz
Discrete Output Number5
Response Time On Output250 µs DO)discrete

Surge Protection And Filtering Attributes

Emc Filter
integrated
Emc Filter Compatibilitytype 022

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Input Attributes

Discrete Input Logic
positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
Discrete Input Type
logic DI, safety compliment of STO_A, compliment of STO_B
Analogue Input Number
2
Discrete Input Number2 safety, 6 logic
Discrete Input Voltage24 V DC logic, 24 V DC safety
Analogue Input TypeANA1+/ANA1-, ANA2+/ANA2- analog input differential +/- 10 V >= 20 Ohm 14 bits
