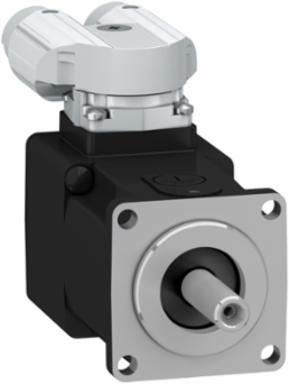

Schneider Electric BSH0401P06A2A Lexium 32 Servo Motor 40mm, 0.21N.m, 9000RPM, IP50
Schneider Electric BSH0401P06A2A Lexium 32 Servo Motor 40mm, 0.21N.m, 9000RPM, IP50
- MPN: BSH0401P06A2A
- PPN: SCH-BSH0401P06A2A
- UNSPSC: 26101205
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1152.42/ EA
Description
Experience precision and performance with this high-quality servo motor designed by Schneider Electric. The Lexium 32 series features a robust continuous stall torque of 0.21 N.m and a remarkable nominal speed of 9000 rpm, making it ideal for various automation and motion control applications. With its compact 40mm motor flange size and a smooth untapped shaft, this model is engineered for seamless integration into your systems. The motor is built with advanced feedback technology, offering a single turn SinCos Hiperface resolution of 32768 points per turn, ensuring accurate positioning and control. Additionally, its IP50 rating provides reliable protection against dust and solid objects, making it a dependable choice for industrial environments.
Features
- Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
- Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
- Rapid installation and maintenance with removable, colour-coded connectors
- Integrated safety functions
Specifications
Physical Attributes
- Motor Flange Size
- 40 mm
Shaft Length25 mm
Complementary Attributes
- Maximum Current IRMS
- 4.7 A LXM32.U60N4 480 V, 4.7 A LXM32.U60N4 400 V, 4.7 A LXM32.U45M2 230 V, 4.5 A
- Line Rated Current
- 1.02 A
- Maximum Axial Force FA
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed10000 rpm
Maximum Permanent Current1.12 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -3.6667E-06 N.m/rpm, -3.6667E-06 N.m/rpm
- Inertia
- 0.0 kg.cm² of brake, 0.023 kg.cm² of motor
- Nominal Speed
- 9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
- Peak Stall Torque
- 0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Carbon Footprint Of The Distribution Phase A4
- 0.0808937838, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0055622757, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 195 kg CO2 eq., 195.2821462945
- Local Publishable Date
- 2026-01-12
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Centring Collar Diameter
- 30 mm
- Coefficient 1 2
- 0 N.m/rpm²
- Coefficient 1 4
- 0 N.m/rpm4
- Coefficient 1 6
- 0 N.m/rpm6
- Coefficient 2 1
- 1.18333333333333E-06 N.m/rpm
- Continuous Stall Current
- 1.12 A
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- without
- Minimum Operational Altitude
- 0.0 m
- Mounting Holes Diameter
- 4.5 mm
- Package Weight Lbs
- 700.000 g
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 0.0232 kg.cm²
- Shaft Diameter
- 8 mm
- Sizing Reference
- BSH0401P
- Stator Electrical Time Constant
- 0.85 ms 20 °C
- Stator Resistance
- 17.2 Ohm 20 °C
- Switching Frequency
- 8 kHz
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 0.19 N.m/A 120 °C
- Type Of Cooling
- natural convection
- Us Rated Supply Voltage2
- 400 V
- Maximum In Rated Current2
- 1.02 A
- Stocking Flag
- Y
- Accuracy Error Angular3
- 0.08 °
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model End Of Life C1 C4 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Maximum In Rated Current5
- 1.02 A
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Continuous Stall Torque0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque0.18 N.m full speed, 0.2 N.m half speed, 0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Saturation Coefficient-0.0175957658702008, -0.0175957658702008
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0590828108
Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 2.7449351351
Local Data StatusPublishable
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionAdvanced
Market SegmentationIndustrial
Circle Diameter Of The Mounting Holes46 mm
Coefficient 1 30 N.m/rpm3
Coefficient 1 50 N.m/rpm5
Coefficient 2 00.0188241649361797 N.m
Continuous Power220 W
Derating Altitude Scale80.0 m
Derating Temperature Scale20.0 °C
Device Short NameBSH
Feedback Typesingle turn SinCos Hiperface
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Supportinternational standard flange
Peak Nominal Torque0.72 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endsmooth shaft
Speed Feedback Resolution32768 points/turn
Stator Inductance7.3 mH 20 °C
Sustainable PackagingNo
Temperature Copper Hot120 °C
Temperature Magnet RT20 °C
Total Lifecycle Carbon Footprint198 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Accuracy Error Angular20.08 °
Medium Descservo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, untapped shaft, 16 Sincos single turn, without brake, IP50
Product Kit IdentifierN
Pep CodeENVPEP111049EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Energy Model Manufacturing A1 A3 2Energy model used: Germany
Energy Model Use B6 2Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 198.1726202999
- IP Degree Of Protection
- IP50 standard
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111049EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
Output Attributes
- Nominal Output Power
- 166 W LXM32.U60N4 1.5 A, 480 V, three phase, 166 W LXM32.U60N4 1.5 A, 400 V, three phase, 77 W LXM32.U45M2 1.5 A, 230 V, single phase
