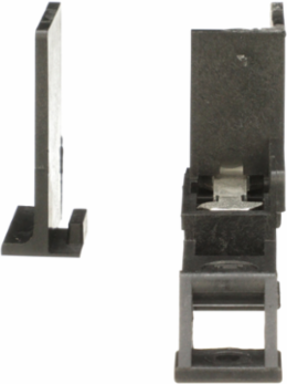

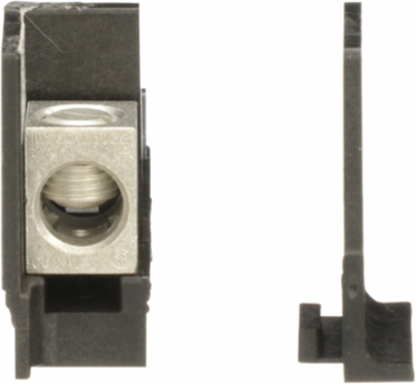

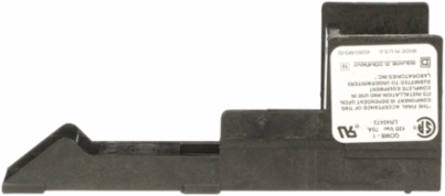

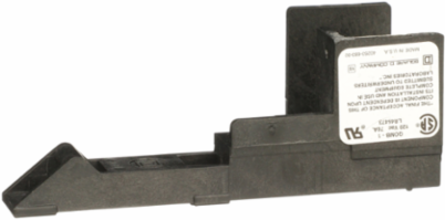

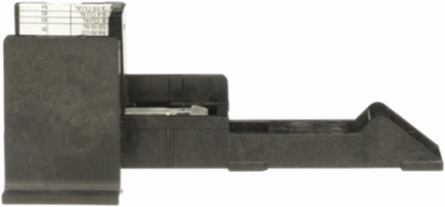

Schneider Electric QOMB1 QO Load Center Mounting Base 1 Pole 70A 120V AC CSA
- MPN: QOMB1
- UPC: 785901029816
- PPN: SCH-QOMB1
CAD
$88.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric QOMB1 serves as a robust mounting base tailored for load centers, featuring a single pole rated at 70A and designed for 120V AC applications. This component is an essential accessory for ensuring secure installation and reliable operation within your power distribution system. Crafted with attention to safety and efficiency, it aligns with CSA standards, making it a dependable choice for enhancing your load center setup and ensuring optimal performance in electrical systems.
Features
- The QOMB1 is a specialized bus bar connector kit used to facilitate the connection between a main bus and a branch circuit or to bridge sections within a Square D QO-style distribution system. It acts as the critical electrical interface, ensuring that power is distributed safely and efficiently from the primary source to individual breaker positions.
- Designed specifically for use with Square D QO Load Centers and NQ Panelboards, this connector is engineered to match the exact physical and electrical tolerances of the QO "Plug-On" system. This ensures a precision fit that eliminates the risk of arcing or poor contact that can occur when using non-genuine or mismatched components.
- The QOMB1 is rated for use in systems up to 100 Amps. This makes it an essential component for contractors building out commercial lighting panels or residential sub-panels where high-current "feeder" connections are required to sustain multiple branch circuits simultaneously.
- The kit features a "bolt-on" design for the bus side, providing a permanent and vibration-resistant mechanical bond. This allows for a much cleaner installation compared to traditional wire-looping methods, reducing the amount of internal "wire clutter" and improving airflow and heat dissipation within the enclosure.
- Manufactured from high-conductivity tin-plated copper, the QOMB1 offers excellent resistance to corrosion and oxidation. The plating ensures that the electrical resistance at the joint remains low over decades of service, preventing the "hot spots" that can lead to equipment failure or fire hazards in industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth127 mm
Complementary Attributes
- Line Rated Current
- 70 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Certificate Agency
- CSA, UL Listed
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Type
- QO
- Energy Efficiency Optimized
- False
- Mounting Mode
- plug-on
- Number Of Spaces
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 102 mm
- Short-circuit Current
- 10 kA
- Package Weight(Lbs)
- 49.895 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg Gauge14 AWG...4 AWG copper14 AWG...2 AWG aluminium
Device Compositiongrounding bar (ordered separately)
Load Center Typemain lugs
Number Of Circuits1
Phase1 phase 2 wires
Product Or Component Typemounting base
ReturnabilityYes
Tightening Torque35 lb.in, 14 AWG...4 AWG, copper35 lb.in, 14 AWG...2 AWG, aluminium
Height Nominal25 mm
[Ue] Rated Operational Voltage120 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase 2 wires
- Range Of Product
- QO
Product Or Component Typemounting base
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
