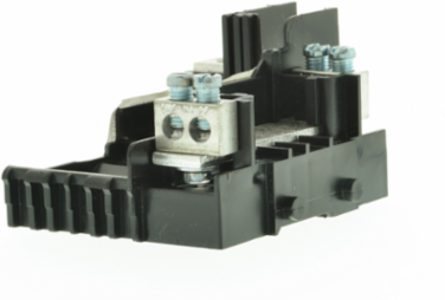

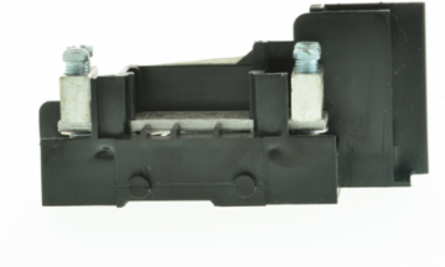

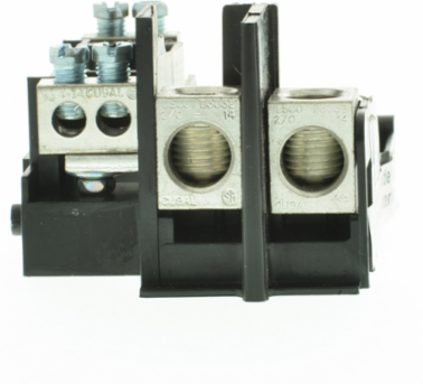

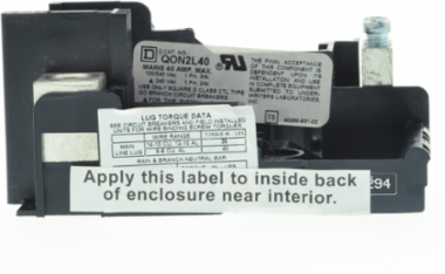

Square D QON2L40 Load center interior, QO, mounting base, 2 spaces, 40A main lugs, OEM
- MPN: QON2L40
- UPC: 785901804581
- PPN: SCH-QON2L40
CAD
$125.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QON OEM mounting bases are for the mounting of plug on QO, QO GFI, QO AFI and QO EPD circuit breakers. These OEM mounting bases are available in single and three phase versions. This QON OEM mounting base is for main lugs of 40 A at 120/240 VAC single phase. This unit provides 10 kA breaking capacity based on the circuit breakers installed. This mounting base has 2 spaces for 1 pole breakers. A neutral assembly is supplied with this OEM mounting base. The main breaker will accept 14 AWG to 6 AWG copper and 12 AWG to 6 AWG aluminum wire. The QON mounting base is UL component recognized.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth48 mm
Complementary Attributes
- Line Rated Current
- 40 A
Important Information Attributes
- Tightening Torque
- main lugs 35 N.m, 14 AWG...10 AWG, coppermain lugs 35 N.m, 12 AWG...10 AWG, aluminium, main lugs 40 N.m, 8 AWG...6 AWG, aluminium/copper
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Awg Gauge
- 14 AWG...6 AWG copper12 AWG...6 AWG aluminium
- Device Composition
- grounding bar (ordered separately)
- Load Center Type
- main lugs
- Number Of Circuits
- 2
- Phase
- 1 phase 3 wires
- Product Or Component Type
- mounting base
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 69 mm
- [Ue] Rated Operational Voltage
- 240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-07-14
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2436
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Circuit Breaker TypeQO
Energy Efficiency OptimizedFalse
Mounting Modeplug-on
Number Of Spaces2
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Sustainable PackagingNo
Pep CodeENVPEP2212001EN
Width Nominal107 mm
Short-circuit Current10 kA
Package Weight(Lbs)127.958 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP2212001EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212001EN
General Attributes
- Phase
- 1 phase 3 wires
- Range Of Product
- QO
Product Or Component Typemounting base
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
