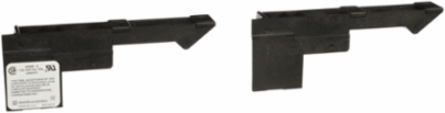

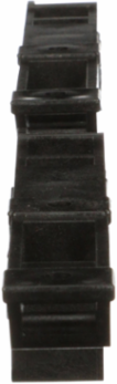

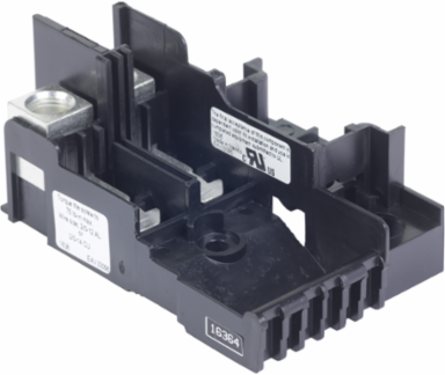

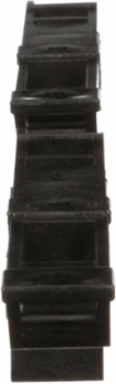

Schneider Electric QOMB2 QO Load Center Mounting Base, 2 Pole, 70A, 120/240VAC, CSA

MPN: QOMB2
UPC: 785901029823
PPN: SCH-QOMB2
UNSPSC: 39121101

$161.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 2 pole load center accessory is a mounting base rated at 70A at 120/240VAC. This product is CSA rated.

Features

Mounting base for QO Load centers
2 pole system at 70A
120/240VAC rating
Designed to satisfy individual requirements
CSA rated
Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Depth	19 mm

Complementary Attributes

Line Rated Current	70 A

Ue Rated Operational Voltage	120/240 V AC

Important Information Attributes

Persona Type Ids	EU, OM
Certificate Agency	CSA, UL Listed
Local Publishable Date	2026-07-14
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Circuit Breaker Type	QO
Energy Efficiency Optimized	False
Mounting Mode	plug-on
Number Of Spaces	2
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QO
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	120 mm
Customs Code	8538908160
Warranty In Months	18

Persona Type Names	End User, Original Equipment Manufacturer
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Awg Gauge	14 AWG...4 AWG copper14 AWG...2 AWG aluminium
Device Composition	grounding bar (ordered separately)
Load Center Type	main lugs
Number Of Circuits	2
Phase	1 phase 2 wires
Product Or Component Type	mounting base
Returnability	Yes
Tightening Torque	35 lb.in, 14 AWG...4 AWG, copper35 lb.in, 14 AWG...2 AWG, aluminium
Height Nominal	44 mm
Nbr. Of Units In Pkg.	1
Short Circuit Current	10 kA

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
