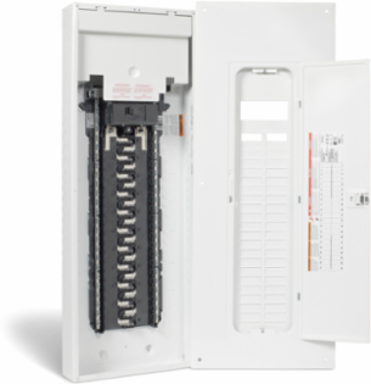

Schneider Electric CHOM4284M200GC Homeline Load Centre 1 Phase 42 Spaces 84 Circuits 200A
- MPN: CHOM4284M200GC
- UPC: 785901614869
- PPN: SCH-CHOM4284M200GC
CAD
$387.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 2A 12/24 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 42 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 25 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. CHOM Homeline load centers are CSA certified.
Features
- The CHOM4284M200GC is a high-capacity "42-Space, 84-Circuit" load center. This design allows you to install up to 42 standard breakers or a maximum of 84 circuits using tandem breakers, providing massive flexibility for large homes, basement suites, or residences with extensive smart-home automation and EV charging needs.
- This panel comes factory-installed with a 200-Amp main breaker, making it the industry standard for new residential construction. The 200A service ensures your home has the "headroom" to run high-demand appliances like electric ranges, heat pumps, and hot tubs simultaneously without the risk of tripping the main service entrance.
- The "GC" designation indicates this is a Value Pack specifically tailored for the Canadian market. It includes the 200A main breaker, the combination flush/surface cover, and a curated selection of "bonus" branch breakers to get your installation started immediately, offering significant cost savings over buying components individually.
- Featuring a solid copper bus bar, this Homeline panel offers superior electrical conductivity and heat dissipation compared to aluminum alternatives. The copper construction provides a more robust connection point for breakers, reducing the risk of terminal overheating and extending the overall lifespan of your electrical system.
- The unit features a Combination Cover that works for both surface-mount (basements/mechanical rooms) and flush-mount (finished hallways/utility rooms) applications. The enclosure includes "tangential" knockouts that eliminate the need for offset conduit bends, allowing for a cleaner, faster, and more professional-looking installation.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current22 kA
[In] Rated Current200 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 42
- Electrical Connection
- lugs
- Awg Gauge
- AWG 4...250 kcmil aluminum/copper
- Number Of Circuits
- 84
- Loadcentre Type
- Main Breaker
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces42
Device Compositiongrounding bar included (not installed)
Box Number12
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
