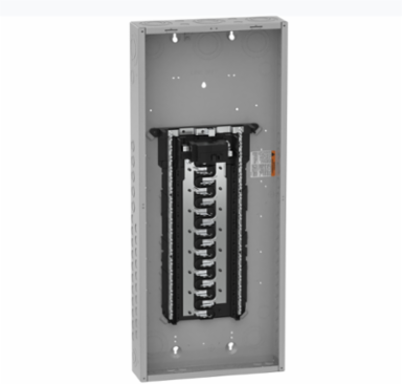

Schneider Electric CHOM3060M100B Homeline Load Centre 30 Spaces 60 Circuits 100A Main Breaker
- MPN: CHOM3060M100B
- UPC: 785901464099
- PPN: SCH-CHOM3060M100B
CAD
$140.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a 2 pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 16 spaces in a NEMA 1 indoor enclosure. The surface cover is to be ordered separately. The electrical connections are box lugs. The box lugs will accept a wire range 6 AWG to 2/0 AWG aluminum or copper wire. This Homeline load center has a height of 33.78 inches, a width of 14.25 inches, and depth of 3.75 inches. Homeline load centers are CSA Listed. 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current10 kA
[In] Rated Current100 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- grey
- Height
- 33.75 in
- Material
- tin plated aluminum: busbar
- Enclosure Material
- welded sheet steel
- Wiring Configuration
- 3-wire
- Depth
- 3.75 in
- Number Of Spaces
- 30
- Device Composition
- grounding bar included (not installed)
- Box Number
- 10
Cover Typecombination flush/surface cover
Number Of Tandem Circuit Breakers30
Electrical Connectionlugs
Awg GaugeAWG 6...AWG 2/0 aluminum/copper
Width14.25 in
Number Of Circuits60
Loadcentre TypeMain Breaker
Network Number Of Phases1 phase
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
